5.7 Connecting cables
Information:
B&R generally recommends connecting swing
arm devices to the Automation PC via SDL4 in-
stead of SDL. The Cat 6 / Cat 7 cables used with
SDL4 are much easier to install and connect.

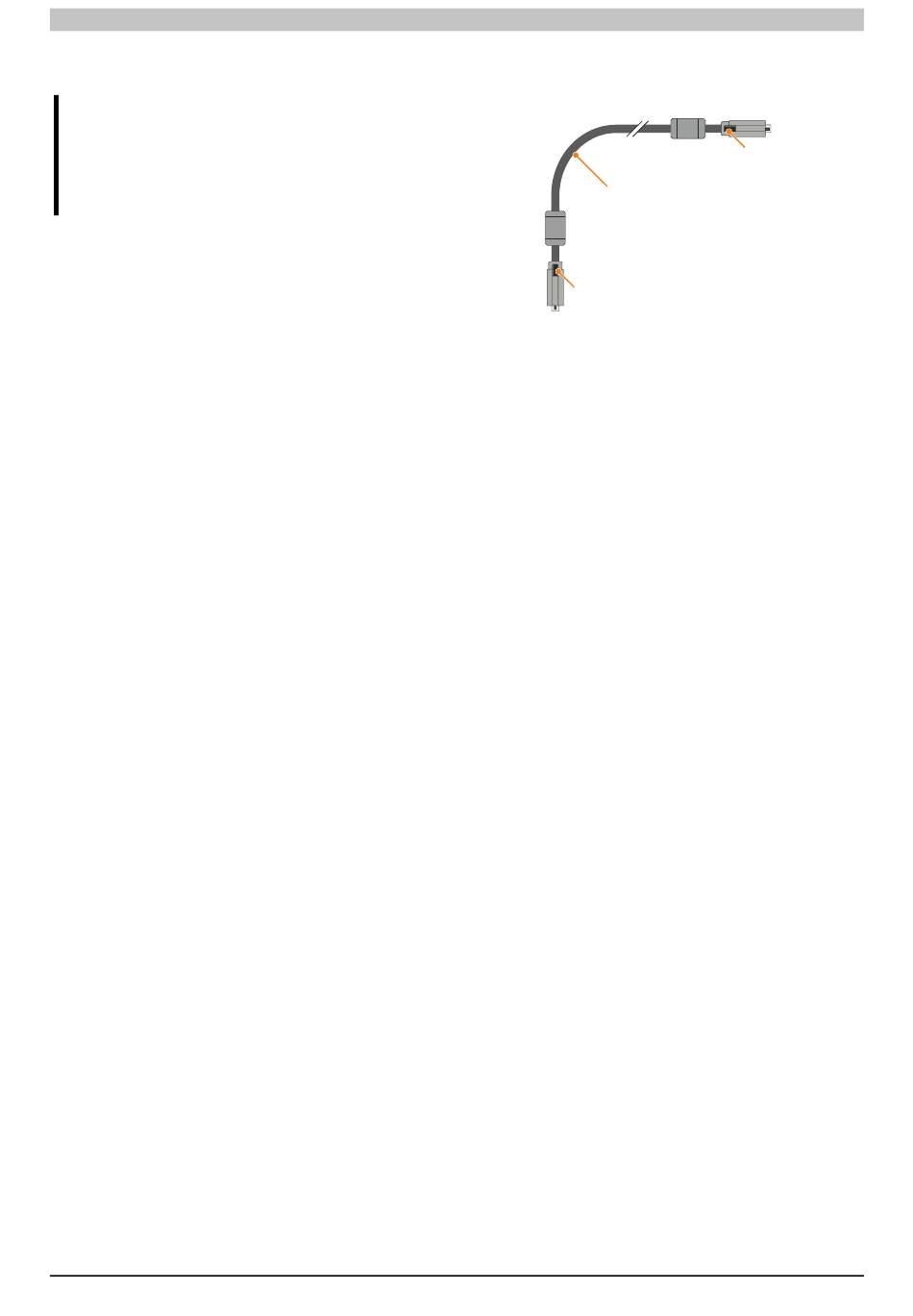

When connecting or installing cables, the bend radius
specification must be observed. For this specification,
see the technical data of the respective cable.
The maximum tightening torque of the locating screws is
0.5 Nm.
5.7.1 Wiring with SDL cables
It is possible to use 5CASDL.0xxx-00 SDL cables, 5CASDL.0xxx-01 SDL cables with 45° connector and
5CASDL.0xxx-03 SDL flex cables for the Automation Panel 5000 with SDL receiver.
Automation Panel 5000 User's manual V2.11
1
2
1) Bend radius
2) Locating screws
