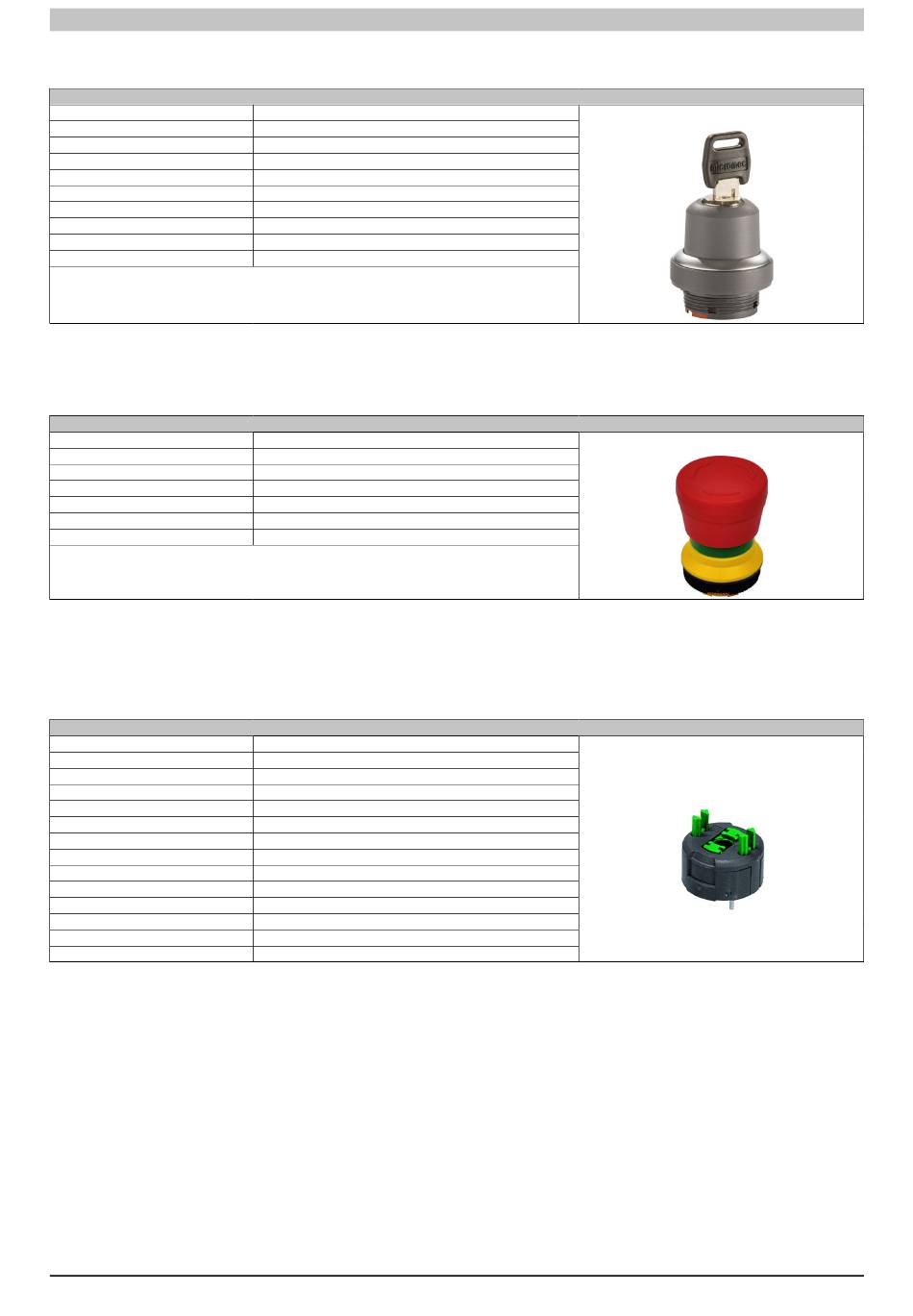

D.5 Key switch RAFIX 22 FS+, 1.30.255.222/0000
Manufacturer
Type
Manufacturer number
Contact function
Number of possible closings
Angle of rotation
Key removal position
Service life (switching cycles)
B10 value (switching cycles)
Actuation torque
D.6 Emergency stop RAFIX 22 FS+ "Plus 1", 1.30.273.512/0300
Manufacturer
Type
Manufacturer number
Contact function
Resetting
Service life (switching cycles)
B10 value (switching cycles)
D.7 Switching element RAFIX 22 FS universal, 1.20.126.005/0000
The switching element is used for the pushbuttons, the selector switch and the key switch.
Manufacturer
Type
Manufacturer number
Contact system
Contact material
Contacts
Connection
Service life (switching cycles)
B10 value (switching cycles)
AC/DC operating voltage
AC/DC operating voltage
AC/DC operating current
AC/DC operating current
Switching capacity
Automation Panel 5000 User's manual V2.11
Key switch 1.30.255.222/0000
RAFI
RAFIX 22 FS+
1.30.255.222/0000
Maintained
500
1 x 90°, L form
0+1
50,000 maintained / 30,000 key removal switching cycles
65,000 maintained / 40,000 key removal switching cycles
Max. 1.3 Nm
Table 83: Key switch 1.30.255.222/0000
Emergency stop 1.30.273.512/0300
RAFI
RAFIX 22 FS+ emergency stop button "Plus 1"
1.30.273.512/0300
Maintained
By rotating to the right
50,000
65,000
Table 84: Emergency stop 1.30.273.512/0300
Switching element 1.20.126.005/0000
RAFI
RAFIX 22 FS+ - universal, 2 S
1.20.126.005/0000
Self-cleaning bridge contact
Au
2 normally open contacts
THT soldered connection with anti-rotation element
1,000,000 at 10 mA / 24 VDC
1,300,000
Min. 1 V
Max. 35 V
Min. 1 mA
Max. 100 mA
Max. 250 mW
Table 85: Switching element 1.20.126.005/0000
