5Ap5230.215I-000 - B&R Automation Panel 5000 User Manual

Technical data

4.2.1.14 5AP5230.215I-000

4.2.1.14.1 General information
• 21.5" TFT FHD color display
• Multi-touch (PCT)
• Possible to install expansion unit
• Flexible swing arm mounting or VESA
• IP65 protection with mounting unit 5ACCMA00.000x-000
• IP54 protection with mounting unit 5ACCMA00.010x-000
• IP10 protection with mounting unit 5ACCMA01.0100-000
4.2.1.14.2 Order data
Model number Short description
Panels
5AP5230.215I-000 Automation Panel 21.5" Full HD TFT - 1920 x 1080 pixels (16:9)
- Multi-touch (projected capacitive) - Swing arm mounting - Por-
trait format - Expansion option - For PPC2100 / PPC2200 / link
modules
Optional accessories
Expansion units
5ACCKP00.215I-000 AP5000 swing arm expansion option - Expansion cover - For
switching elements - 7x cutouts for 22.3 mm switching elements
- For panel 5AP5230.215I-000
5ACCKP01.215I-000 AP5000 swing arm expansion option - Expansion unit - 1x
emergency stop - 2x pushbutton (red and green) - 1x selec-
tor switch - 1x key switch - 1x front USB interface - For panel
5AP5230.215I-000
5ACCKP04.215I-000 AP5000 swing arm expansion option - Expansion unit - 1x emer-
gency stop - 3x pushbutton (red, green, blue) - 1x key switch -
1x front USB interface - For panel 5AP5230.215I-000
Flange
5ACCFL00.0000-000 AP5000 flange - Swing arm rotary flange - For swing arm mount-
ing unit
5ACCFL00.0100-000 AP5000 flange - Swivel-tilt flange for swing arm - For swing arm
mounting unit
5ACCFL00.0200-000 AP5000 flange - Swing arm flange adapter - For Rittal - For
swing arm mounting unit
Handles
5ACCHD01.215I-000 AP5000 swing arm handles - For panel 5AP5230.215I-000
Mounting units
5ACCMA00.0000-000 AP5000 swing arm mounting unit
5ACCMA00.0001-000 AP5000 swing arm mounting unit - 1x rear USB interface
5ACCMA00.0002-000 AP5000 swing arm mounting unit - 2x rear USB interface
5ACCMA00.0100-000 HMI mounting unit VESA IP54 - Leak tightness is only provided
with suitable cable grommets.
5ACCMA00.0101-000 HMI mounting unit VESA IP54 w/USB - Leak tightness is only
provided with suitable cable grommets.
5ACCMA01.0100-000 AP5000
5AP5120.*-000 - IP10 with 5AP5130.*-000, 5AP5230.*-000
4.2.1.14.3 Technical data
Information:
The following specified characteristic data, features and limit values are only valid for these individual
components and may differ from those of the complete system. The data specified for the complete
system applies to the complete system in which this individual component is used, for example.
Model number
General information
B&R ID code
Certifications
CE
UL
EAC
Display
Type
100
VESA mounting unit IP10/IP20

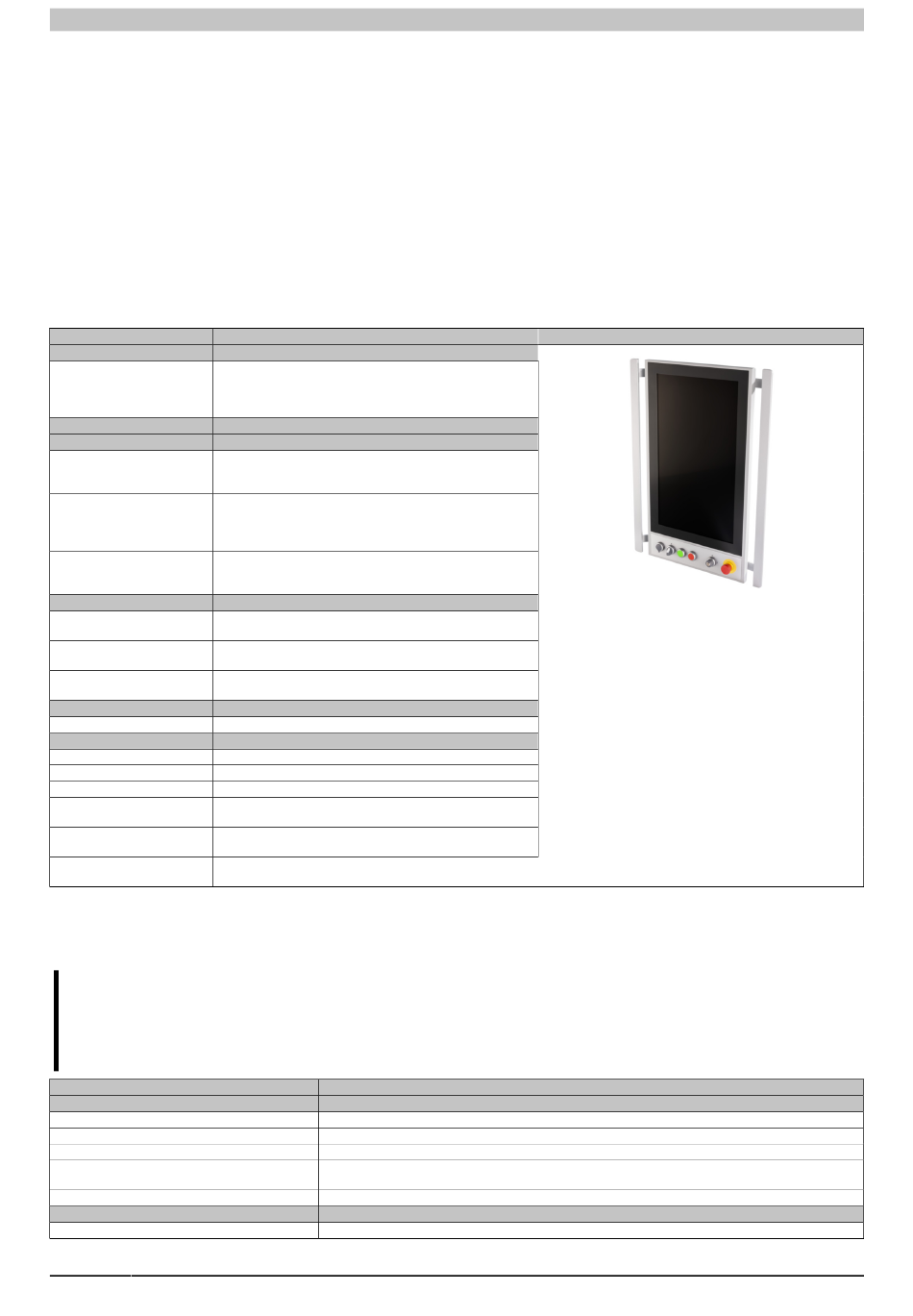

Table 29: 5AP5230.215I-000 - Order data
Table 30: 5AP5230.215I-000 - Technical data
- IP20 with
5AP5230.215I-000
0xE9F8
Yes
cULus E115267
Industrial control equipment
Yes
TFT color
Automation Panel 5000 User's manual V2.11
Figure
