B&R Automation Panel 5000 User Manual page 37

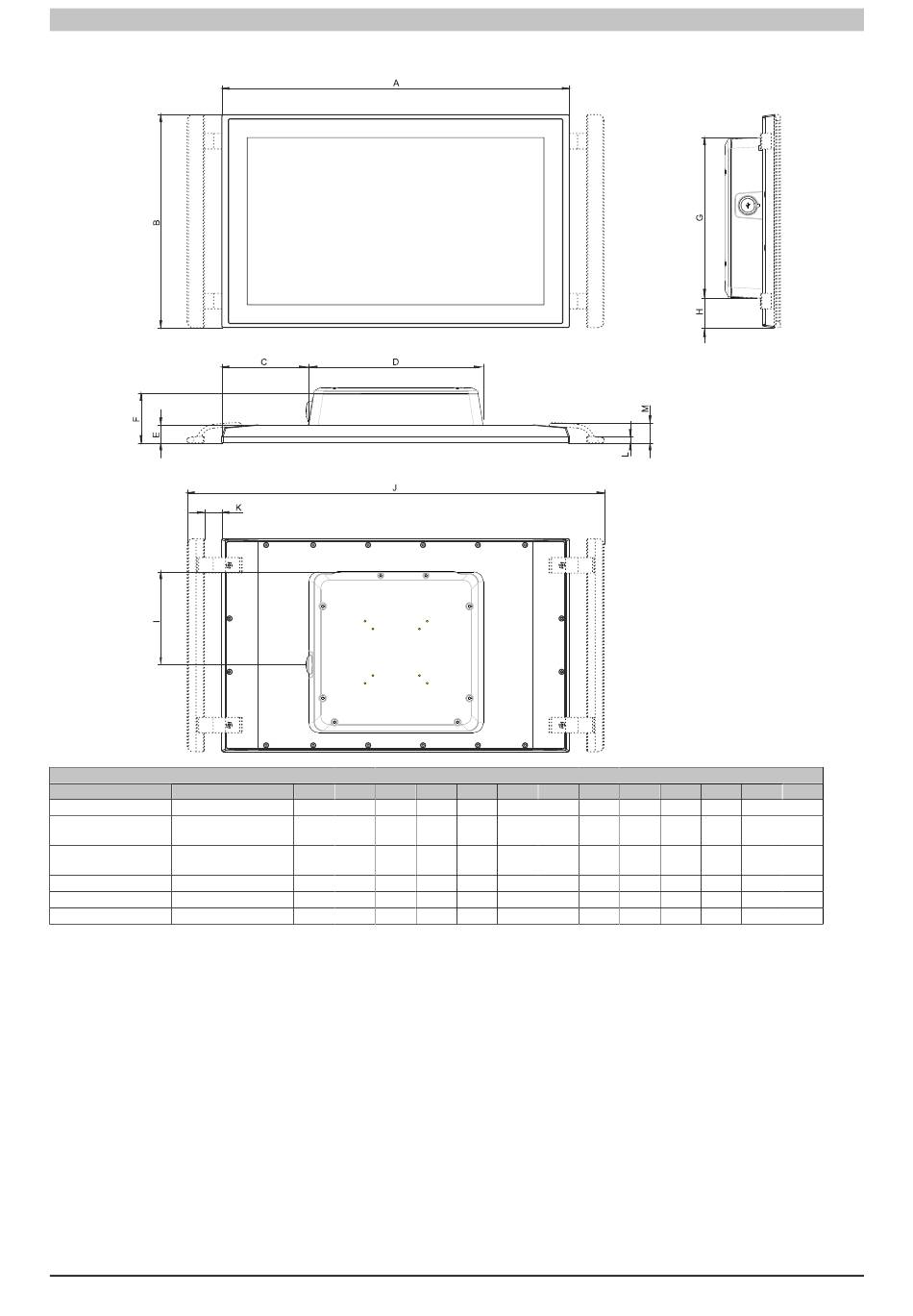

AP5120/5130 IP54 VESA connection - Dimensions
Type Order number
15" single-touch 5AP5120.1505-000
15.6" multi-touch 5AP5130.156B-000
5AP5130.156C-000
18.5" multi-touch 5AP5130.185B-000
5AP5130.185C-000
19" single-touch 5AP5120.1906-000
21.5" multi-touch 5AP5130.215C-000
24.0" multi-touch 5AP5130.240C-000
Automation Panel 5000 User's manual V2.11
Panels
A B C D E
389 299 54.5 280 28
433 269.5 76.5 280 29
494 306 107 280 29
461.2 372 90.6 280 28
560.5 344 140.3 280 29
617.5 375 168.8 280 29
F G H I J
88.3 259 20 149.5 501
89.3 259 5.3 149.5 545
89.3 259 23.5 149.5 606
89.3 259 56.5 149.5 573.2
89.3 259 42.5 149.5 672.5
89.3 259 58 149.5 729.5
Technical data
K L M
28 10 32.2
28 10 32.2
28 10 32.2
28 10 32.2
28 10 32.2
28 10 32.2
37
