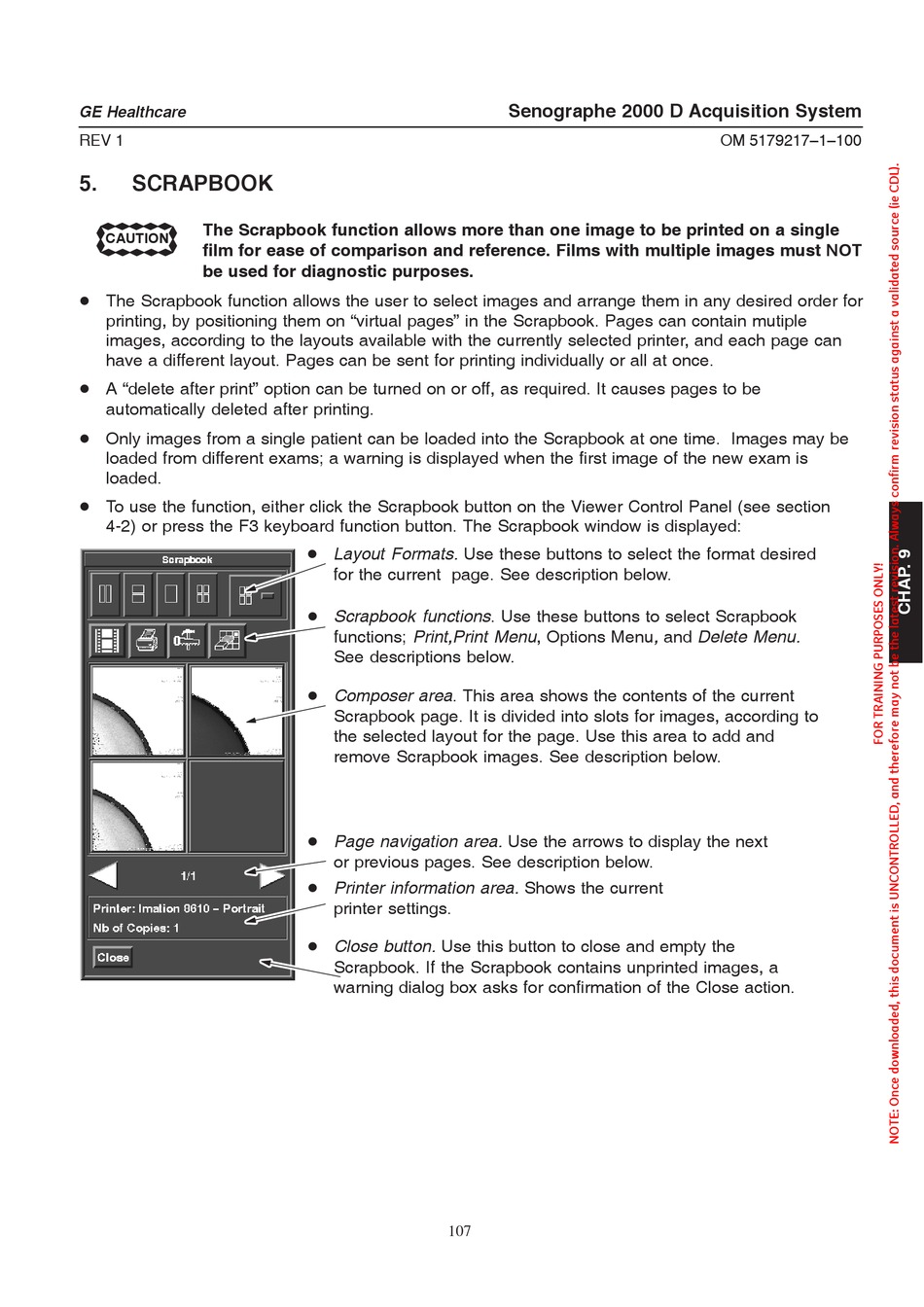

5. SCRAPBOOK
The Scrapbook function allows more than one image to be printed on a single
CAUTION
film for ease of comparison and reference. Films with multiple images must NOT
be used for diagnostic purposes.
D The Scrapbook function allows the user to select images and arrange them in any desired order for
printing, by positioning them on "virtual pages" in the Scrapbook. Pages can contain mutiple
images, according to the layouts available with the currently selected printer, and each page can
have a different layout. Pages can be sent for printing individually or all at once.
D A "delete after print" option can be turned on or off, as required. It causes pages to be
automatically deleted after printing.
D Only images from a single patient can be loaded into the Scrapbook at one time. Images may be
loaded from different exams; a warning is displayed when the first image of the new exam is
loaded.
D To use the function, either click the Scrapbook button on the Viewer Control Panel (see section
4-2) or press the F3 keyboard function button. The Scrapbook window is displayed:
D Layout Formats. Use these buttons to select the format desired
for the current page. See description below.
D Scrapbook functions. Use these buttons to select Scrapbook
functions; Print,Print Menu, Options Menu, and Delete Menu.
See descriptions below.
D Composer area. This area shows the contents of the current
Scrapbook page. It is divided into slots for images, according to
the selected layout for the page. Use this area to add and
remove Scrapbook images. See description below.
D Page navigation area. Use the arrows to display the next
or previous pages. See description below.
D Printer information area. Shows the current
printer settings.
D Close button. Use this button to close and empty the
Scrapbook. If the Scrapbook contains unprinted images, a
warning dialog box asks for confirmation of the Close action.
