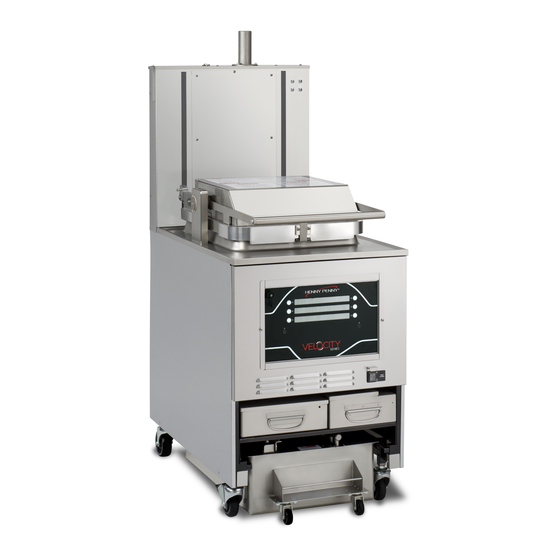

Henny Penny Velocity Series Operation Manual

Hide thumbs Also See for Velocity Series:

Advertisement

Quick Links

Download this manual

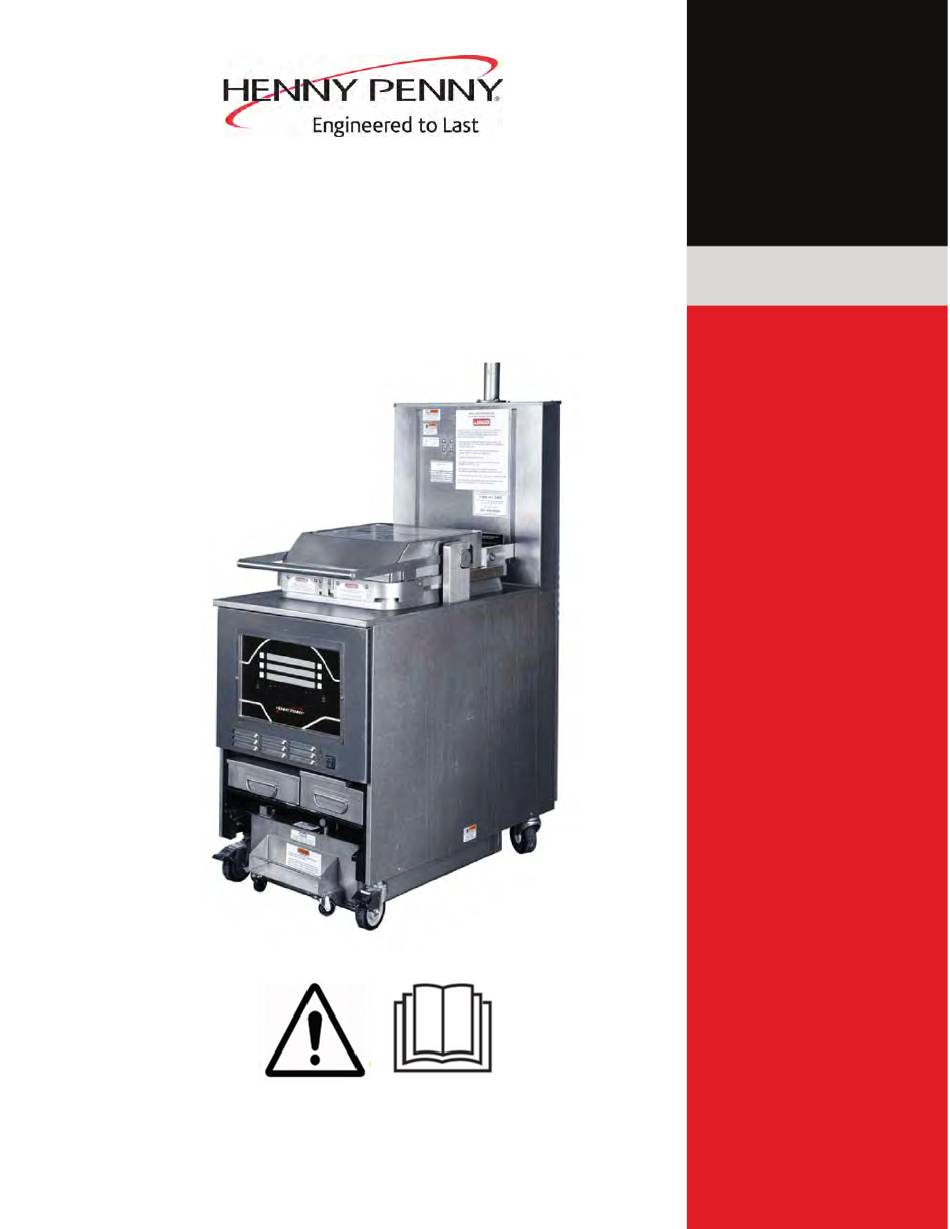

OPERATION
MANUAL
V V e e l l o o c c i i t t y y S S e e r r i i e e s s ™ ™
P P r r e e s s s s u u r r e e
PXE-100
FM05-108H
