Deutschmann Automation GmbH & Co. KG
19 Commissioning guide
19.1 Note
Only trained personnel following the safety regulations may commission the UNIGATE
19.2 Components
You will require the following components to commission the UNIGATE
®
•
UNIGATE
•
Connection cable from gateway to the process
•
Connector for PROFINET connection to the Gateway
•
Ethernet cable (this cable is generally available on site!)
•
10..33 V DC power supply (DIN 19240)
•
Type file or GSD file (that is based on the XML-oriented Standard GSDML) and user manual (a
sample file as well as the user manual can be ordered separately or downloaded free of charge
from our homepage at www.deutschmann.de).
19.3 Installation
®
The UNIGATE
CX-C4Map-PN module features protection type IP20 and is thus suitable for
switch cabinet use. The device is designed for snapping onto a 35 mm DIN-rail.

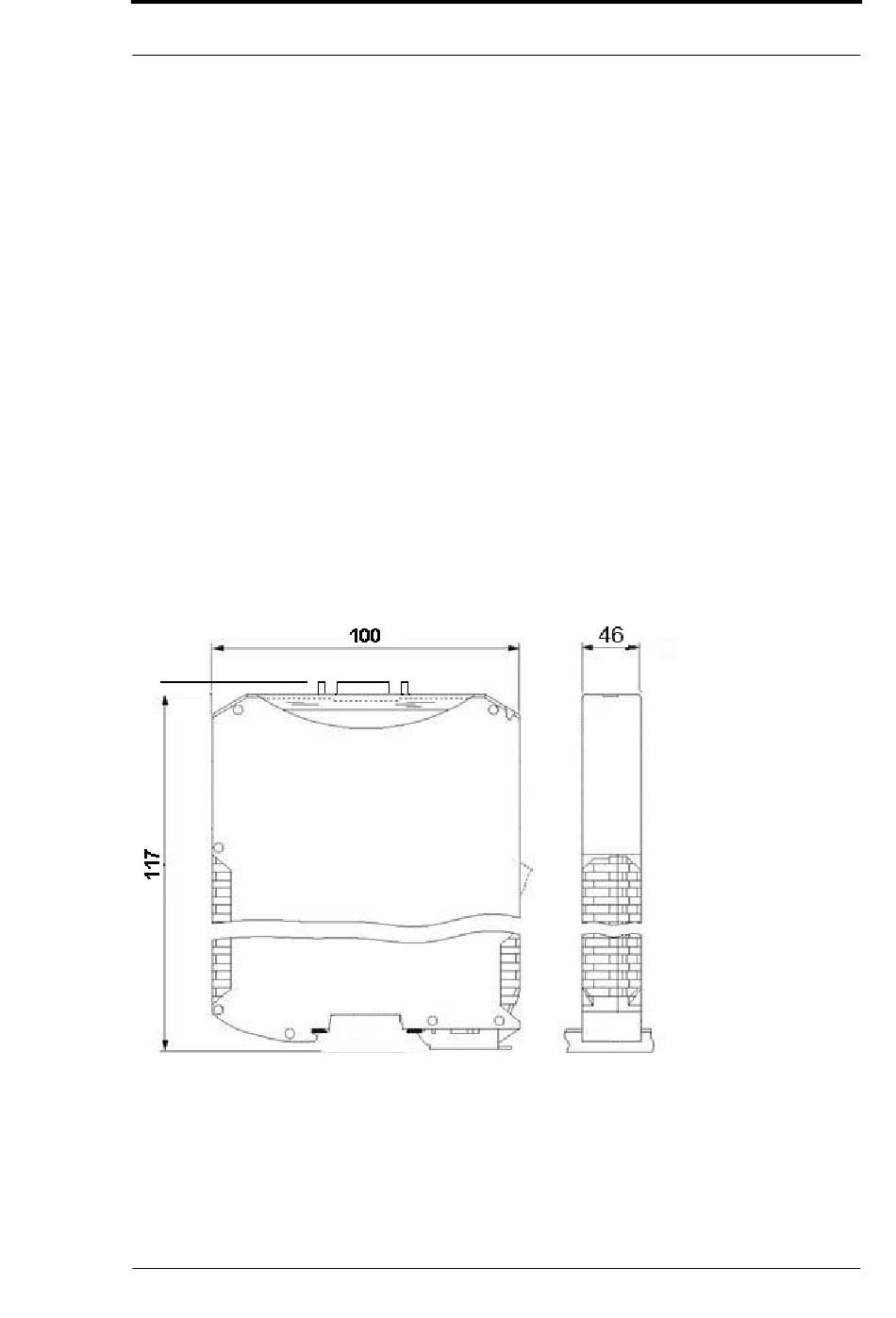

19.4 Dimensional drawing UNIGATE
19.5 Commissioning
It is essential that you perform the following steps during commissioning in order to ensure that
the module operates correctly:
29.9.20
Fieldbus-Gateway UNIGATE
®
CX-PN 2PortC4Map
®
CX C4Map - PROFINET V. 1.0
Commissioning guide
®
.
®
:
49
