Commissioning guide
16 Commissioning guide
16.1 Note
Only trained personnel following the safety regulations may commission the UNIGATE
16.2 Components
You will require the following components to commission the UNIGATE
®
•
UNIGATE
•
Connection cable from gateway to the process
•
Connector for CANopen
®
•
CANopen
cable (generally this cable is already installed on site!)
•
10..33 V DC power supply (DIN 19240)
•
Type file or EDS file and user manual (a sample EDS file as well as the user manual can be
ordered separately or downloaded free of charge from our homepage at
www.deutschmann.de).
16.3 Installation
®
The UNIGATE
CM - CO module features protection type IP20 and is thus suitable for switch
cabinet use. The device is designed for snapping onto a 35 mm DIN-rail.

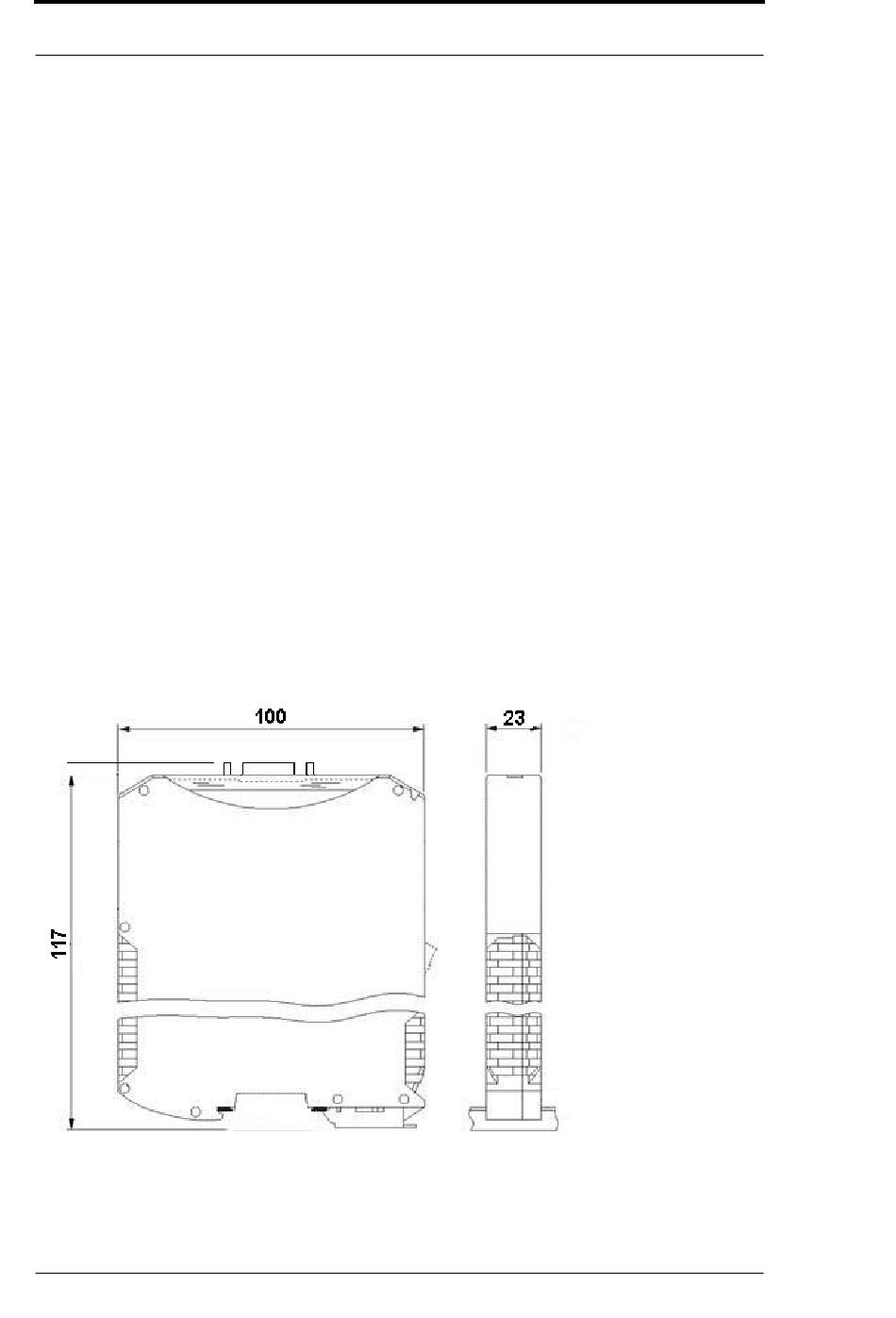

16.4 Dimensional drawing UNIGATE
44
UNIGATE
®
connection to the Gateway
®
fieldbus gateway UNIGATE
Deutschmann Automation GmbH & Co. KG
®
:
®
CM - CANopen
®
CM - CANopen V. 1.4
®
.
23.6.17
