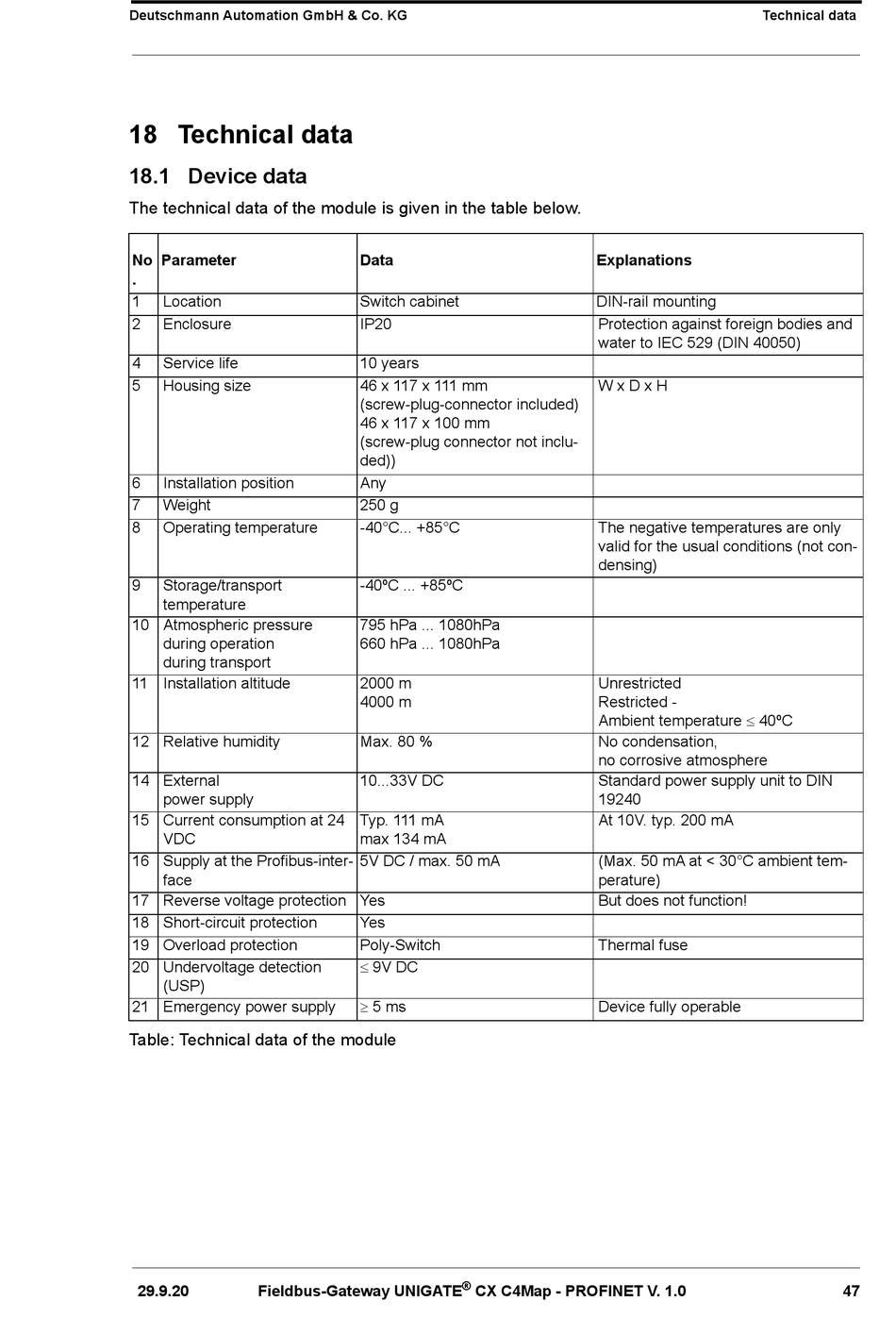

18 Technical data

18.1 Device data

The technical data of the module is given in the table below.
No Parameter
.
1 Location
2 Enclosure
4 Service life
5 Housing size
6 Installation position
7 Weight
8 Operating temperature
9 Storage/transport
temperature
10 Atmospheric pressure
during operation
during transport
11 Installation altitude
12 Relative humidity
14 External
power supply
15 Current consumption at 24
VDC
16 Supply at the Profibus-inter-
face
17 Reverse voltage protection Yes
18 Short-circuit protection
19 Overload protection
20 Undervoltage detection
(USP)
21 Emergency power supply
Table: Technical data of the module
29.9.20 Fieldbus-Gateway UNIGATE
Data
Switch cabinet
IP20
10 years
46 x 117 x 111 mm
(screw-plug-connector included)
46 x 117 x 100 mm
(screw-plug connector not inclu-
ded))
Any
250 g
-40°C... +85°C
-40ºC ... +85ºC
795 hPa ... 1080hPa
660 hPa ... 1080hPa
2000 m
4000 m
Max. 80 %
10...33V DC
Typ. 111 mA
max 134 mA
5V DC / max. 50 mA
Yes
Poly-Switch
 9V DC
 5 ms
®
CX C4Map - PROFINET V. 1.0
Technical data
Explanations
DIN-rail mounting
Protection against foreign bodies and
water to IEC 529 (DIN 40050)
W x D x H
The negative temperatures are only
valid for the usual conditions (not con-
densing)
Unrestricted
Restricted -
Ambient temperature  40ºC
No condensation,
no corrosive atmosphere
Standard power supply unit to DIN
19240
At 10V. typ. 200 mA
(Max. 50 mA at < 30°C ambient tem-
perature)
But does not function!
Thermal fuse
Device fully operable
