16 CANopen

16.1 Description CANopen

This specification is based on the CiA
®
CANopen supports the Standard CAN-frame with 11-bit Identifier.
It is not required to support the extended frame with 29-bit Identifier.

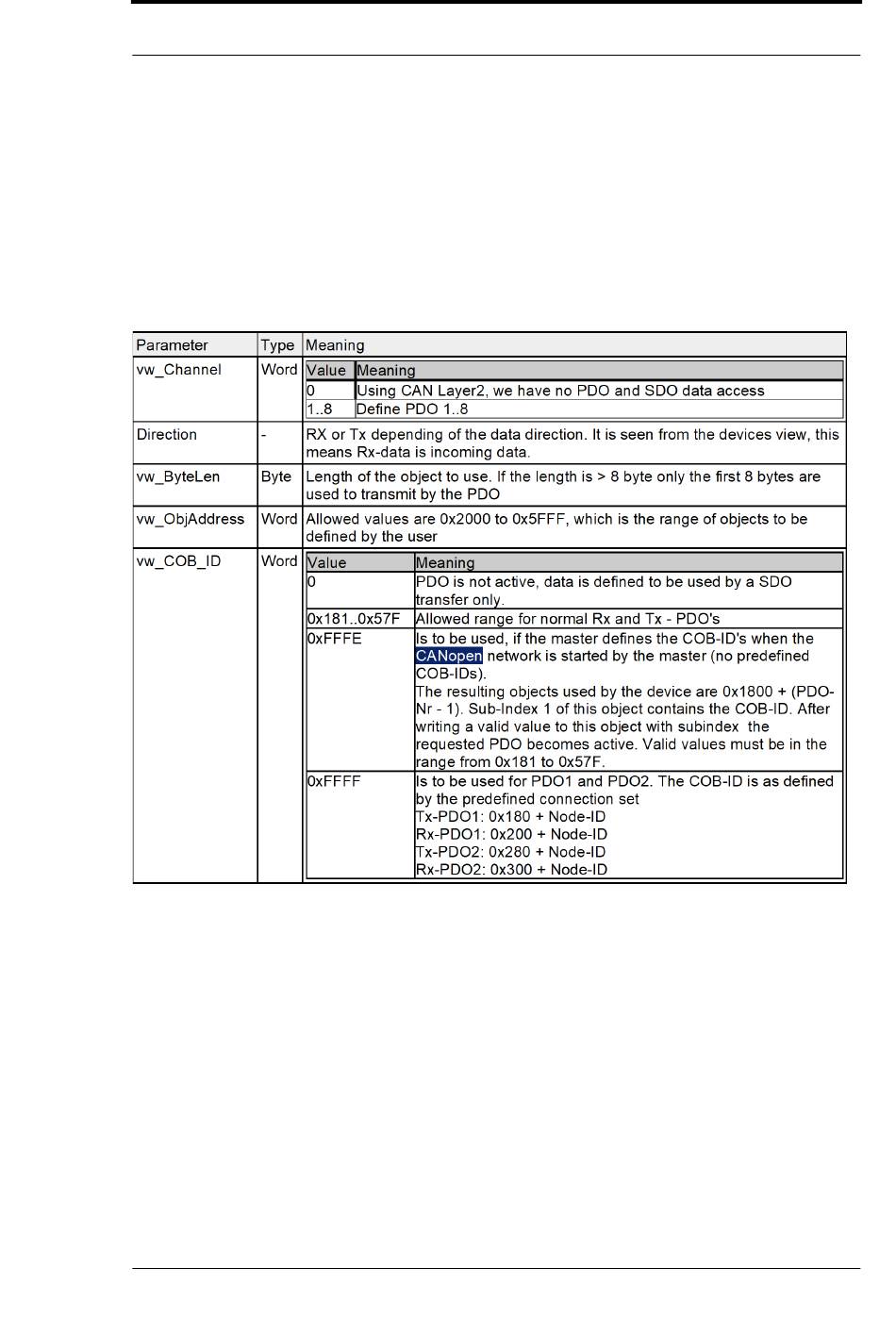

Benutzen Sie folgende Werte als Parameter:
®
16.1.1 CANopen
Additional supported functions:
• Heartbeat
• Dynamic mapping
• Onswich message
The following example can be found in the file folder "example" after the installation of the soft-
ware "Protocol Developer" (this example gives a detailed description of the initialization):
• Example_CO_V4.dss
®
At CANopen V4 the following fieldbus-specific Scripts are supported:
29.9.20 Fieldbus-Gateway UNIGATE
®
®
Draft Standard 301 (DS301).
V4
®
CX C4Map - PROFINET V. 1.0
CANopen®
