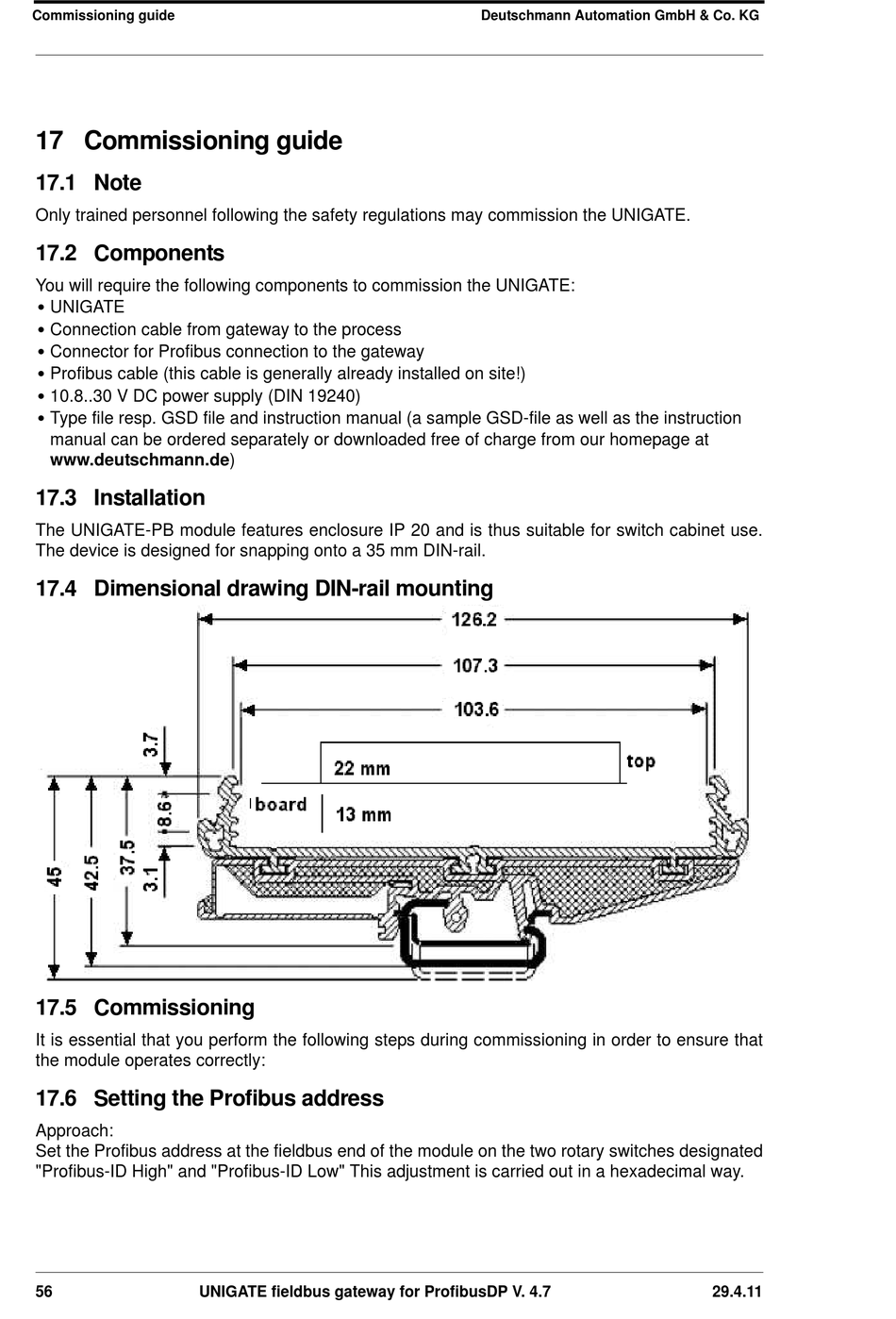

Commissioning guide
17 Commissioning guide
17.1 Note
Only trained personnel following the safety regulations may commission the UNIGATE.
17.2 Components
You will require the following components to commission the UNIGATE:
UNIGATE
•
Connection cable from gateway to the process
•
•
Connector for Profibus connection to the gateway
Profibus cable (this cable is generally already installed on site!)
•
•
10.8..30 V DC power supply (DIN 19240)
Type file resp. GSD file and instruction manual (a sample GSD-file as well as the instruction
•
manual can be ordered separately or downloaded free of charge from our homepage at
www.deutschmann.de)
17.3 Installation
The UNIGATE-PB module features enclosure IP 20 and is thus suitable for switch cabinet use.
The device is designed for snapping onto a 35 mm DIN-rail.
17.4 Dimensional drawing DIN-rail mounting
17.5 Commissioning
It is essential that you perform the following steps during commissioning in order to ensure that
the module operates correctly:
17.6 Setting the Profibus address
Approach:
Set the Profibus address at the fieldbus end of the module on the two rotary switches designated
"Profibus-ID High" and "Profibus-ID Low" This adjustment is carried out in a hexadecimal way.
