Deutschmann Automation GmbH & Co. KG
12 Hardware ports, switches and LEDs PROFINET

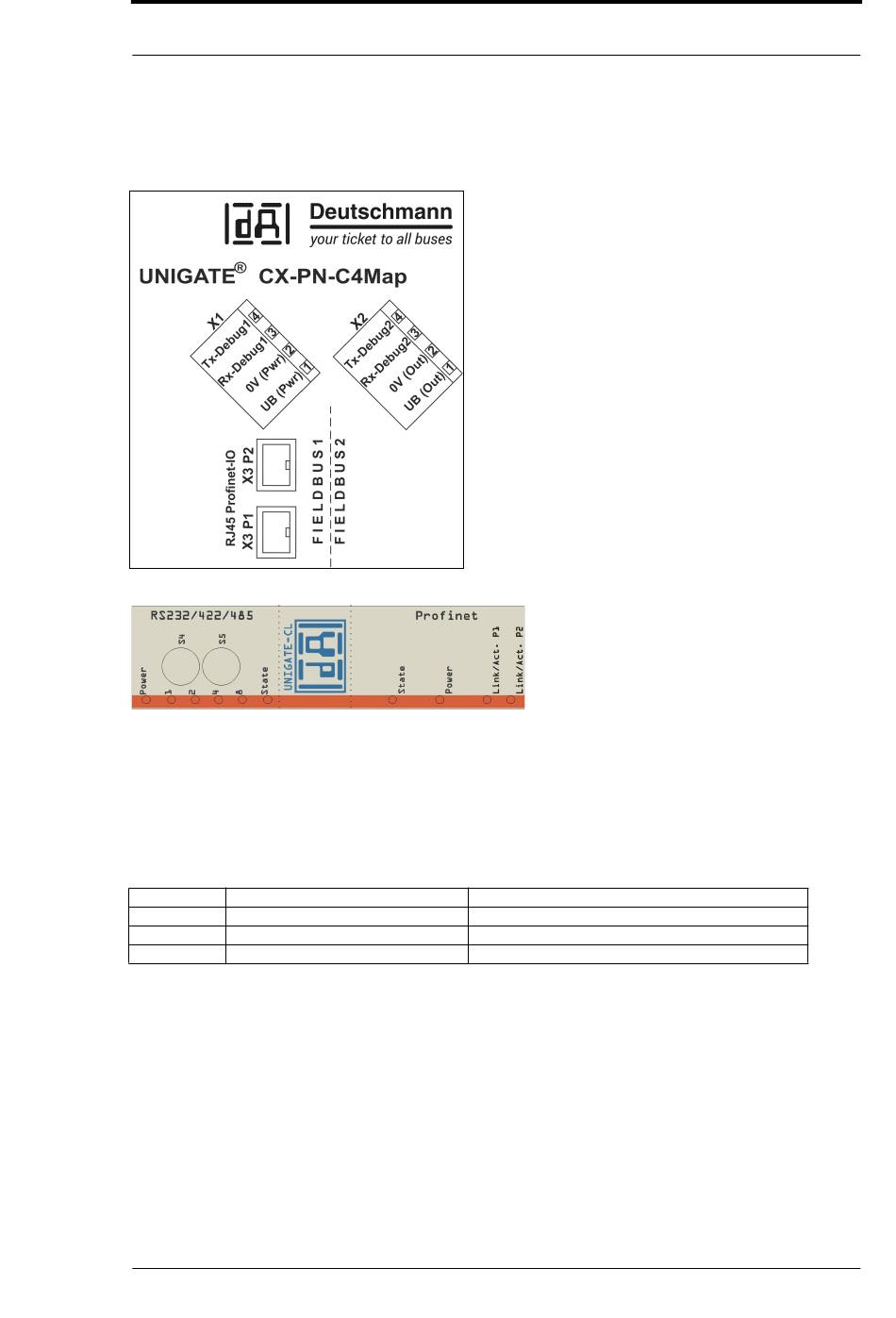

12.1 Device labeling
Picture 1: Terminal labeling and termination
Picture 2: Front panel: Rotary switches, LEDs
12.1.1 Connectors
12.1.1.1 Connector service interface
The service RS232 interface is available on the plug concealed on the top of the device.
Pin assignment (3-pin screw-type plug connector)
Pin No.
Name
1
Rx 232
2
Tx 232
3
AP-GND
29.9.20
Fieldbus-Gateway UNIGATE
Hardware ports, switches and LEDs PROFINET
Function
Receive signal
Transmit signal
Application Ground
®
CX C4Map - PROFINET V. 1.0
33
