DataCard ImageCard User Manual page 82

Maintaining the printer
5
6
7
8
9
10 Power on the printer.
11 Print a card to verify the quality of printing. You can print a
User's Guide for the Magna™ Class Printer

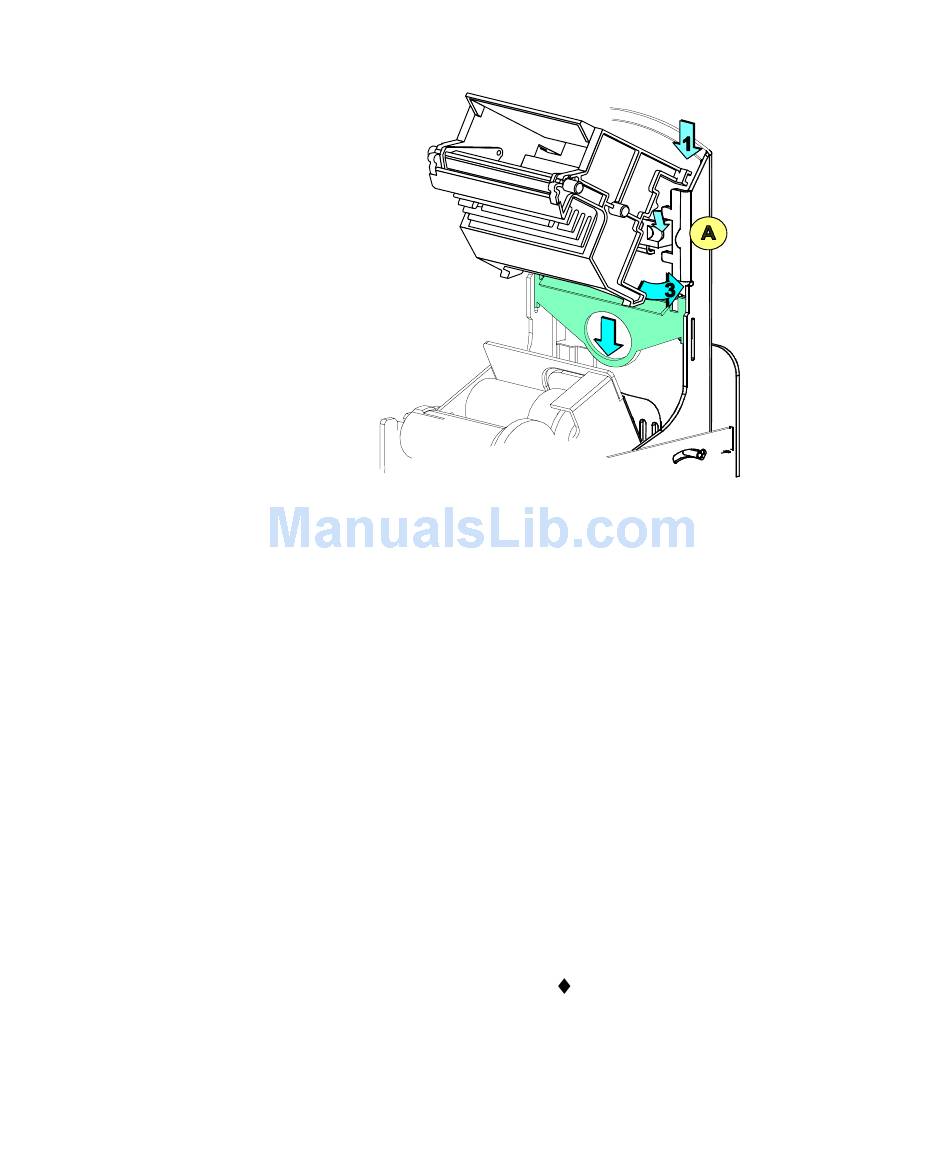

Figure 4-12: Replace the printhead cartridge
Clean the printhead. Move the cleaning pen up and down along
the length of the printhead edge. Be sure to completely clean the
rounded edge of the printhead.
Close the swing arm, pressing it down until the push latch clicks
into place.
Gently pull the excess printhead cartridge cable out of the top of
the swing arm.
Remove the ESD strap.
To close the cover, lift the top slightly. Move the support up so it is
parallel with the hinges and lower the cover.
Windows test page or a card using your card creation application.
If card quality is still inadequate, see
page 6-1.
2
"Troubleshooting" on
4-13
