Overview

Back of the printer

Figure 1-5
Find the following on the back of the printer:
ECP parallel port
Use the ECP parallel port to connect the printer's interface cable to
the PC.
Power button
Use the power button to power on or power off the printer.
Power receptacle
This is the receptacle for connecting the power cable.
Smart card serial port(s)
On printers equipped with the smart card option, use these
connectors for the serial cable from the PC or contact station that
carries the data to encode on the smart card chip.
User's Guide for the Magna™ Class Printer
shows the back of the printer:
ECP parallel port
USB port (for future use)
Contactless smart card serial port
Contact smart card serial port

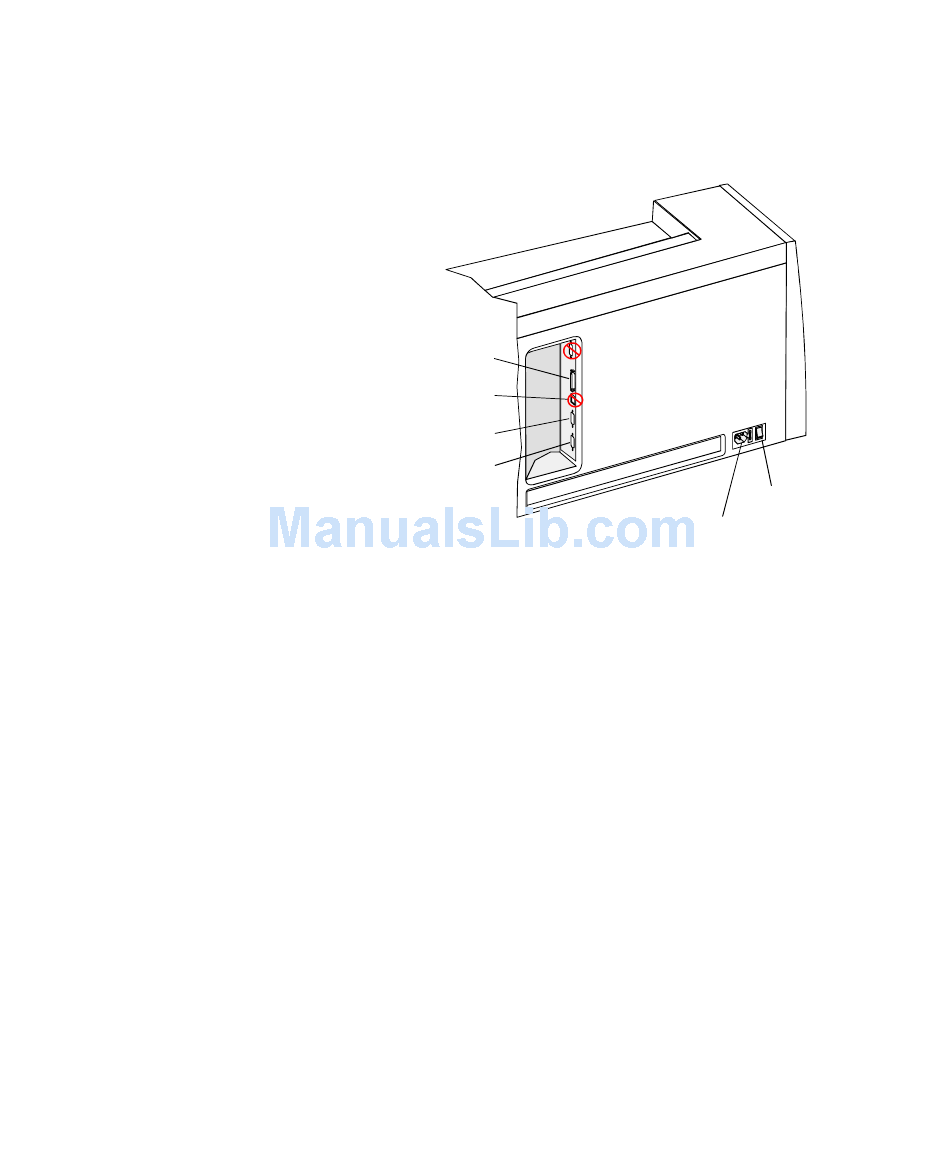

Figure 1-5: The back of the printer
1-9
Power button
Power receptacle
