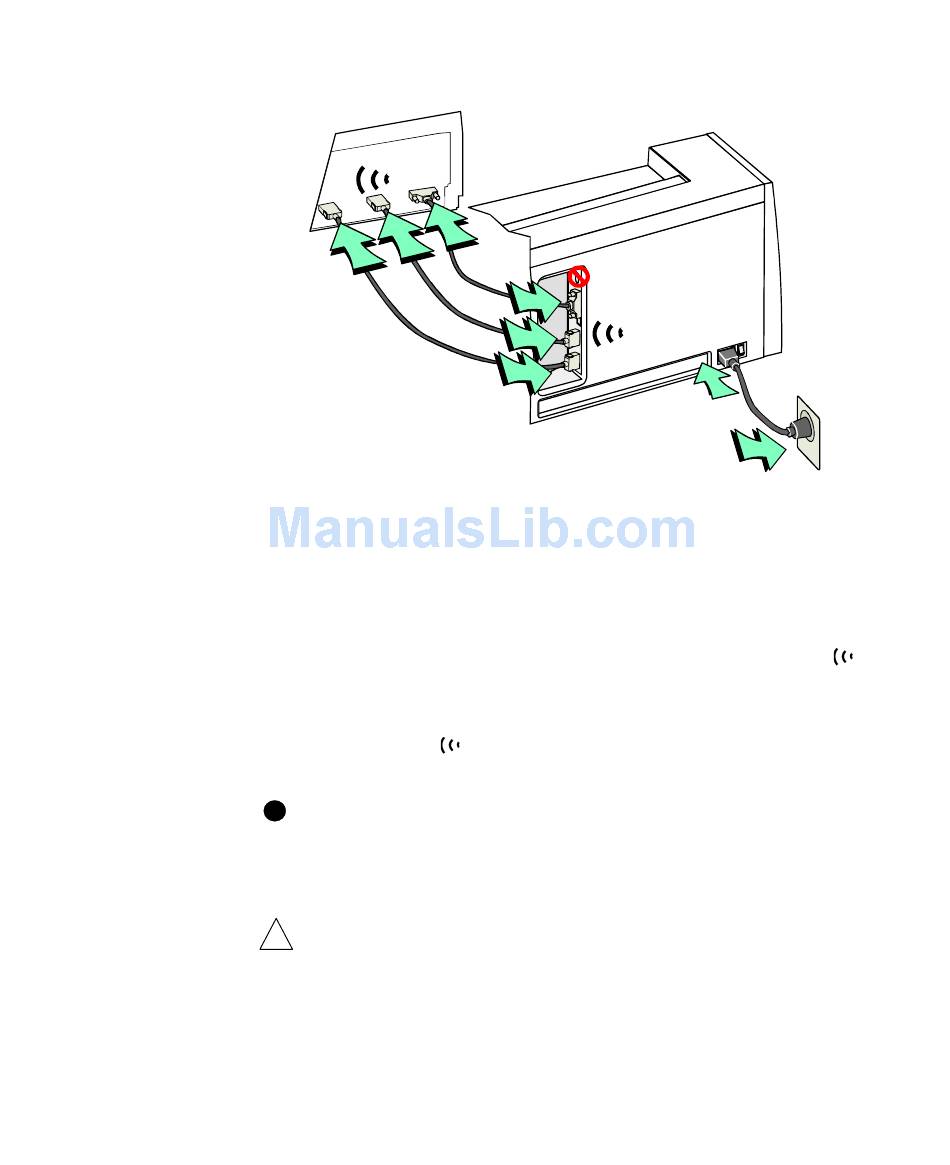

Figure 2-7: Connect the printer cables
If your printer has a smart card module, the ports to use
correspond to the module installed:
– The lower port (step 3 in
card module or a contact station.
– The upper port (step 2 in
module.
– Both ports are installed for a module containing both
contactless
port).
i
If the printer includes a smart card module, the printer's smart
card serial port is connected to the PC using a smart card serial
cable. The cable must be a shielded DB9 serial cable, up to a
maximum of 3 meters long.
!
If the PC has more than one serial port, attach the serial cable to
the serial port for the smart card application. See information with
your smart card application for the correct port to use.
Verify that serial port settings are correct using the steps in
settings" on page
1
2
3
Figure 2-7) is for a contact smart
Figure 2-7) is for a contactless
(upper port) and contact couplers (lower
C-1.
