Overlay cartridge
The overlay cartridge part number is 547472-003.
Fuse
The fuse, located in the power receptacle, is part number 804960-
017.
i
User's Guide for the Magna™ Class Printer

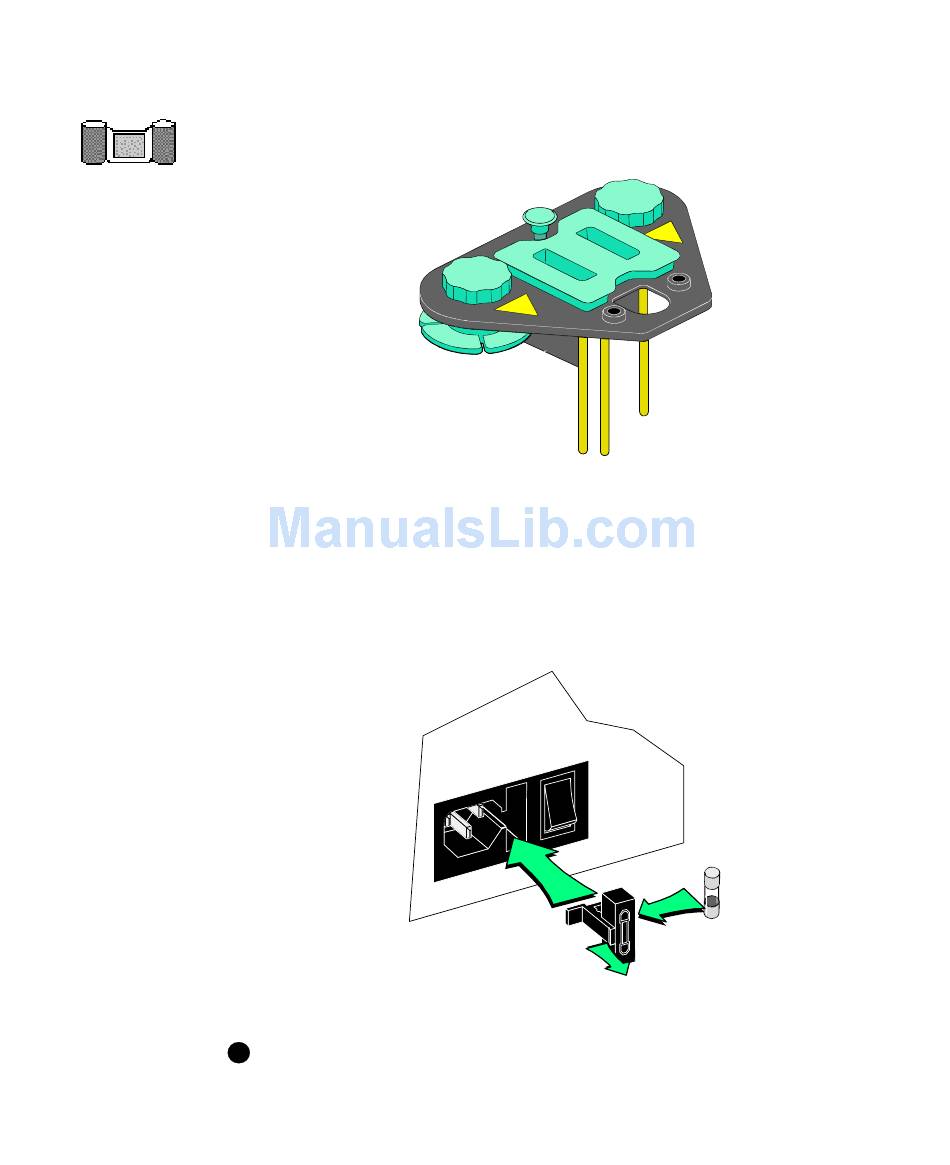

Figure 6-8: Overlay cartridge
Figure B-11: Power receptacle fuse
The power receptacle fuse is a 2.5 amp., slow blow fuse.
3
2
1
B-15
