9.5

Mounting technique for attachment at the grooved plate

For mounting the components at the grooved plate, there is the Snap-In mounting system
(fig. 47 -3). It is designed for grooved plates with a groove dimension (groove width) of 8.9 mm.
1 Pneumatic component
2 Grooved plate

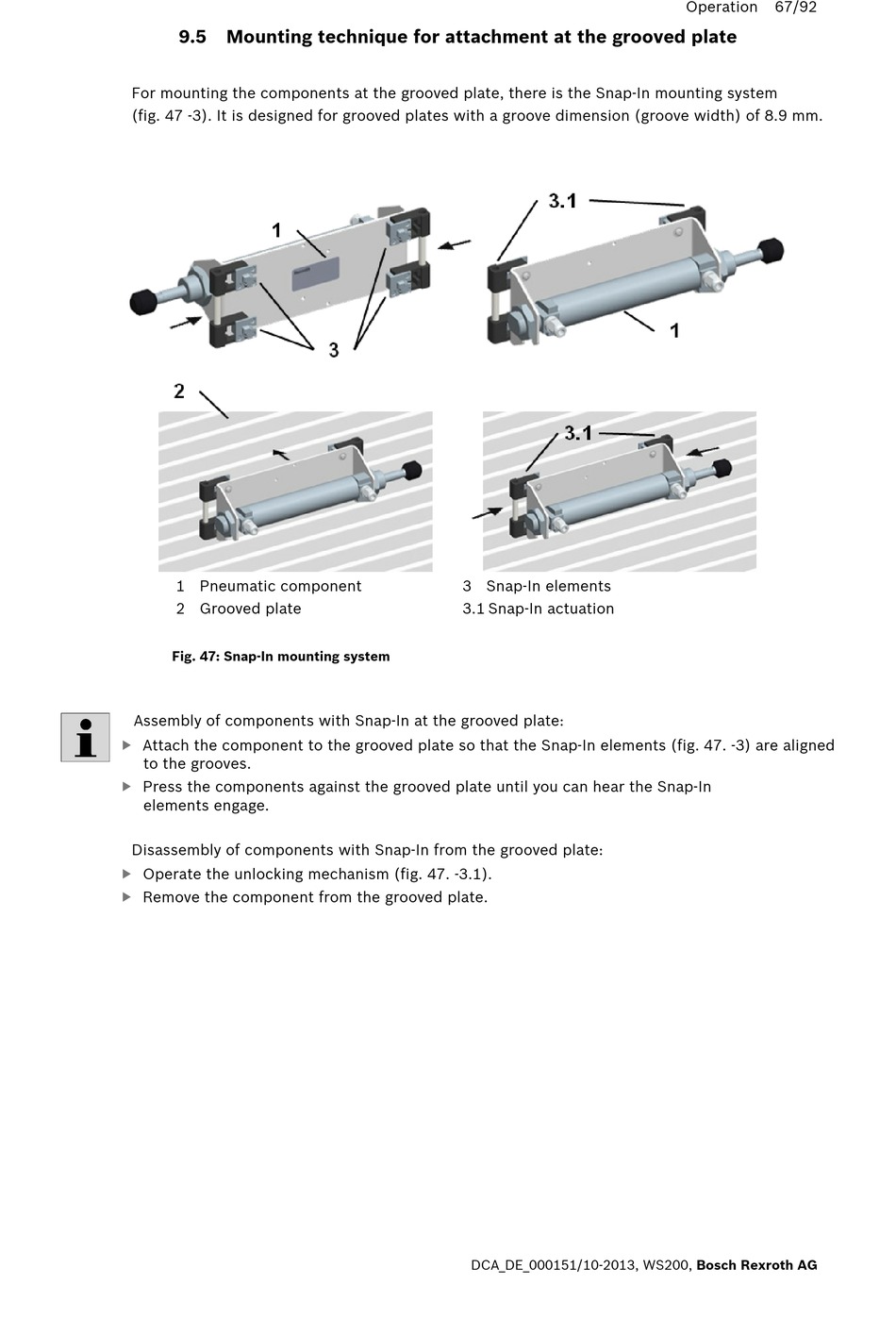

Fig. 47: Snap-In mounting system
Assembly of components with Snap-In at the grooved plate:
Attach the component to the grooved plate so that the Snap-In elements (fig. 47. -3) are aligned
to the grooves.
Press the components against the grooved plate until you can hear the Snap-In
elements engage.
Disassembly of components with Snap-In from the grooved plate:
Operate the unlocking mechanism (fig. 47. -3.1).
Remove the component from the grooved plate.
3 Snap-In elements
3.1 Snap-In actuation
DCA_DE_000151/10-2013, WS200, Bosch Rexroth AG
Operation
67/92
