42/92 Assembly of the WS200 work station
For the generator set assembly, you need a support plate which is at least 5 mm strong.
The support plate must be level and be able to bear the weight (approx. 18 kg) of the generator
set. Put the hydraulic power unit onto the support plate before assembling the mounting set.
After the assembly, remove the support plate again. Between the bottom of the hydraulic power
unit tank and the bottom of the frame oil pan, there should now be an air gap of at least 5 mm.
This guarantees perfect functioning of the two vibration dampers.
Table 15: Material numbers for hydraulic power unit assembly - part 2
Pos. no.
1
4

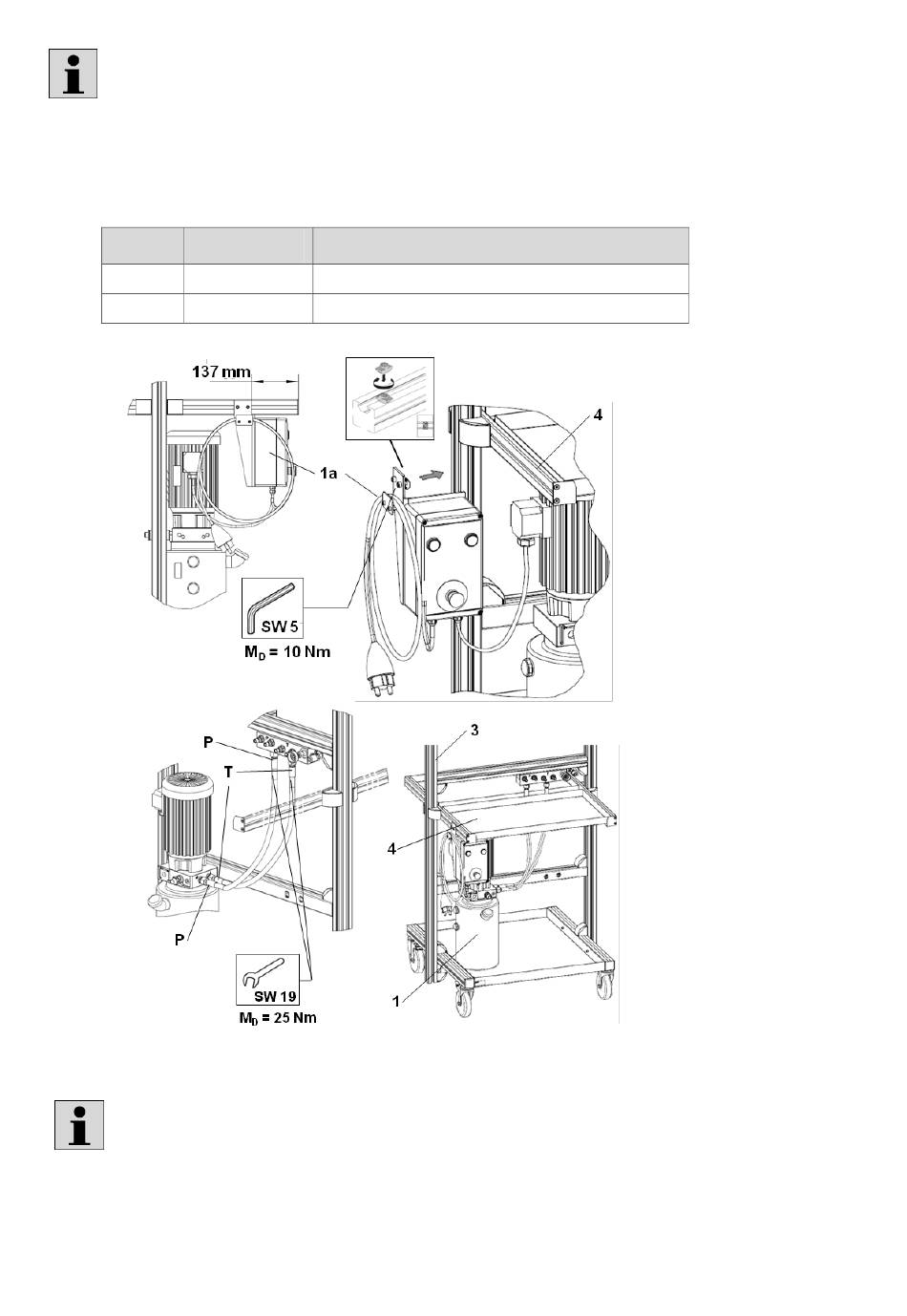

Fig. 29: Generator set assembly part 2
To the assembly of 2 hydraulic power units for 2 workplaces (see section 5.4.5), the same
instructions apply (fig. 28 and 29).
Bosch Rexroth AG, WS200, DCA_DE_000151/10-2013
Material number Material short text
R961008683 ANTRIEBSAGGREGAT TS-WS200 220V/50HZ 1X
R961008669 ABLAGE TS-WS200
