5.3

Base frame

The base frame is the basis of the WS200 work station and consists of a modular device
carrier (1). AT this carrier, all other components are mounted. The device carrier is
equipped with four stable, lockable and steerable transport rollers (2) and an oil pan (3).
The oil pan is used to collect drip losses at the hydraulic power unit and drip losses of
hydraulic hose lines at the hose holder.
In a configuration with pneumatic set-up, you an also place a compressor for
the compressed air supply in this oil pan.

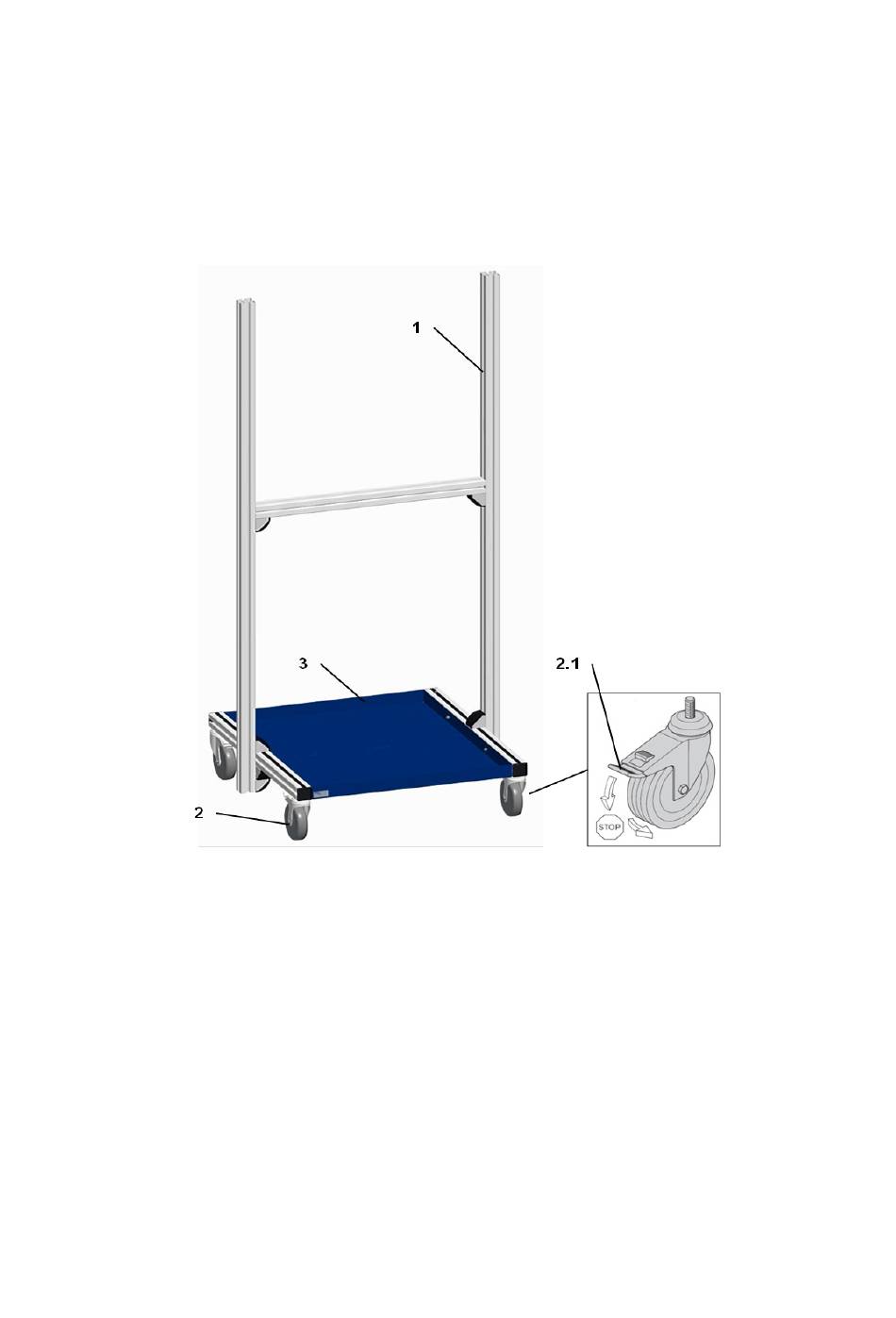

1 Device carrier
2 Transport rollers
2.1 Locking device of the transport rollers
3 Oil pan
Fig. 5: WS200 base frame
