5.4.2 Hydraulic circuit schematic

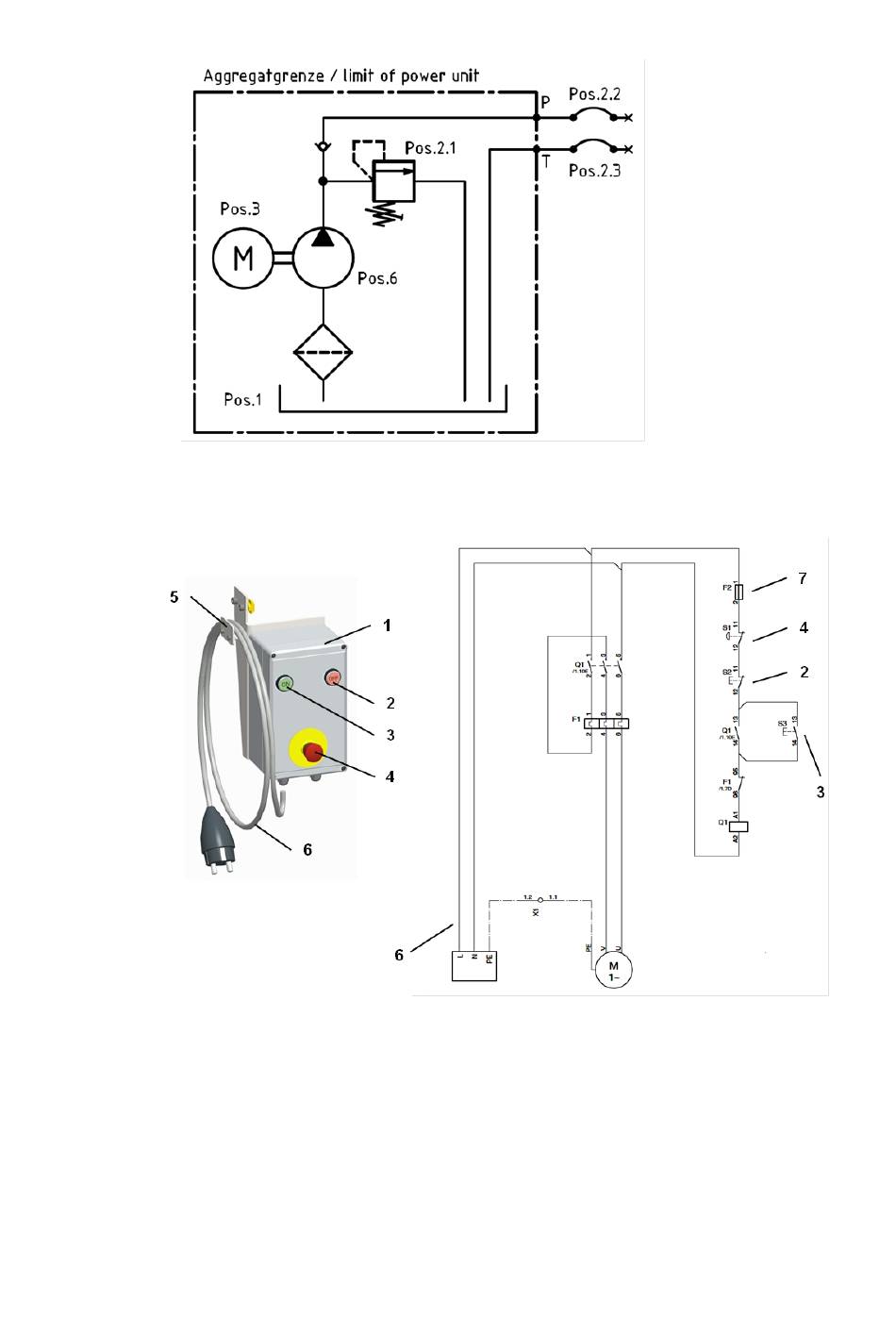

Fig. 7: Circuit schematic of an individual compact hydraulic power unit

5.4.3 Control box

1 Control box
2 Off pushbutton
3 On pushbutton
Fig. 8: Control box and electrical circuit schematic
Information on this product
4 EMERGENCY OFF pushbutton
5 Cable holder for power cable
6 Power cable with mains plug
7 Micro-fuse for control line
DCA_DE_000151/10-2013, WS200, Bosch Rexroth AG
21/92
