9.7

Handling of hydraulic hose lines

This chapter refers to the correct handling of hydraulic hose lines, especially when setting
up training circuits.
Table 29: Technical data of the hydraulic hose lines for the training set-up
Hose type (according to DIN EN 857)
Hose fitting type on both sides
Nominal hose diameter (inside)
minimum bending radius

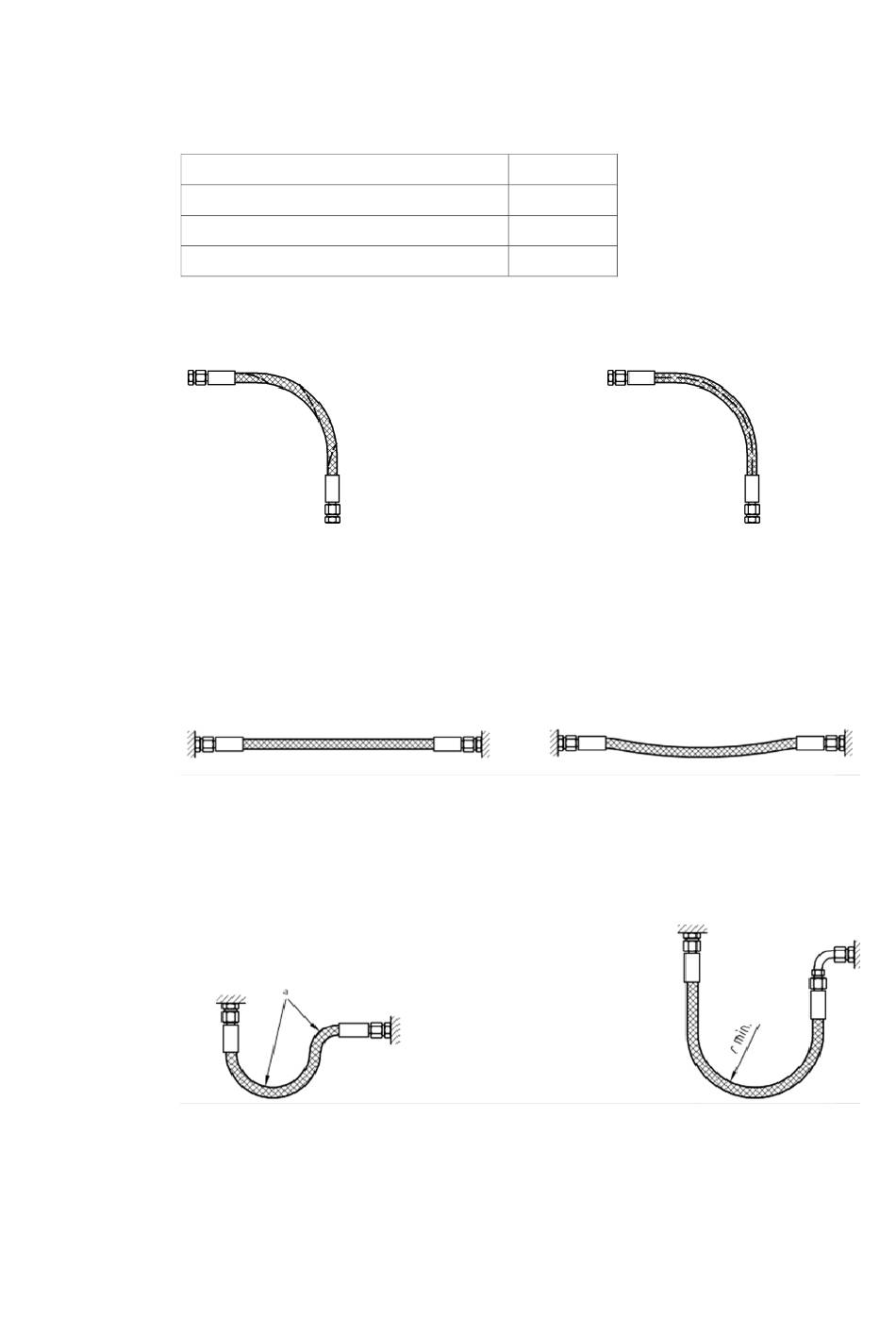

The following figures and notices are extracts from DIN 20066.
• Any twisting of the hose is to be avoided (see fig. 49).
Wrong
Fig. 49: Laying hydraulic hose lines part 1
• Hydraulic hose lines should be installed so that there is no tensile load in any operating
condition, except by own weight; the same is true for compressions with short lengths
(see fig. 50).
Wrong
Fig. 50: Laying hydraulic hose lines part 2
• If possible, hose lines should be installed according to their natural position whereas
the smallest bending radii admissible must always be complied with (see fig. 51).
Wrong
a – bending radii too small
Fig. 51: Laying hydraulic hose lines part 3
2SC
DKO 10L
8 mm
85 mm
DCA_DE_000151/10-2013, WS200, Bosch Rexroth AG
Operation 69/92
Correct
Correct
Correct
