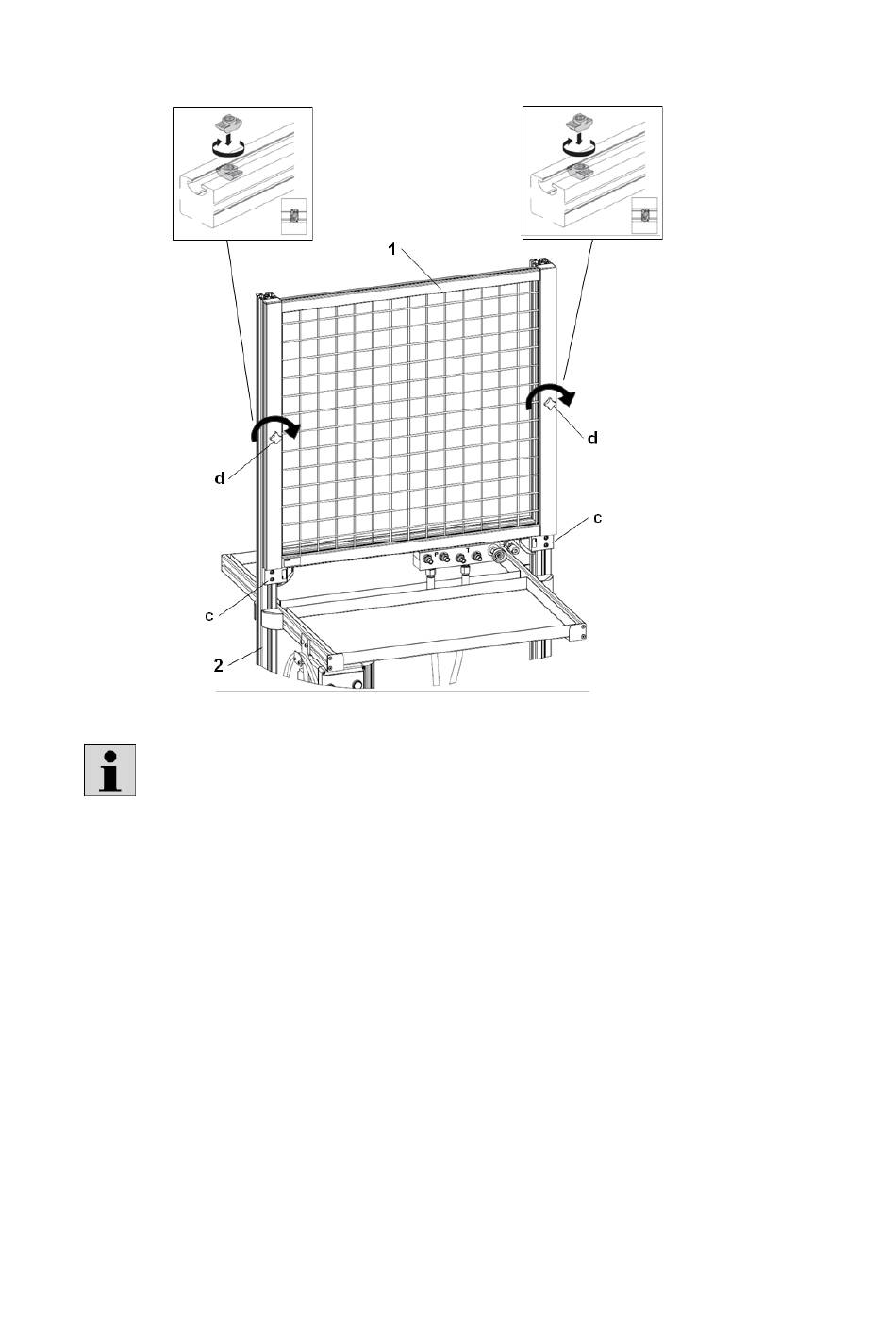

Fig. 34: Grid frame assembly at frame part 2
The following work steps describe the installation of the grid frame (1) into the
base frame (2):
Complete the partial assemblies according to fig. 30 to fig. 32:
•
Move the grid towards the frame (fig. 33). The screw heads (a) must enter the groove (b) of
•
the member profile. In this way, the grid is aligned to the base frame.
Lower the grid (1) evenly until it completely rests on the "Grid frame mounting kit".
•
Manually tighten the two star handle screws (d) (fig. 34).
•
To the assembly of 2 grids for 2 workplaces (see section 5.7), the same instructions apply
(fig. 30 to fig. 34).
Assembly of the WS200 work station
DCA_DE_000151/10-2013, WS200, Bosch Rexroth AG
47/92
