Accessory Set Assembly; Accessory Set 1 - Bosch Rexroth WS200 Operating Instructions Manual

50/92 Assembly of the WS200 work station
7.5
This chapter describes the subsequent installation of the hydraulic power units into
existing preferred variants of the WS200 work station. For a better assignment,
the hydraulic power unit variants are referred to as accessory sets. The variance is not
the hydraulic power unit itself but the number of hydraulic power units and their
attachment parts. Assignment of the individual hydraulic power unit variants to the
preferred types is explained in chap. 5.10.
The subsequent installation of a grid or a grooved plate according to chap. 7.4.

7.5.1 Accessory set 1

Table 23: Material numbers for accessory set 1 assembly
Pos. no.
1
2

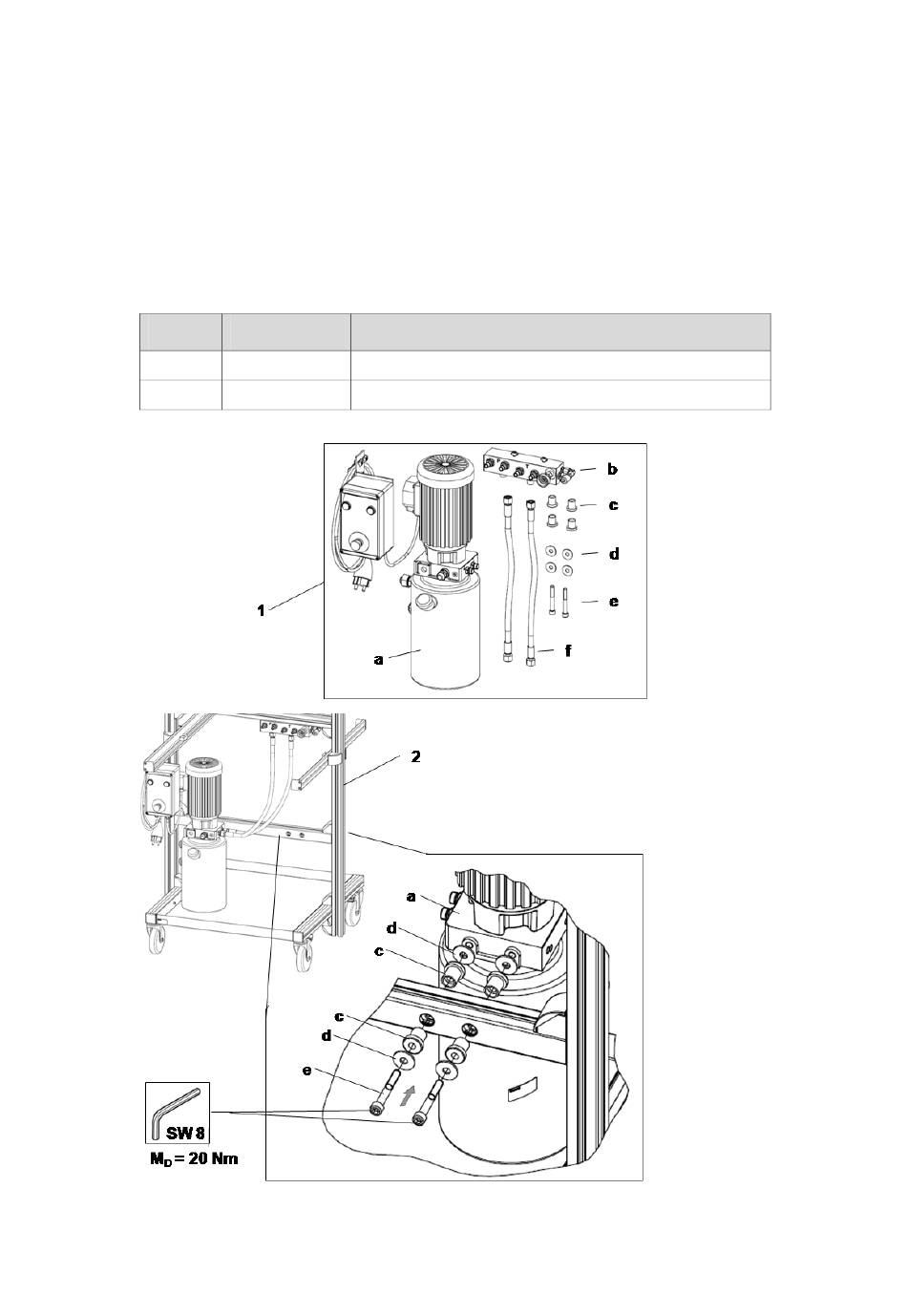

Fig. 37: Accessory set 1 assembly
Bosch Rexroth AG, WS200, DCA_DE_000151/10-2013

Accessory set assembly

Material number Material short text
R961009539 ANTRIEBSAGGREGAT TS-WS200 220V/50HZ 3X
R961008668 GRUNDGESTELL TS-WS200
