30/92 Information on this product
Variant 3

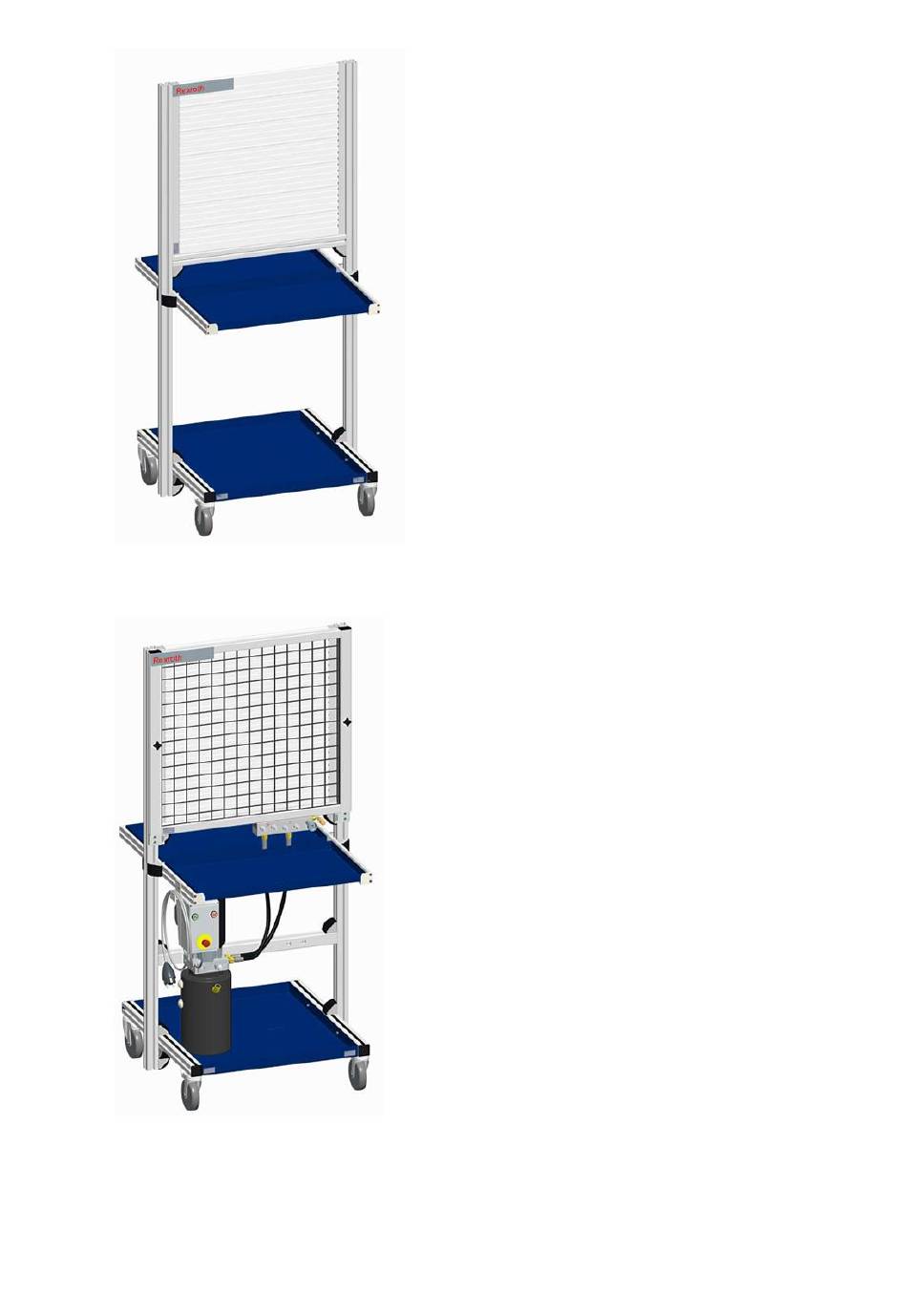

Fig. 20: Preferred type variant 3
Variant 4
Fig. 21: Preferred type variant 4
Bosch Rexroth AG, WS200, DCA_DE_000151/10-2013
Material number: R961008854
Equipment features:
• 1x grooved plate
• 1x tray
Working surface:
• On two sides
Use for:
• Set-up of training circuits
from the pneumatics area
• Set-up of training circuits
from the automation area
Can be equipped with:
• Accessory set 2
(1x hydraulic power unit
with 1x P/T distributor)
• Accessory set 3
(2x hydraulic power unit
with 2x P/T distributor)
• A maximum of 2x grid
Material number: R961009258
Equipment features:
• 1x hydraulic power unit
with 1x P/T distributor
• 1x grid
• 1x grooved plate
• 1x tray
Working surface:
• On two sides
Use for:
• Set-up of training circuits
from the pneumatics area
• Set-up of training circuits
from the automation area
• Set-up of training circuits
from the hydraulics area
Can be equipped with:
• Accessory set 1
(1x hydraulic power unit
with 1x P/T distributor)
• 1x grid
