1 WS200

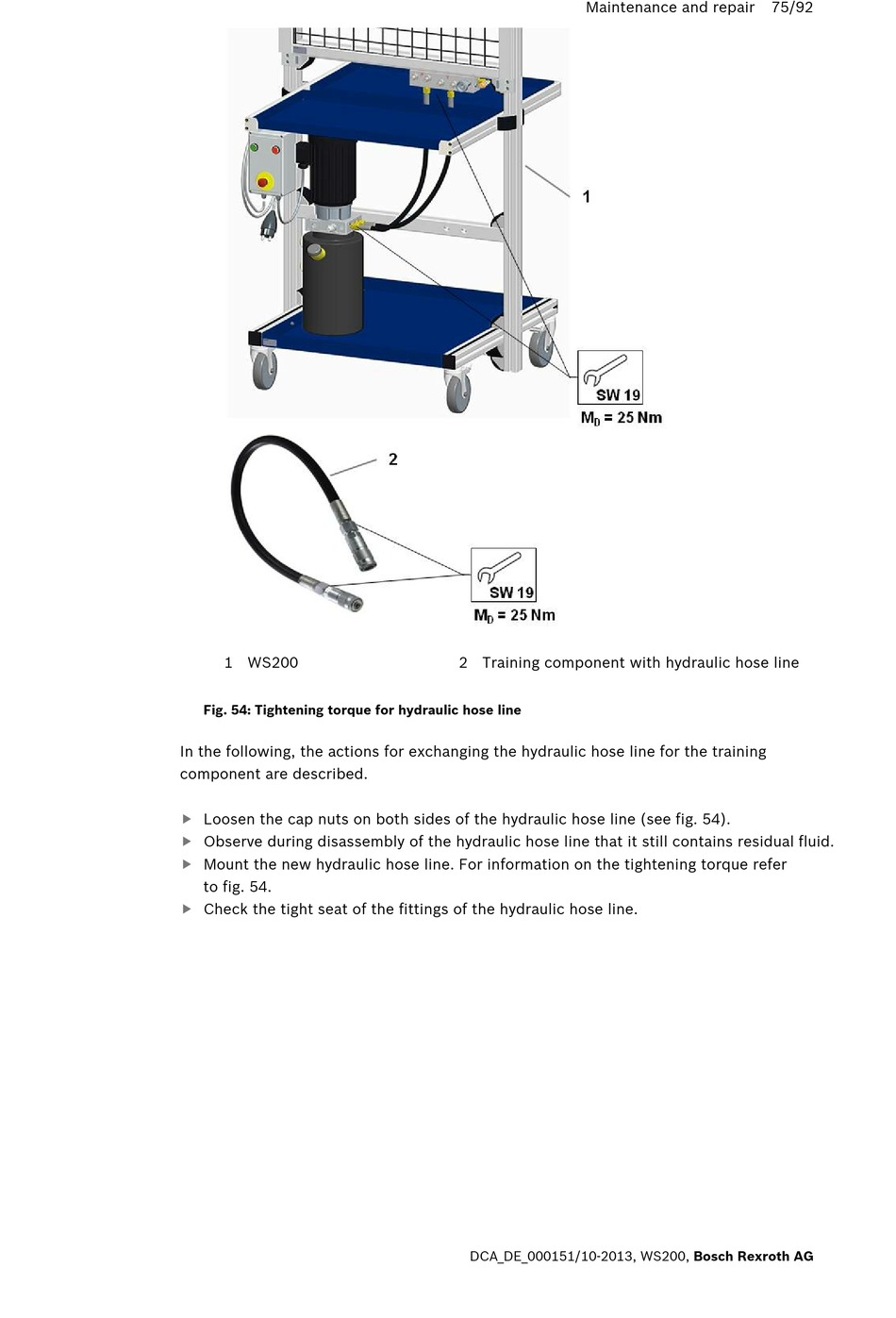

Fig. 54: Tightening torque for hydraulic hose line
In the following, the actions for exchanging the hydraulic hose line for the training
component are described.
Loosen the cap nuts on both sides of the hydraulic hose line (see fig. 54).

Observe during disassembly of the hydraulic hose line that it still contains residual fluid.

Mount the new hydraulic hose line. For information on the tightening torque refer

to fig. 54.
Check the tight seat of the fittings of the hydraulic hose line.

Maintenance and repair
2 Training component with hydraulic hose line
DCA_DE_000151/10-2013, WS200, Bosch Rexroth AG
75/92
