5.4.5 Hydraulic oil supply for 2 workplaces

For the hydraulic oil supply of 2 workplaces, 2 hydraulic power units are required.
To this end, two identical hydraulic power units are mounted on a joint cross member.
Every hydraulic power unit is independent, i.e. there is neither a hydraulic nor an
electric connection.
Set-up and function of the individual hydraulic power unit are explained in the
preceding section.

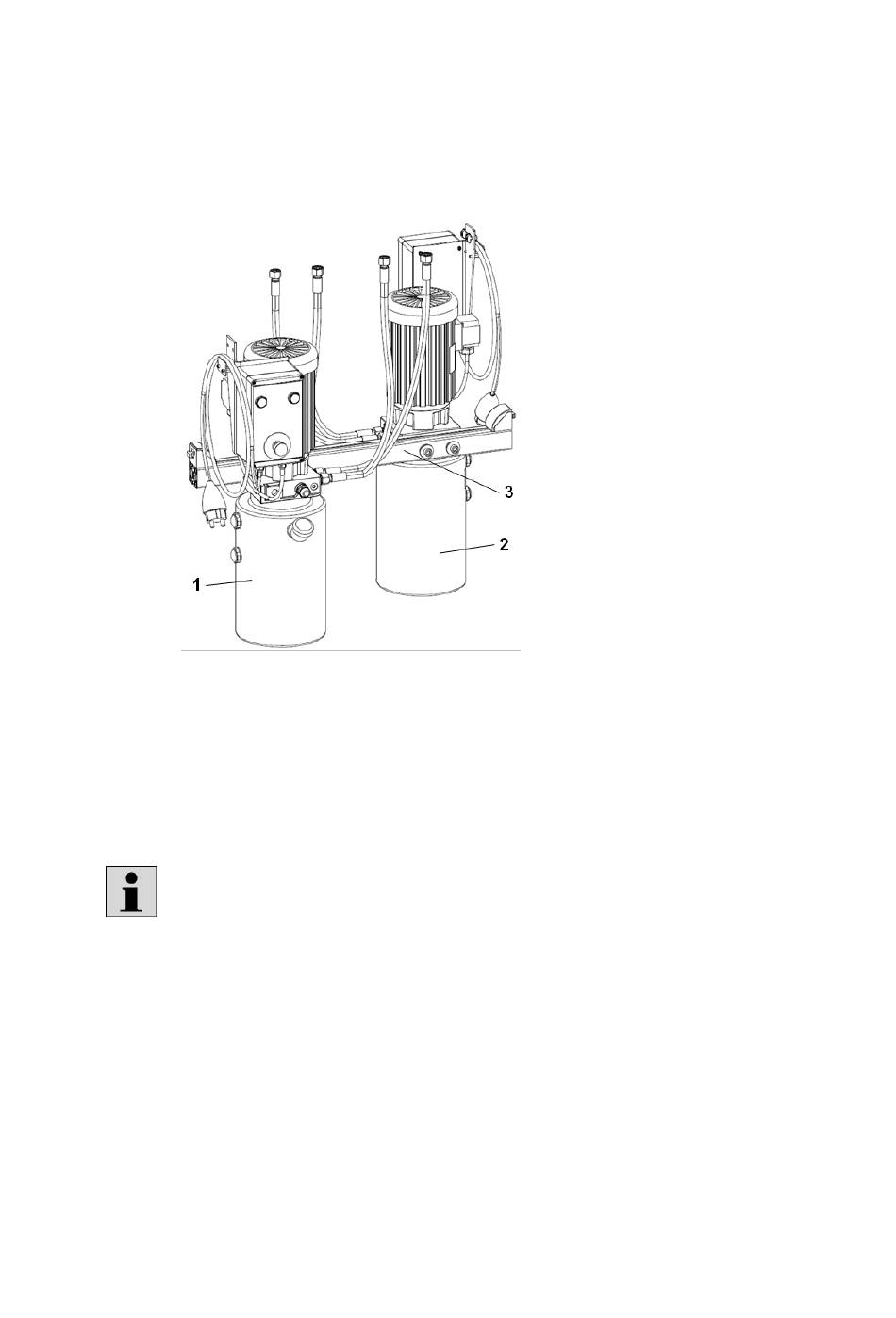

1 Compact hydraulic power unit
2 Compact hydraulic power unit
3 Cross member
Fig. 9: Version with two compact hydraulic power units
Hydraulic connection of several hydraulic power units (to increase the flow) is not possible.
The tanks of the hydraulic power units are not connected with each other. So the different
filling levels in the tanks cannot be compensated.
