Operation 65/92
9.4

Mounting variant for installation into the grid

The following is an overview of the mounting variants of the hydraulic components for
the assembly into the grid frame of the WS200 work station.
The mounting variants at the hydraulic components are designed for acceptance in
a welded grid made of steel with grid dimensions 50 x 50 mm and a wire diameter of 4 mm.

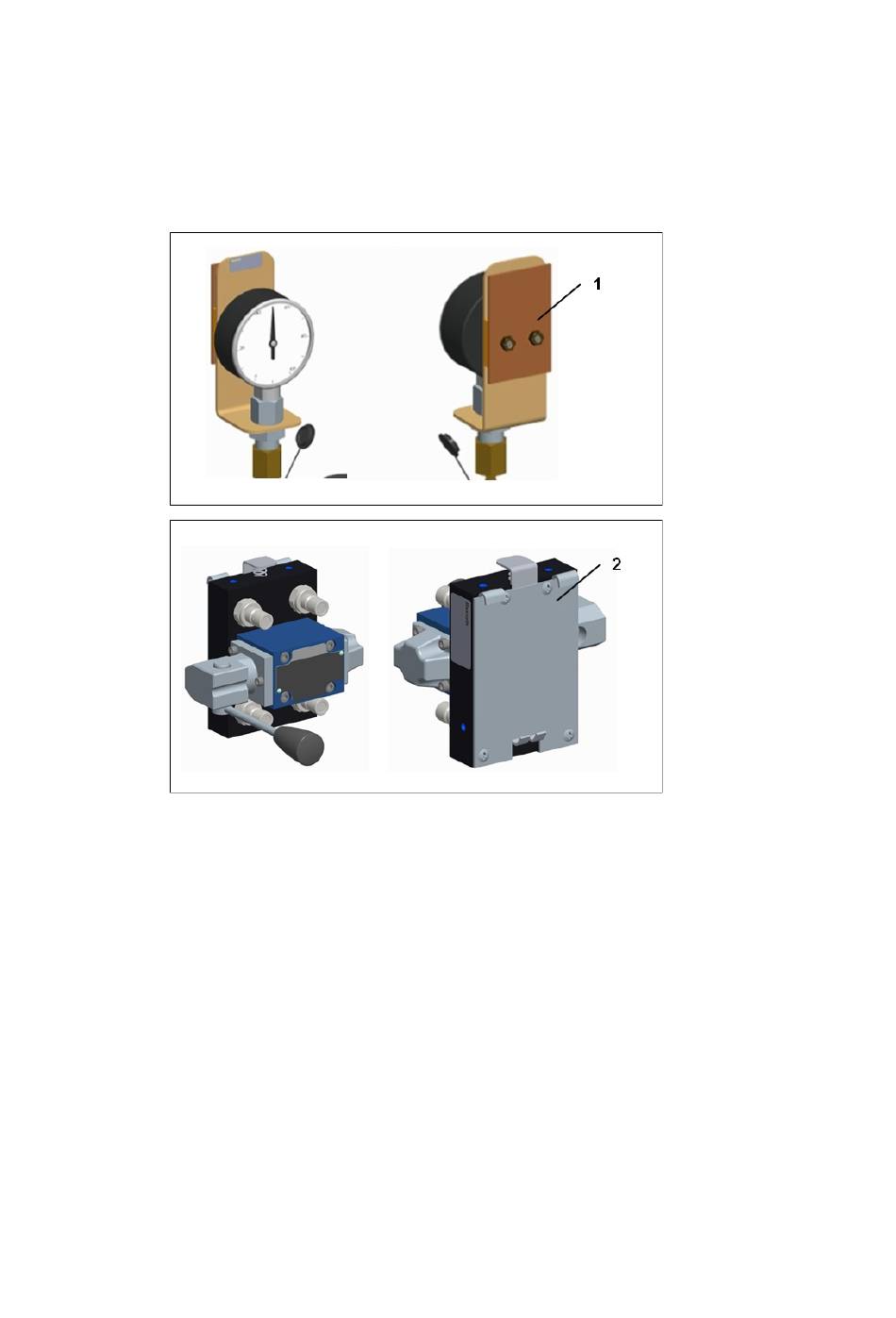

1 Mounting variant 1 2 Mounting variant 2
Fig. 44: Overview of mounting variants for the WS200 grid frame
DCA_DE_000151/10-2013, WS200, Bosch Rexroth AG
