20/92 Information on this product
5.4

5.4.1 Set-up

The hydraulic power unit provides a workplace with hydraulic fluid.

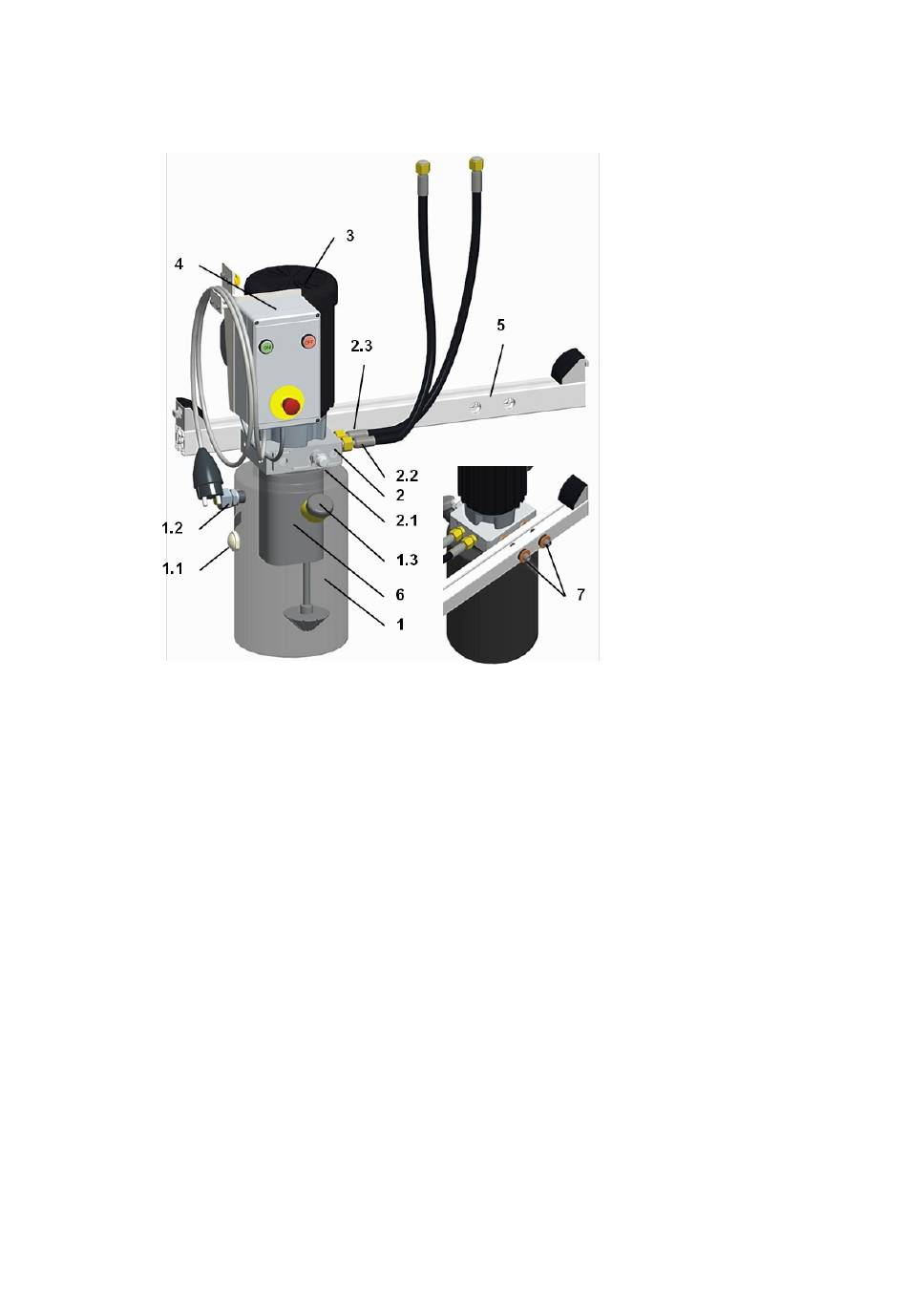

1 Oil tank
1.1 Oil level display
1.2 Measuring glass connection
1.3 Filler neck
2 Central connection block
2.1 Pressure relief valve
2.2 Pressure line - port P
2.3 Tank line - port T
Fig. 6: Individual compact hydraulic power unit
Bosch Rexroth AG, WS200, DCA_DE_000151/10-2013

Compact hydraulic power unit

3 Asynchronous one-phase motor
4 Control box with connection line
5 Cross member
6 External gear pump
7 Vibration damper
