5.6

Tray

The trays are two powder-coated pans made of steel, one per workplace. They are only
secured against shifting. So they can be removed more easily. If you turn the trays around,
you can either use them as pure tray or as additional oil pan e.g. for collecting drip losses
when setting up or dismantling hydraulic training set-ups.
Before turning the oil pans around, you should remove existing fluid residues by means of
a suitable cleaning cloth.

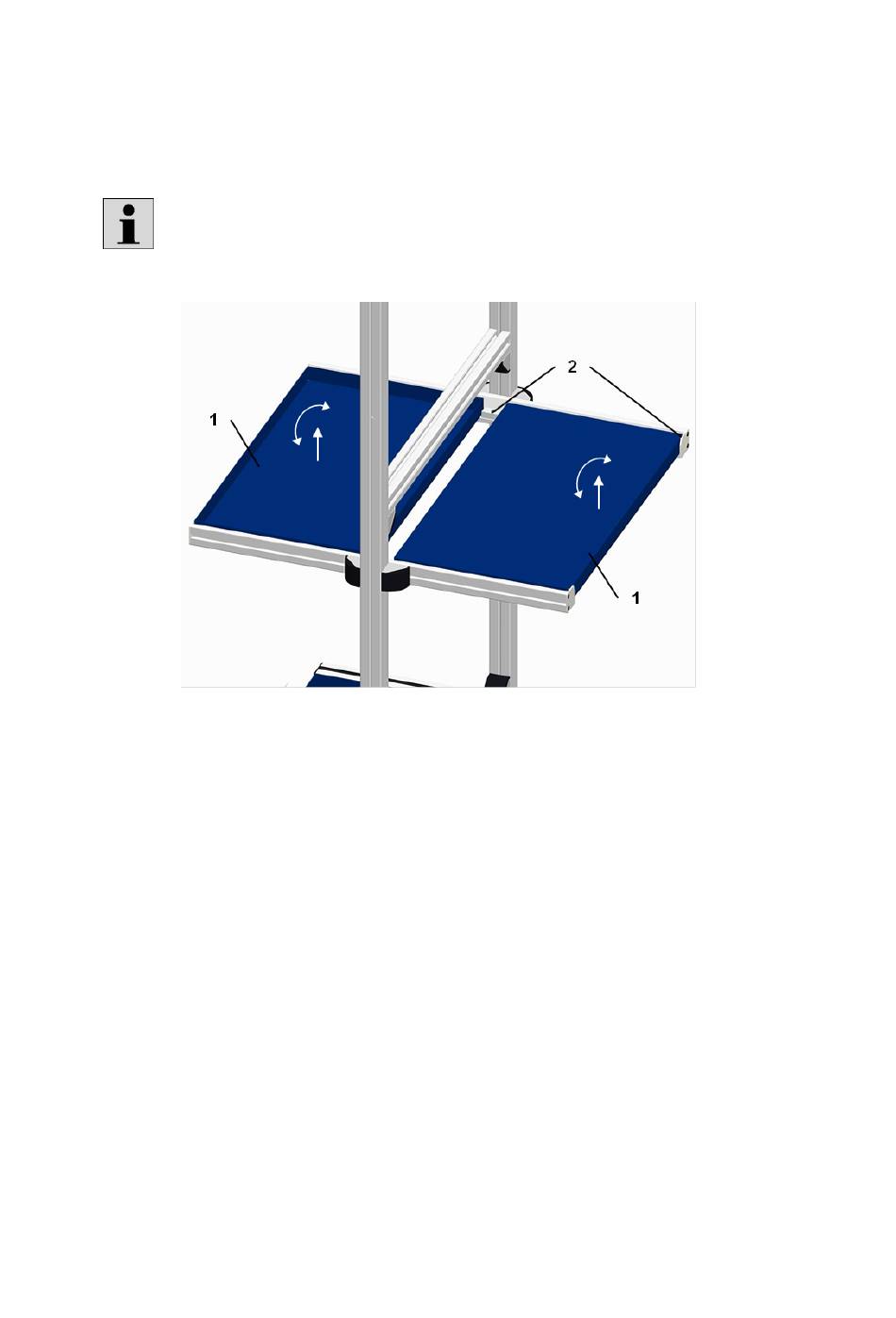

1 Tray
2 Protection against shifting
Fig. 12: Tray
