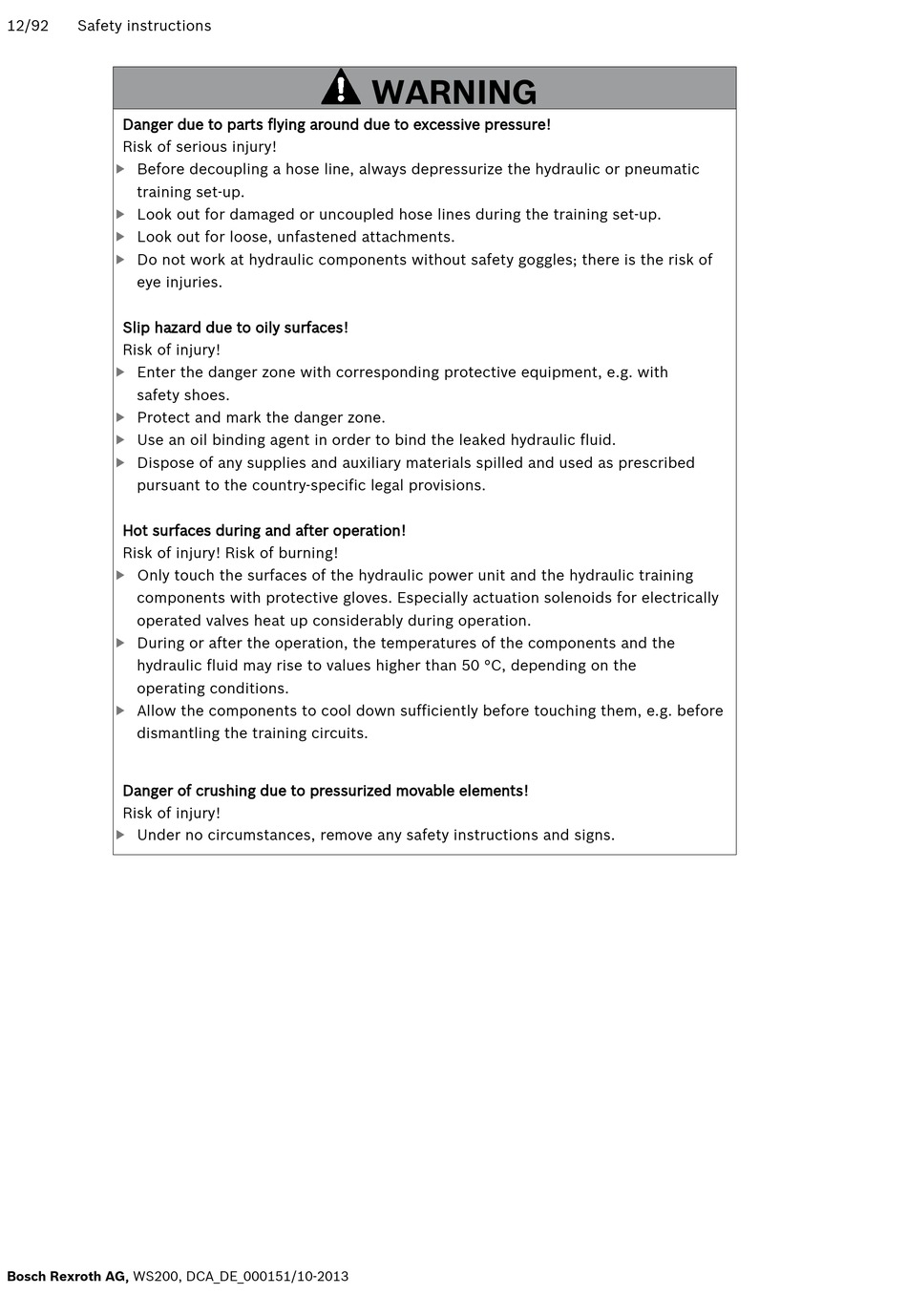

12/92
Safety instructions
Danger due to parts flying around due to excessive pressure!
Risk of serious injury!
Before decoupling a hose line, always depressurize the hydraulic or pneumatic
training set-up.
Look out for damaged or uncoupled hose lines during the training set-up.
Look out for loose, unfastened attachments.
Do not work at hydraulic components without safety goggles; there is the risk of
eye injuries.
Slip hazard due to oily surfaces!
Risk of injury!
Enter the danger zone with corresponding protective equipment, e.g. with
safety shoes.
Protect and mark the danger zone.
Use an oil binding agent in order to bind the leaked hydraulic fluid.
Dispose of any supplies and auxiliary materials spilled and used as prescribed
pursuant to the country-specific legal provisions.
Hot surfaces during and after operation!
Risk of injury! Risk of burning!
Only touch the surfaces of the hydraulic power unit and the hydraulic training
components with protective gloves. Especially actuation solenoids for electrically
operated valves heat up considerably during operation.
During or after the operation, the temperatures of the components and the
hydraulic fluid may rise to values higher than 50 °C, depending on the
operating conditions.
Allow the components to cool down sufficiently before touching them, e.g. before
dismantling the training circuits.
Danger of crushing due to pressurized movable elements!
Risk of injury!
Under no circumstances, remove any safety instructions and signs.
Bosch Rexroth AG, WS200, DCA_DE_000151/10-2013
WARNING
