27/92
5.8
Grooved plate
The grooved plate is used to accept the components from the pneumatic and automation
technology device sets.
The grooved plate is composed of individual segments with the dimensions 100 x 650 mm
(height x width) with grid dimensions (distance groove to groove) of 25 mm. The working
surface of the grooved plate is 700 x 650 mm (height x width).
The grooved plate can be used on both sides. So there are always two workplaces for
training set-ups.

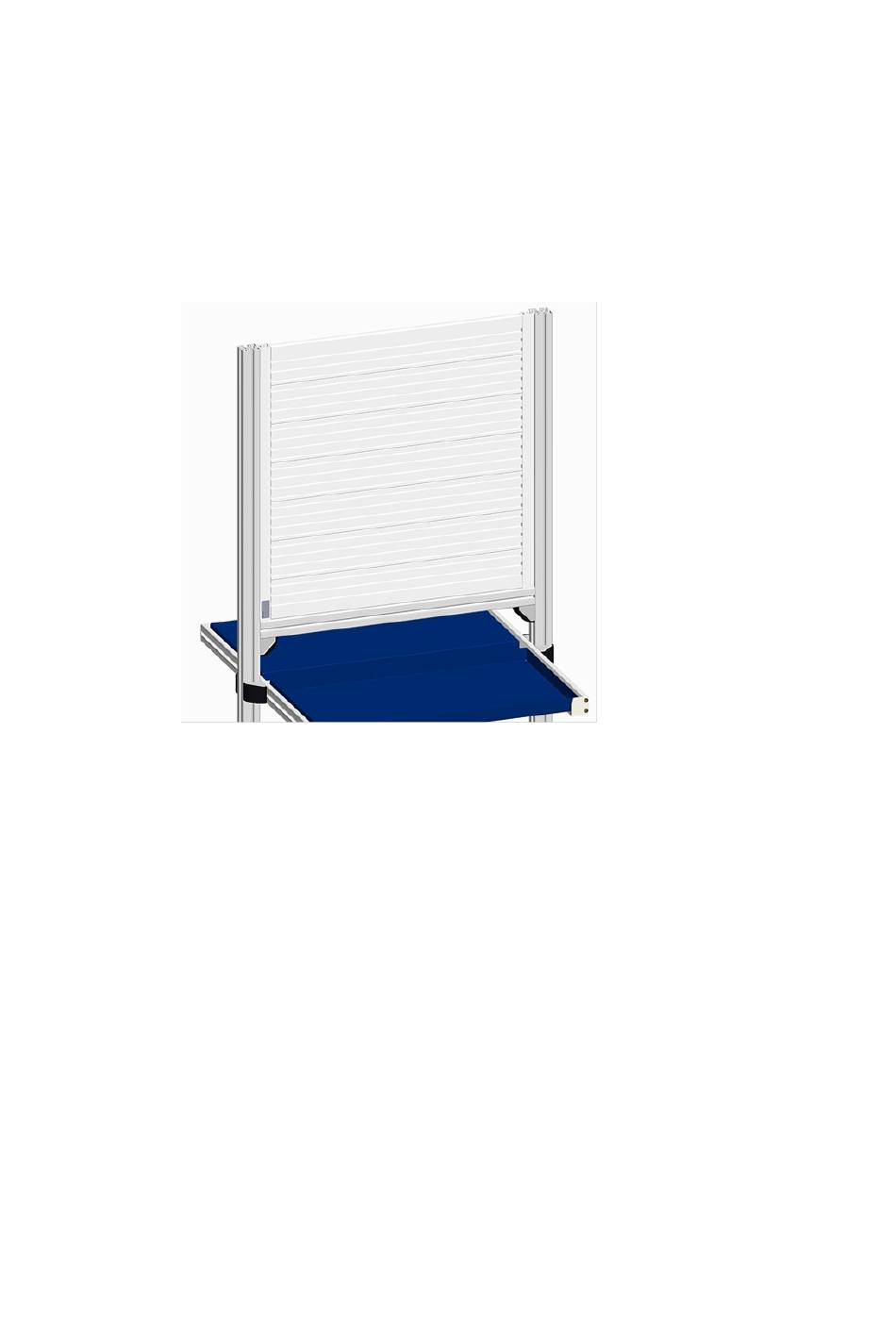

Fig. 15: Grooved plate
DCA_DE_000151/10-2013, WS200, Bosch Rexroth AG
