60/92
Commissioning
1 Hydraulic fluid
2 Funnel
3 Filler neck

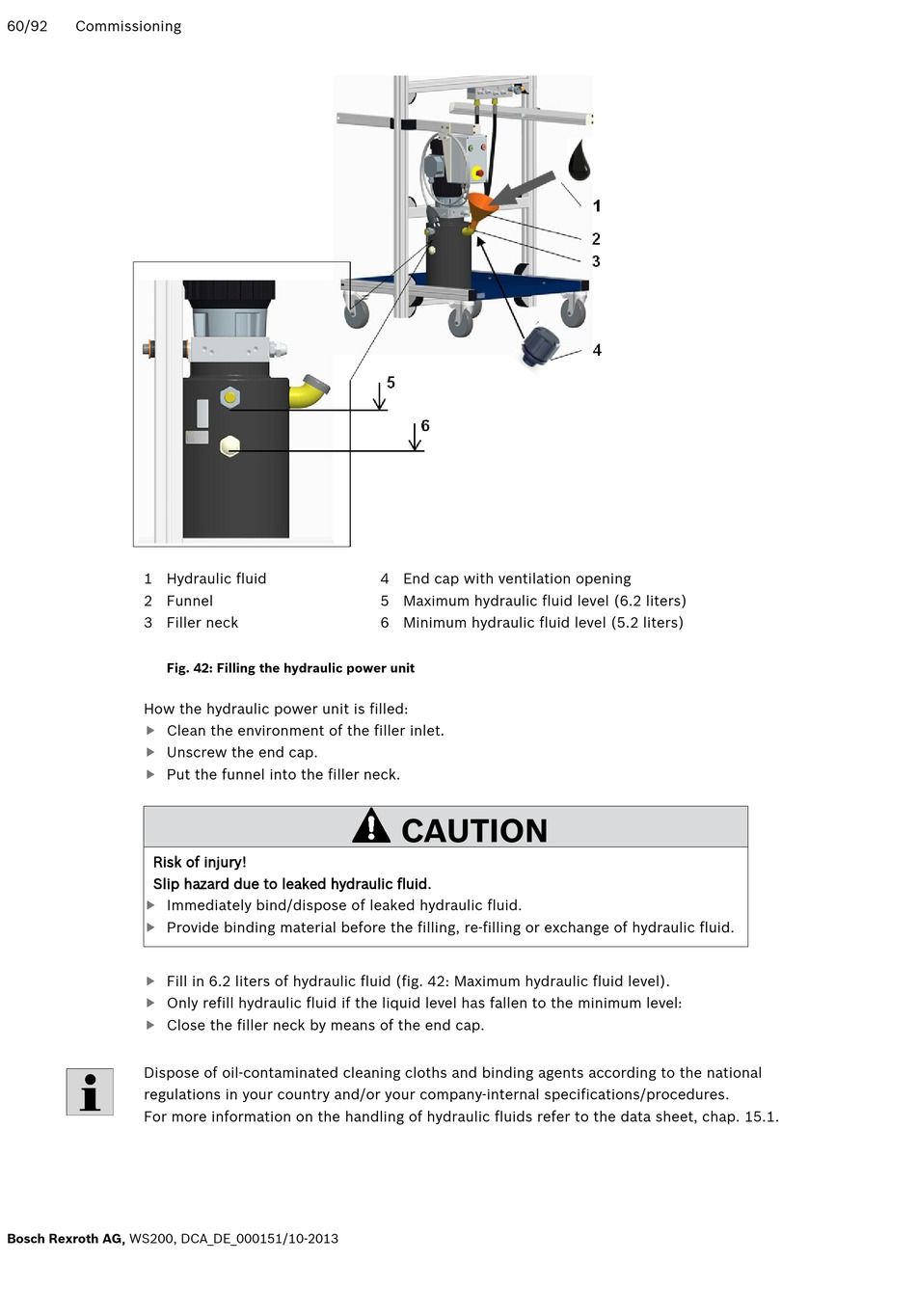

Fig. 42: Filling the hydraulic power unit
How the hydraulic power unit is filled:
Clean the environment of the filler inlet.
Unscrew the end cap.
Put the funnel into the filler neck.
Risk of injury!
Slip hazard due to leaked hydraulic fluid.
Immediately bind/dispose of leaked hydraulic fluid.
Provide binding material before the filling, re-filling or exchange of hydraulic fluid.
Fill in 6.2 liters of hydraulic fluid (fig. 42: Maximum hydraulic fluid level).
Only refill hydraulic fluid if the liquid level has fallen to the minimum level:
Close the filler neck by means of the end cap.
Dispose of oil-contaminated cleaning cloths and binding agents according to the national
regulations in your country and/or your company-internal specifications/procedures.
For more information on the handling of hydraulic fluids refer to the data sheet, chap. 15.1.
Bosch Rexroth AG, WS200, DCA_DE_000151/10-2013
4 End cap with ventilation opening
5 Maximum hydraulic fluid level (6.2 liters)
6 Minimum hydraulic fluid level (5.2 liters)
CAUTION
