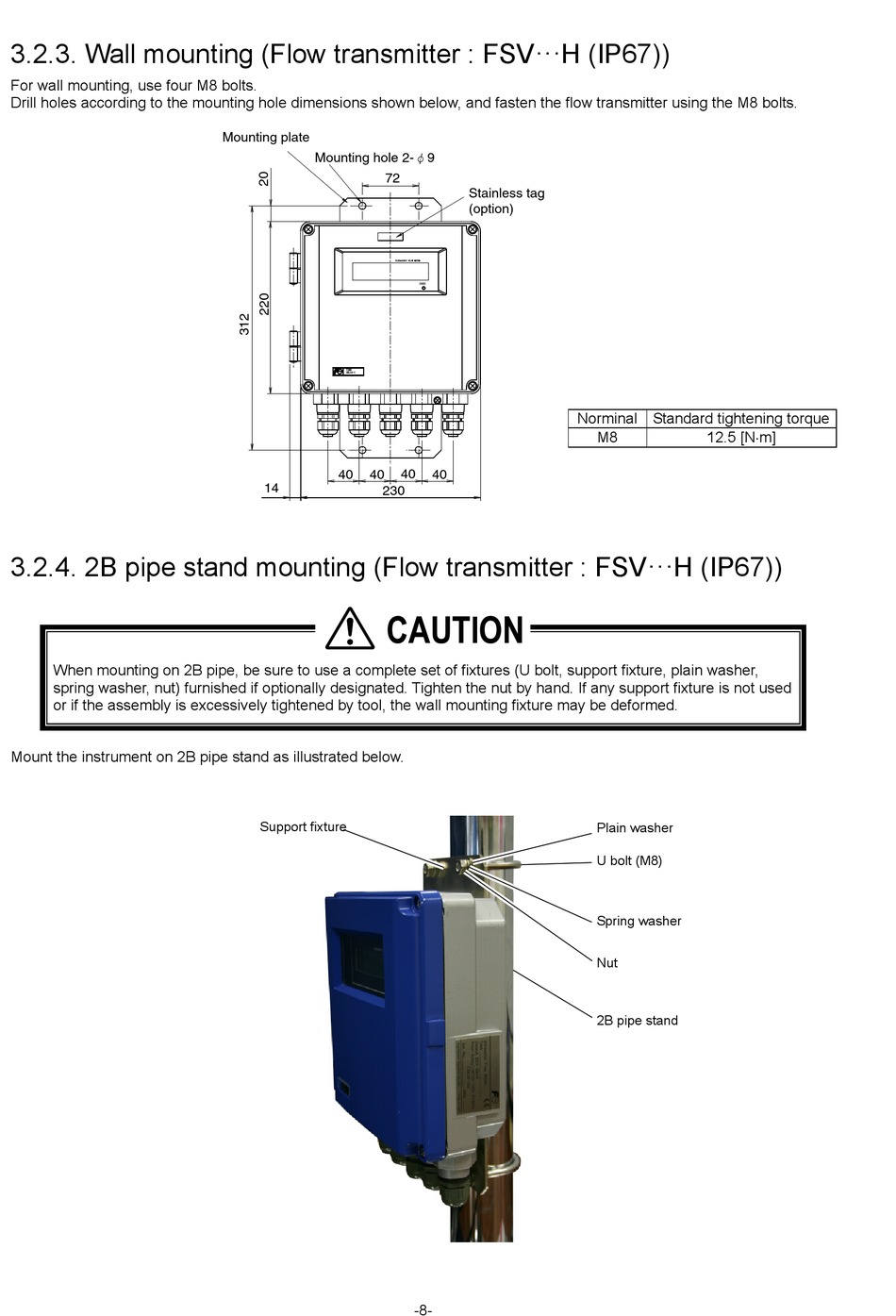

3.2.3. Wall mounting (Flow transmitter : FSV···H (IP67))
For wall mounting, use four M8 bolts.
Drill holes according to the mounting hole dimensions shown below, and fasten the flow transmitter using the M8 bolts.
3.2.4. 2B pipe stand mounting (Flow transmitter : FSV···H (IP67))
When mounting on 2B pipe, be sure to use a complete set of fixtures (U bolt, support fixture, plain washer,
spring washer, nut) furnished if optionally designated. Tighten the nut by hand. If any support fixture is not used
or if the assembly is excessively tightened by tool, the wall mounting fixture may be deformed.
Mount the instrument on 2B pipe stand as illustrated below.
Mounting plate
Mounting hole 2-φ9
72
TIME
DELTA‑C
40 40
14
230
Support fixture
Stainless tag
(option)
ULTRASONIC FLOW METER
STATUS
40
40
AUTION
-8-
Norminal Standard tightening torque
12.5 [N  m]
M8
Plain washer
U bolt (M8)
Spring washer
Nut
2B pipe stand
