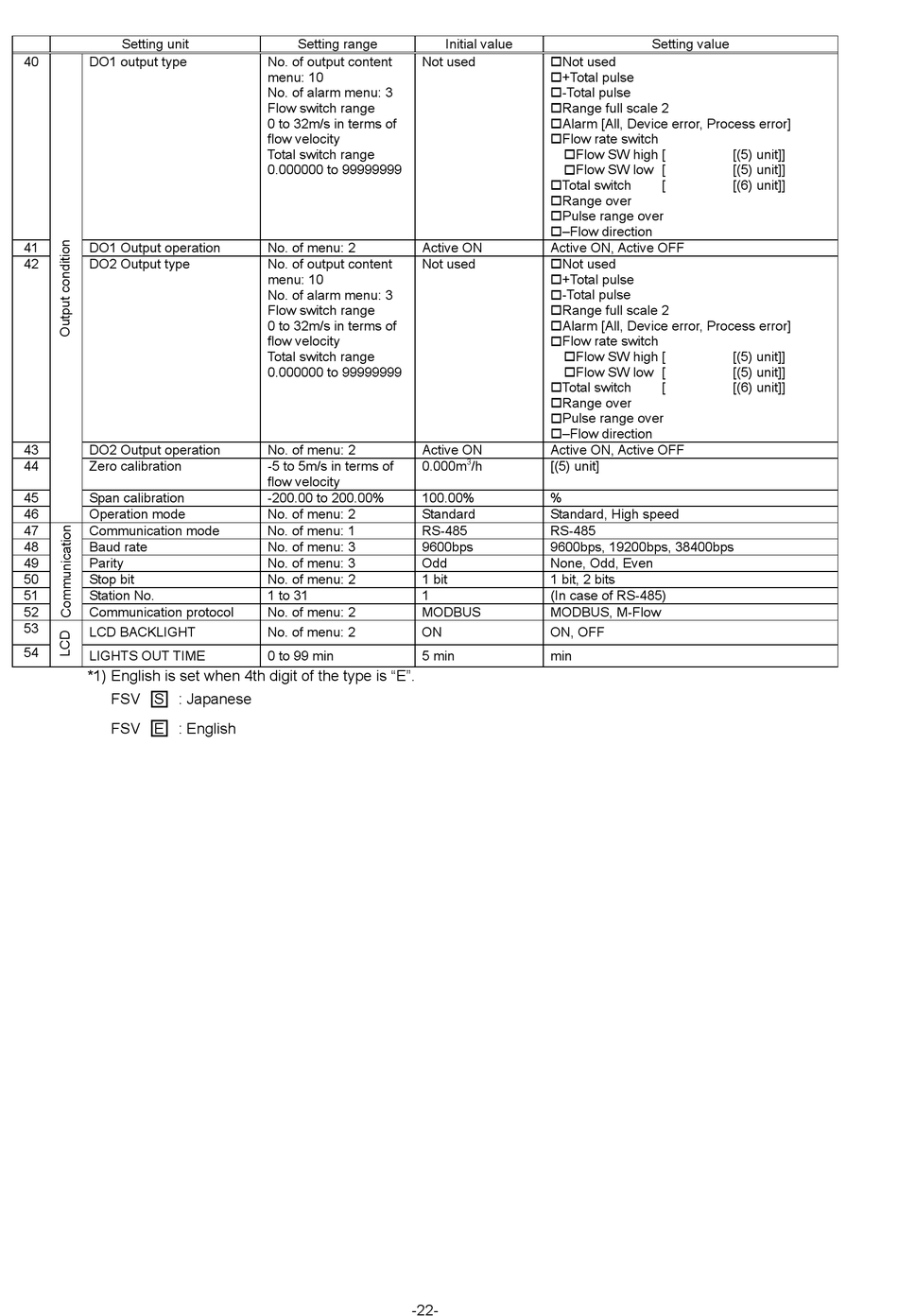

Fuji Electric Time Delta-C FSV-2 Instruction Manual page 30

Setting unit
40 DO1 output type
41 DO1 Output operation
42 DO2 Output type
43 DO2 Output operation
44 Zero calibration
45 Span calibration
46 Operation mode
47 Communication mode
48 Baud rate
49 Parity
50 Stop bit
51 Station No.
52 Communication protocol
53
LCD BACKLIGHT
54
LIGHTS OUT TIME
*1) English is set when 4th digit of the type is "E".
□
FSV S : Japanese
□
FSV E : English
Setting range
No. of output content Not used
menu: 10
No. of alarm menu: 3
Flow switch range
0 to 32m/s in terms of
flow velocity
Total switch range
0.000000 to 99999999
No. of menu: 2 Active ON
No. of output content Not used
menu: 10
No. of alarm menu: 3
Flow switch range
0 to 32m/s in terms of
flow velocity
Total switch range
0.000000 to 99999999
No. of menu: 2 Active ON
-5 to 5m/s in terms of 0.000m
flow velocity
-200.00 to 200.00% 100.00%
No. of menu: 2 Standard
No. of menu: 1 RS-485
No. of menu: 3 9600bps
No. of menu: 3 Odd
No. of menu: 2 1 bit
1 to 31 1
No. of menu: 2 MODBUS
No. of menu: 2 ON
0 to 99 min 5 min
-22-
Initial value
Not used
+Total pulse
-Total pulse
Range full scale 2
Alarm [All, Device error, Process error]
Flow rate switch
Flow SW high [
Flow SW low [
Total switch
Range over
Pulse range over
–Flow direction
Active ON, Active OFF
Not used
+Total pulse
-Total pulse
Range full scale 2
Alarm [All, Device error, Process error]
Flow rate switch
Flow SW high [
Flow SW low [
Total switch
Range over
Pulse range over
–Flow direction
Active ON, Active OFF
3
/h [(5) unit]
%
Standard, High speed
RS-485
9600bps, 19200bps, 38400bps
None, Odd, Even
1 bit, 2 bits
(In case of RS-485)
MODBUS, M-Flow
ON, OFF
min
Setting value
[(5) unit]]
[(5) unit]]
[ [(6) unit]]
[(5) unit]]
[(5) unit]]
[ [(6) unit]]
