3.3.1. Cautions in wiring

(1) Use a special coaxial cable (FLYC) as a signal cable between the detector and flow transmitter (FSV). Do
not provide a junction or splice of the signal cable midway.
(2) The signal cable between the detector or flow transmitter should be run in metallic conduits. Upstream and
downstream signal cables may be put in the same conduit but, to avoid interference, do not put the power
cable together.
(3) For output signal, use a shielded cable, where possible.
(4) To avoid noise interference, do not put the cables together with heavy duty line or the like into the same
duct.
(5) If a ground wire is included in the power cable, connect it to ground as it is.
(6) A power switch is not provided on the instrument and must be mounted separately.
(7) Seal unused wiring ports by furnished caps.

3.3.2. Applicable wires

Use the following cables.
 Power cable
 Output signal cable
 Detector-flow transmitter cable : Signal cable by type designation

3.3.3. Treatment of wiring port

The casing of the flow transmitter is IP66 and IP67. However, if installed in a humid place, the wiring ports must be made
airtight to avoid ingress of moisture, condensation, etc. Be sure to use the waterproof glands furnished with the instrument
in order to ensure the waterproof means. A gland, which is not ready to be used, should be sealed by supplied cover.
Do not install the instrument where there is a risk of flooding.

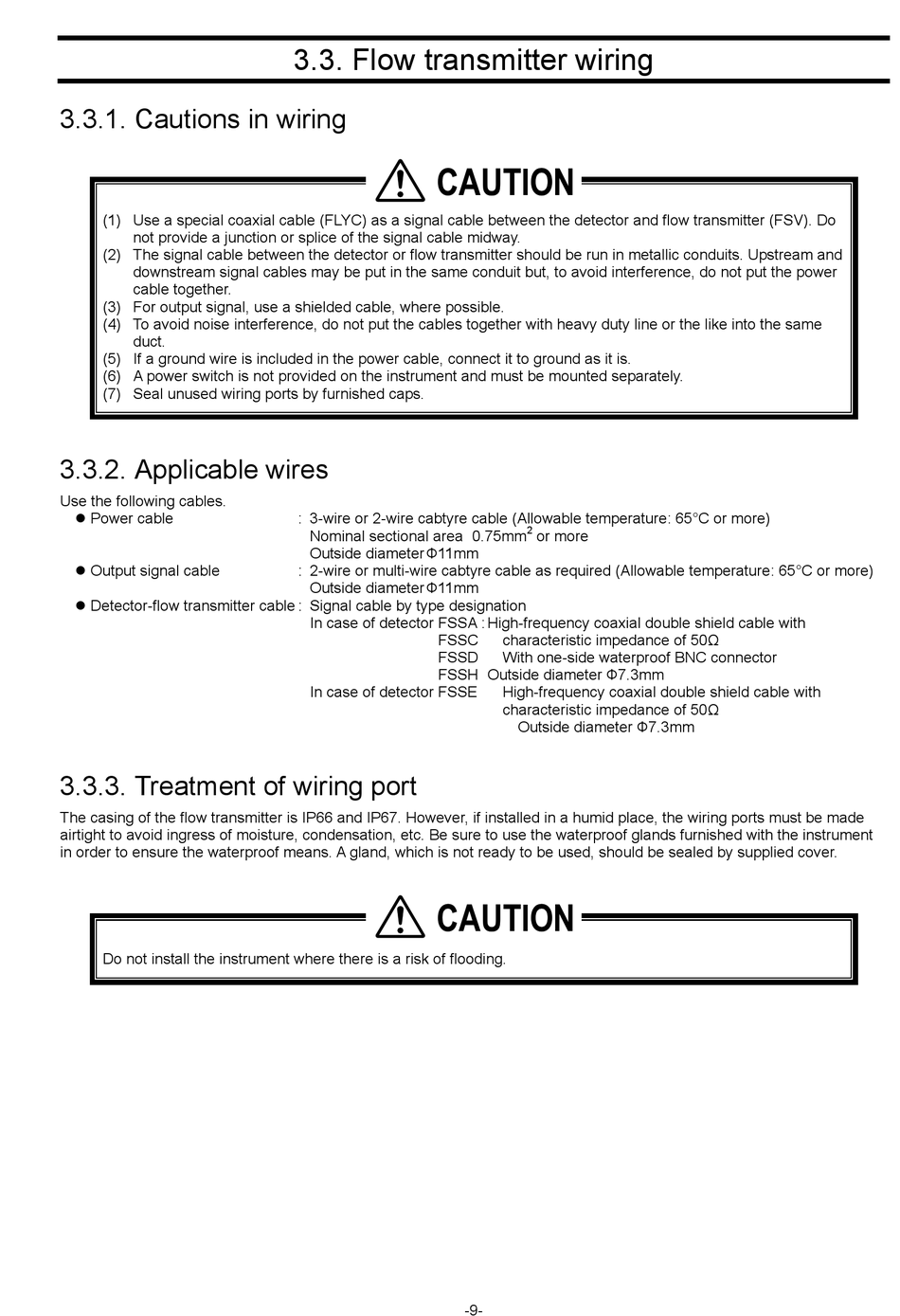

3.3. Flow transmitter wiring

AUTION
: 3-wire or 2-wire cabtyre cable (Allowable temperature: 65°C or more)
Nominal sectional area 0.75mm
Outside diameter Ф11mm
: 2-wire or multi-wire cabtyre cable as required (Allowable temperature: 65°C or more)
Outside diameter Ф11mm
In case of detector FSSA : High-frequency coaxial double shield cable with
FSSC
FSSD
FSSH Outside diameter Ф7.3mm
In case of detector FSSE
AUTION
2
or more
characteristic impedance of 50Ω
With one-side waterproof BNC connector
High-frequency coaxial double shield cable with
characteristic impedance of 50Ω
Outside diameter Ф7.3mm
-9-
