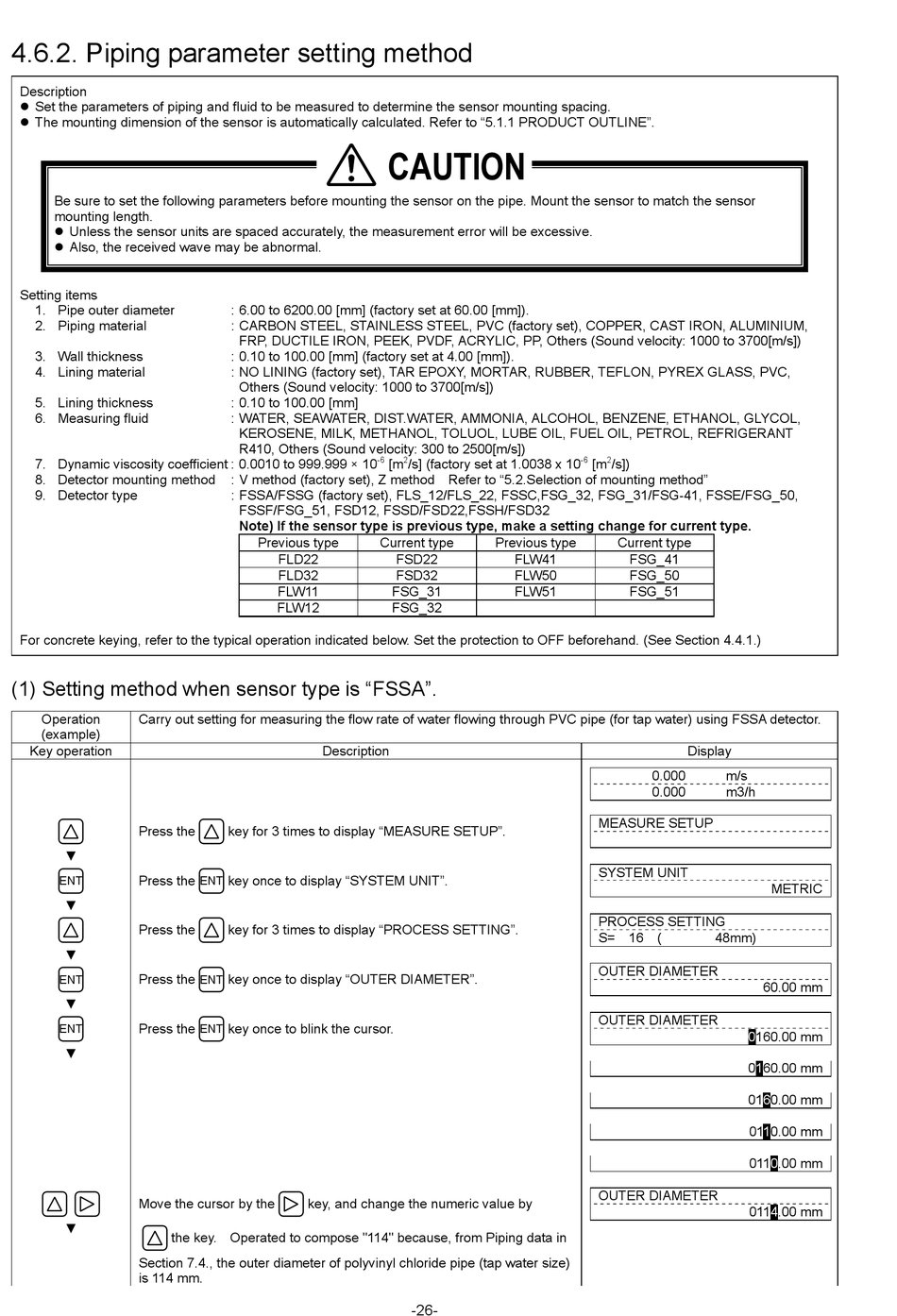

4.6.2. Piping parameter setting method

Description
 Set the parameters of piping and fluid to be measured to determine the sensor mounting spacing.
 The mounting dimension of the sensor is automatically calculated. Refer to "5.1.1 PRODUCT OUTLINE".
Be sure to set the following parameters before mounting the sensor on the pipe. Mount the sensor to match the sensor
mounting length.
 Unless the sensor units are spaced accurately, the measurement error will be excessive.
 Also, the received wave may be abnormal.
Setting items
1. Pipe outer diameter
2. Piping material
3. Wall thickness
4. Lining material
5. Lining thickness
6. Measuring fluid
7. Dynamic viscosity coefficient : 0.0010 to 999.999 × 10
8. Detector mounting method
9. Detector type
For concrete keying, refer to the typical operation indicated below. Set the protection to OFF beforehand. (See Section 4.4.1.)
(1) Setting method when sensor type is "FSSA".
Operation Carry out setting for measuring the flow rate of water flowing through PVC pipe (for tap water) using FSSA detector.
(example)
Key operation
Press the
▼
Press the
ENT
▼
Press the
▼
Press the
ENT
▼
Press the
ENT
▼
Move the cursor by the
▼
the key. Operated to compose "114" because, from Piping data in
Section 7.4., the outer diameter of polyvinyl chloride pipe (tap water size)
is 114 mm.
: 6.00 to 6200.00 [mm] (factory set at 60.00 [mm]).
: CARBON STEEL, STAINLESS STEEL, PVC (factory set), COPPER, CAST IRON, ALUMINIUM,
FRP, DUCTILE IRON, PEEK, PVDF, ACRYLIC, PP, Others (Sound velocity: 1000 to 3700[m/s])
: 0.10 to 100.00 [mm] (factory set at 4.00 [mm]).
: NO LINING (factory set), TAR EPOXY, MORTAR, RUBBER, TEFLON, PYREX GLASS, PVC,
Others (Sound velocity: 1000 to 3700[m/s])
: 0.10 to 100.00 [mm]
: WATER, SEAWATER, DIST.WATER, AMMONIA, ALCOHOL, BENZENE, ETHANOL, GLYCOL,
KEROSENE, MILK, METHANOL, TOLUOL, LUBE OIL, FUEL OIL, PETROL, REFRIGERANT
R410, Others (Sound velocity: 300 to 2500[m/s])
: V method (factory set), Z method Refer to "5.2.Selection of mounting method"
: FSSA/FSSG (factory set), FLS_12/FLS_22, FSSC,FSG_32, FSG_31/FSG-41, FSSE/FSG_50,
FSSF/FSG_51, FSD12, FSSD/FSD22,FSSH/FSD32
Note) If the sensor type is previous type, make a setting change for current type.
Previous type
FLD22
FLD32
FLW11
FLW12
Description
key for 3 times to display "MEASURE SETUP".
key once to display "SYSTEM UNIT".
ENT
key for 3 times to display "PROCESS SETTING".
key once to display "OUTER DIAMETER".
ENT
key once to blink the cursor.
ENT
key, and change the numeric value by
AUTION
-6 2
[m /s] (factory set at 1.0038 x 10
Current type Previous type
FSD22 FLW41
FSD32 FLW50
FSG_31 FLW51
FSG_32
-26-
-6 2
[m /s])
Current type
FSG_41
FSG_50
FSG_51
Display
0.000 m/s
0.000 m3/h
MEASURE SETUP
SYSTEM UNIT
PROCESS SETTING
S= 16 ( 48mm)
OUTER DIAMETER
OUTER DIAMETER
0160.00 mm
0160.00 mm
0160.00 mm
0110.00 mm
0110.00 mm
OUTER DIAMETER
0114.00 mm
METRIC
60.00 mm
