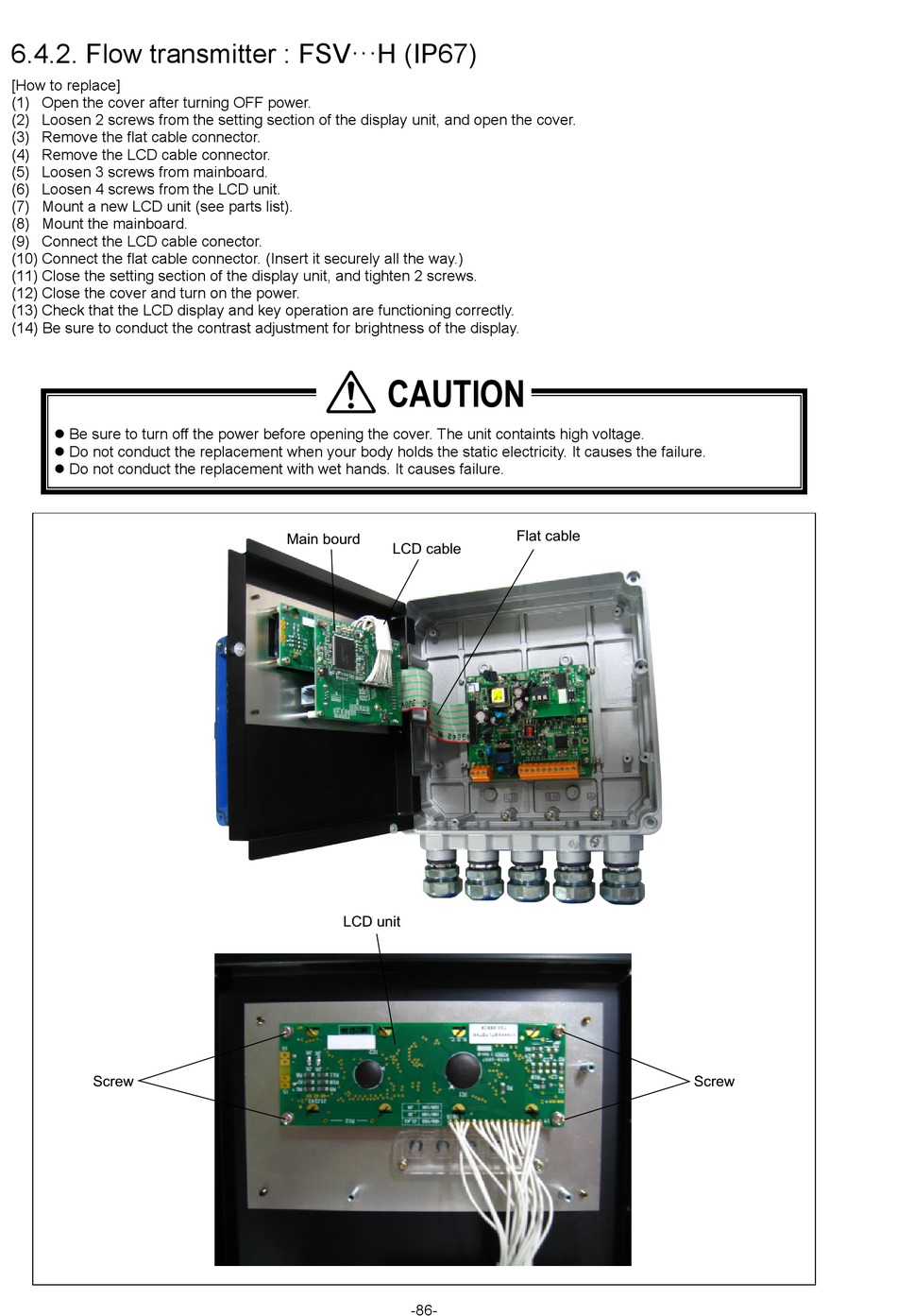

6.4.2. Flow transmitter : FSV···H (IP67)
[How to replace]
(1) Open the cover after turning OFF power.
(2) Loosen 2 screws from the setting section of the display unit, and open the cover.
(3) Remove the flat cable connector.
(4) Remove the LCD cable connector.
(5) Loosen 3 screws from mainboard.
(6) Loosen 4 screws from the LCD unit.
(7) Mount a new LCD unit (see parts list).
(8) Mount the mainboard.
(9) Connect the LCD cable conector.
(10) Connect the flat cable connector. (Insert it securely all the way.)
(11) Close the setting section of the display unit, and tighten 2 screws.
(12) Close the cover and turn on the power.
(13) Check that the LCD display and key operation are functioning correctly.
(14) Be sure to conduct the contrast adjustment for brightness of the display.
 Be sure to turn off the power before opening the cover. The unit containts high voltage.
 Do not conduct the replacement when your body holds the static electricity. It causes the failure.
 Do not conduct the replacement with wet hands. It causes failure.
Screw
AUTION
Main bourd
LCD cable
LCD unit
-86-
Flat cable
Screw
