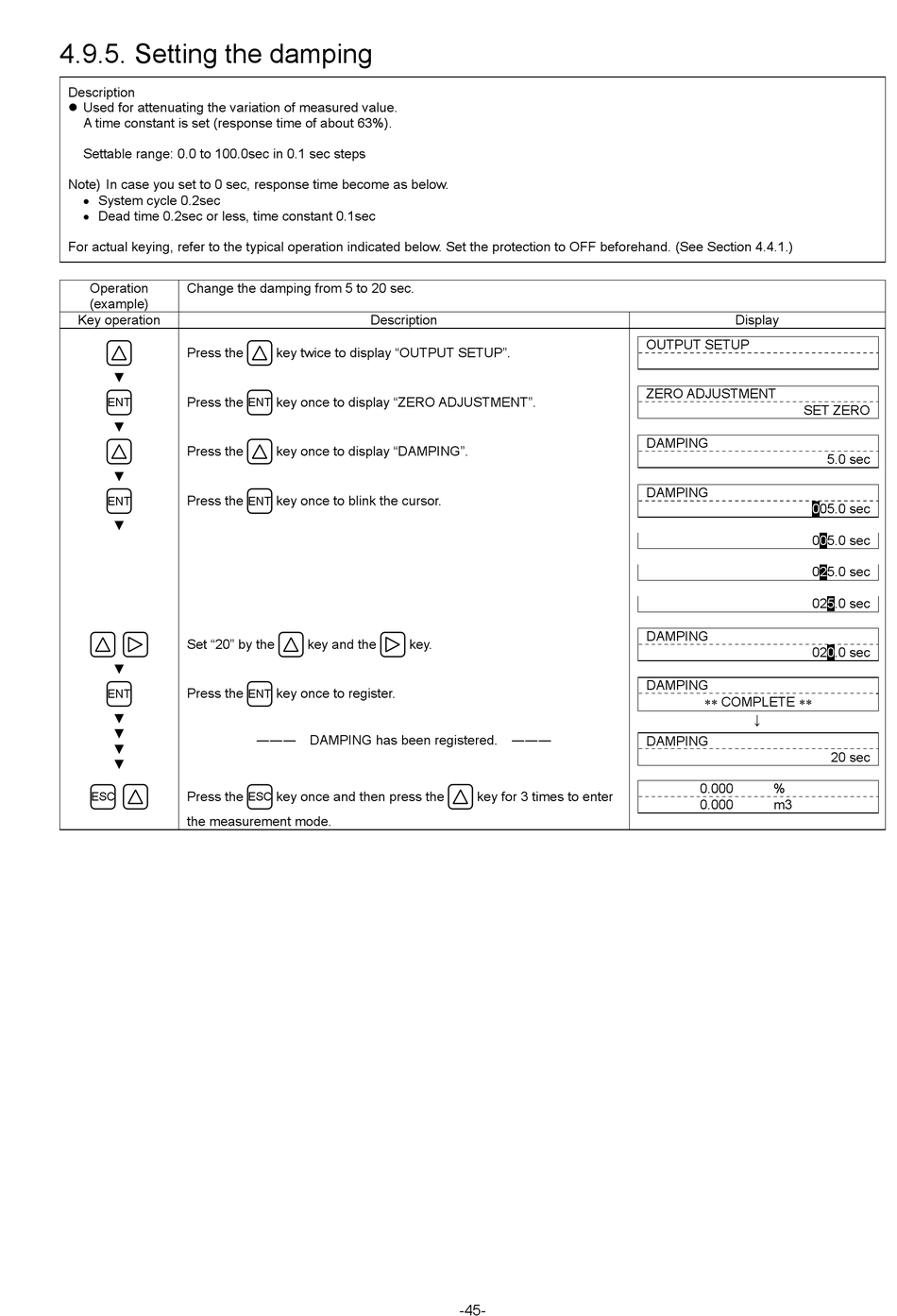

4.9.5. Setting the damping

Description
 Used for attenuating the variation of measured value.
A time constant is set (response time of about 63%).
Settable range: 0.0 to 100.0sec in 0.1 sec steps
Note) In case you set to 0 sec, response time become as below.
 System cycle 0.2sec
 Dead time 0.2sec or less, time constant 0.1sec
For actual keying, refer to the typical operation indicated below. Set the protection to OFF beforehand. (See Section 4.4.1.)
Operation Change the damping from 5 to 20 sec.
(example)
Key operation
Press the
▼
Press the
ENT
▼
Press the
▼
Press the
ENT
▼
Set "20" by the
▼
Press the
ENT
▼
▼
▼
▼
Press the
ESC
the measurement mode.
Description
key twice to display "OUTPUT SETUP".
key once to display "ZERO ADJUSTMENT".
ENT
key once to display "DAMPING".
key once to blink the cursor.
ENT
key and the key.
key once to register.
ENT
――― DAMPING has been registered. ―――
key once and then press the
ESC
key for 3 times to enter
-45-
Display
OUTPUT SETUP
ZERO ADJUSTMENT
SET ZERO
DAMPING
DAMPING
005.0 sec
005.0 sec
025.0 sec
025.0 sec
DAMPING
020.0 sec
DAMPING
 COMPLETE 
↓
DAMPING
0.000 %
0.000 m3
5.0 sec
20 sec
