Flow Transmitter : Fsv - Fuji Electric Time Delta-C FSV-2 Instruction Manual

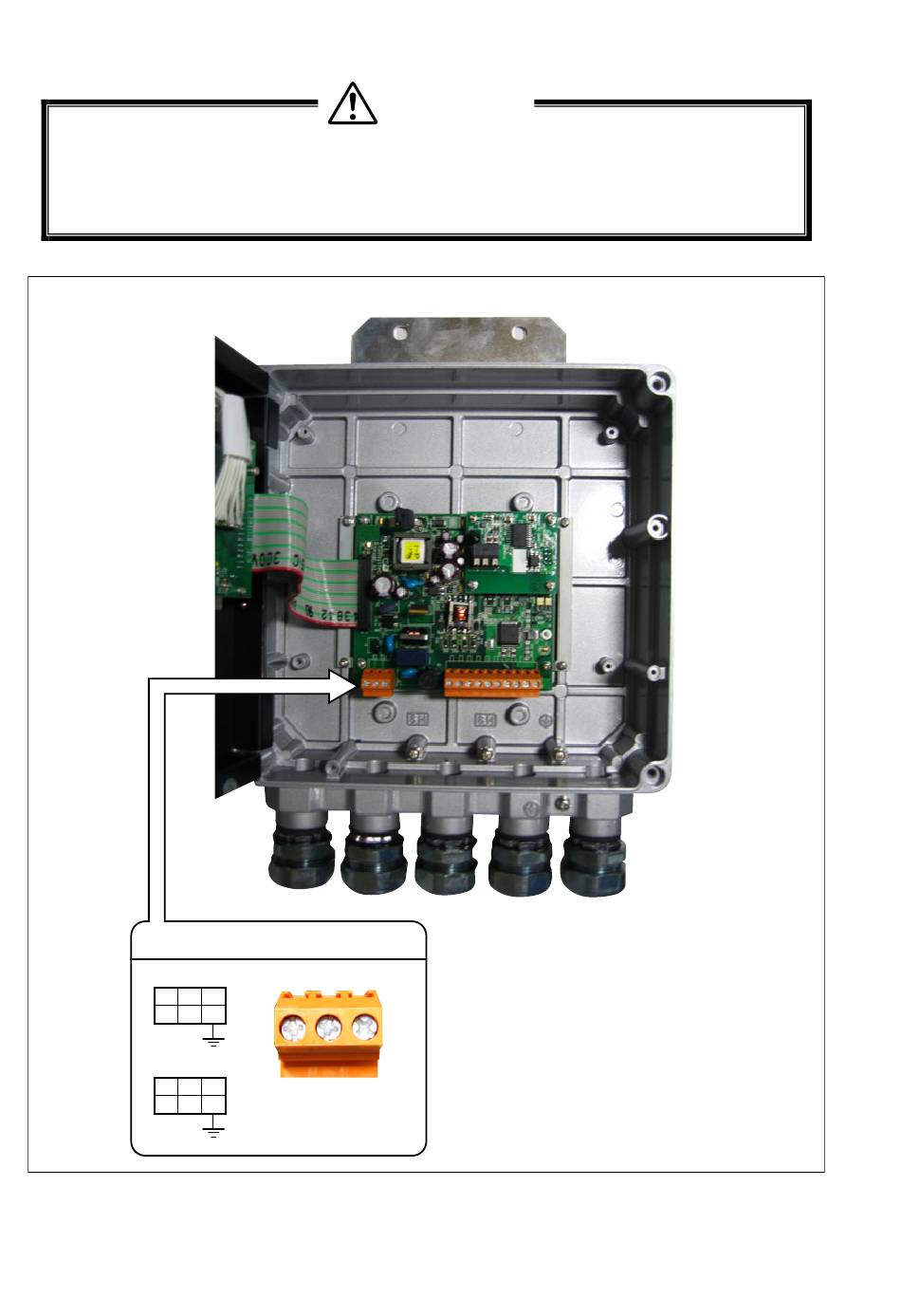

6.2.3.2. Flow transmitter : FSV···H (IP67)
Turn off power before opening the flow transmitter cover.
The power terminals are provided with an arrester as standard.
Measurement point: measure between power terminal and ground terminal, each outputs and ground terminal.
The insulation resistance performance of the equipment is 100 MΩ/500 V DC.
Power supply board terminal block
AC power supply
1
L
DC power supply
1
+
2 3
L N GND
N FG
2 3
- FG
AUTION
GND
