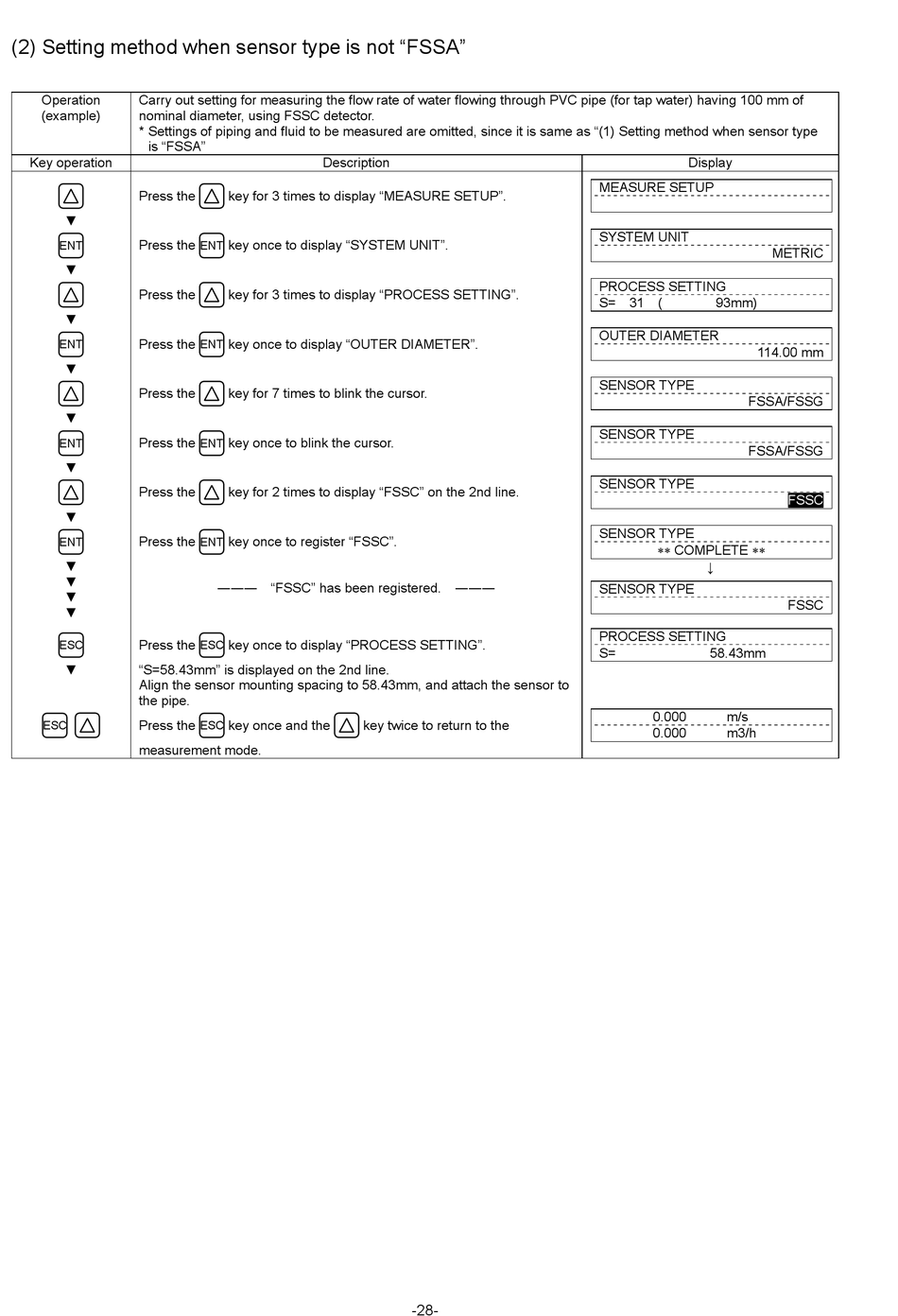

Fuji Electric Time Delta-C FSV-2 Instruction Manual page 36

(2) Setting method when sensor type is not "FSSA"
Operation Carry out setting for measuring the flow rate of water flowing through PVC pipe (for tap water) having 100 mm of
(example) nominal diameter, using FSSC detector.
* Settings of piping and fluid to be measured are omitted, since it is same as "(1) Setting method when sensor type
is "FSSA"
Key operation
Press the
▼
Press the
ENT
▼
Press the
▼
Press the
ENT
▼
Press the
▼
Press the
ENT
▼
Press the
▼
Press the
ENT
▼
▼
▼
▼
Press the
ESC
▼
"S=58.43mm" is displayed on the 2nd line.
Align the sensor mounting spacing to 58.43mm, and attach the sensor to
the pipe.
Press the
ESC
measurement mode.
Description
key for 3 times to display "MEASURE SETUP".
key once to display "SYSTEM UNIT".
ENT
key for 3 times to display "PROCESS SETTING".
key once to display "OUTER DIAMETER".
ENT
key for 7 times to blink the cursor.
key once to blink the cursor.
ENT
key for 2 times to display "FSSC" on the 2nd line.
key once to register "FSSC".
ENT
――― "FSSC" has been registered. ―――
key once to display "PROCESS SETTING".
ESC
key once and the key twice to return to the
ESC
