3.3.5.3. How to connect to communication terminal block.

Please prepare the flathead screwdriver (head size: 0.6 x 3.5mm) so as to connect the cable.

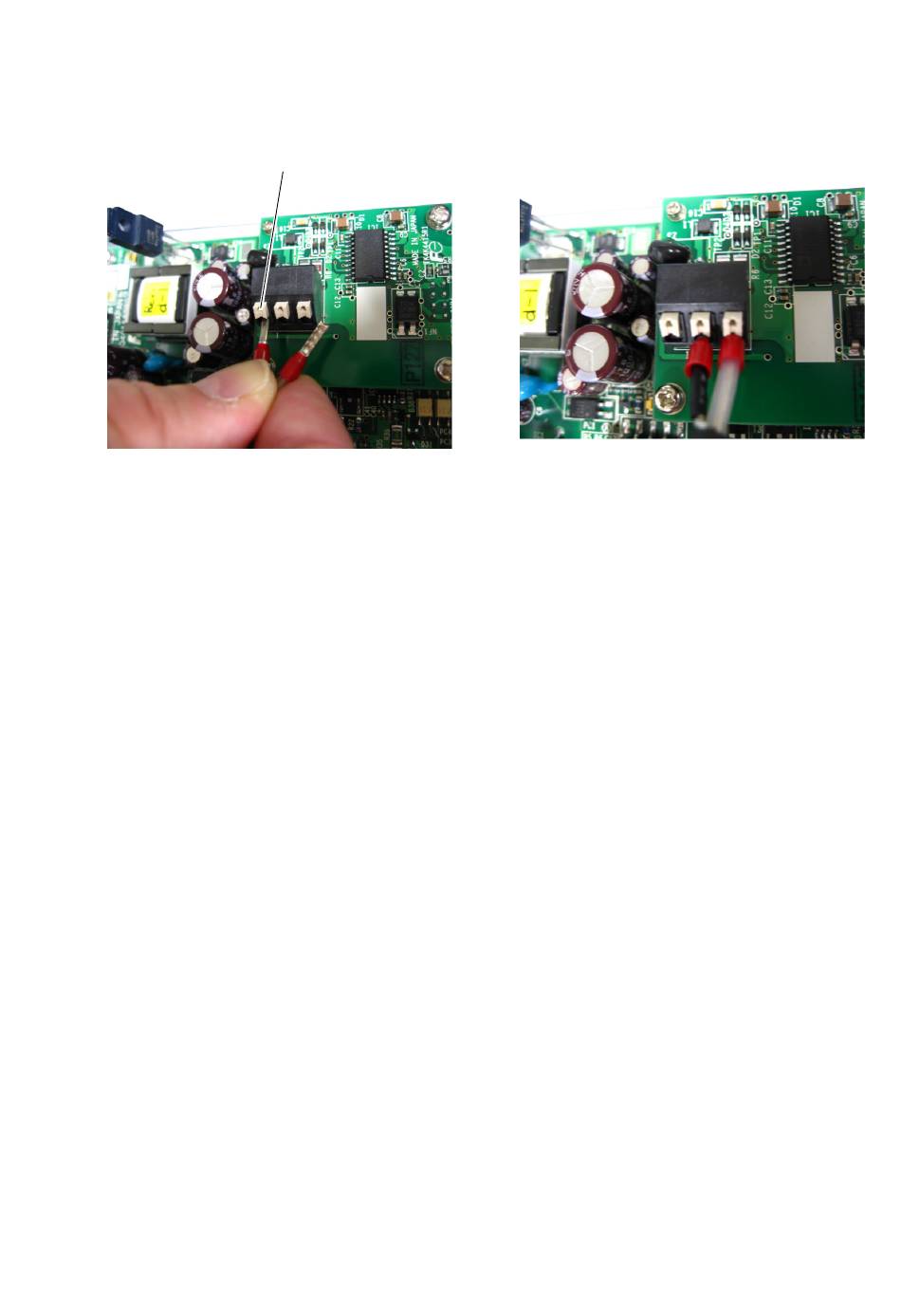

1. Push the clamp so as to open the connector.

2. Insert the cable to the connector and release the clamp to fix the cable.

Clamp

-13-
