- Page 1 JR-P / JR20-P USER MANUAL FD3580 / FD3581 UNIVERSAL DIGITAL INDICATOR FOR PROCESS, TEMPERATURE AND RESISTANCE INPUT SIGNAL KOSMOS SERIE www.ditel.es...
-
Page 2: Table Of Contents
FD3580 / FD3581 INDEX GENERAL INFORMATION Package contents ......................4 Recycling instrucctions ....................4 General safety considerations ..................4 Symbols identification ....................4 Maintenance ........................5 Warranty ........................5 Conformity declaration ....................6 Device description ......................7 Dimensions and mounting ....................7 Display and keyboard ..................... -
Page 3: Index
FD3580 / FD3581 INDEX SPECIFICATIONS Technical specifications ....................25 FD3000 serie www.fujielectric.fr... -
Page 4: General Information
FD3580 / FD3581 GENERAL INFORMATION This manual does not constitute a contract or a commitment on the part of Fuji Electric France S.A.S. All information contained in this document is subject to change without prior notice. MANUAL VALID FOR INSTRUMENTS WITH P2.02 SOFT VERSION OR HIGHER... -
Page 5: Maintenance
FD3580 / FD3581 Maintenance To guarantee instrument accuracy, it is recommended to checking its compliance according to the technical specifications listed in this manual, performing calibrations regularly in accordance to operation criteria in each application. Instrument calibration and/or adjustment should be performed only by an accredited laboratory or directly by the manufacturer. -
Page 6: Conformity Declaration
FD3580 / FD3581 Conformity declaration Manufacturer: DITEL - Diseños y Tecnología S.A. EN 61326-1 Electrical equipment for measurement, control and Adress: Xarol, 8C P.I. Les Guixeres laboratory use (EMC) 08915 Badalona. SPAIN EN 61000-4-2 Electrostatic discharge (ESD) Criterion B Air discharge 8kV... -
Page 7: Device Description

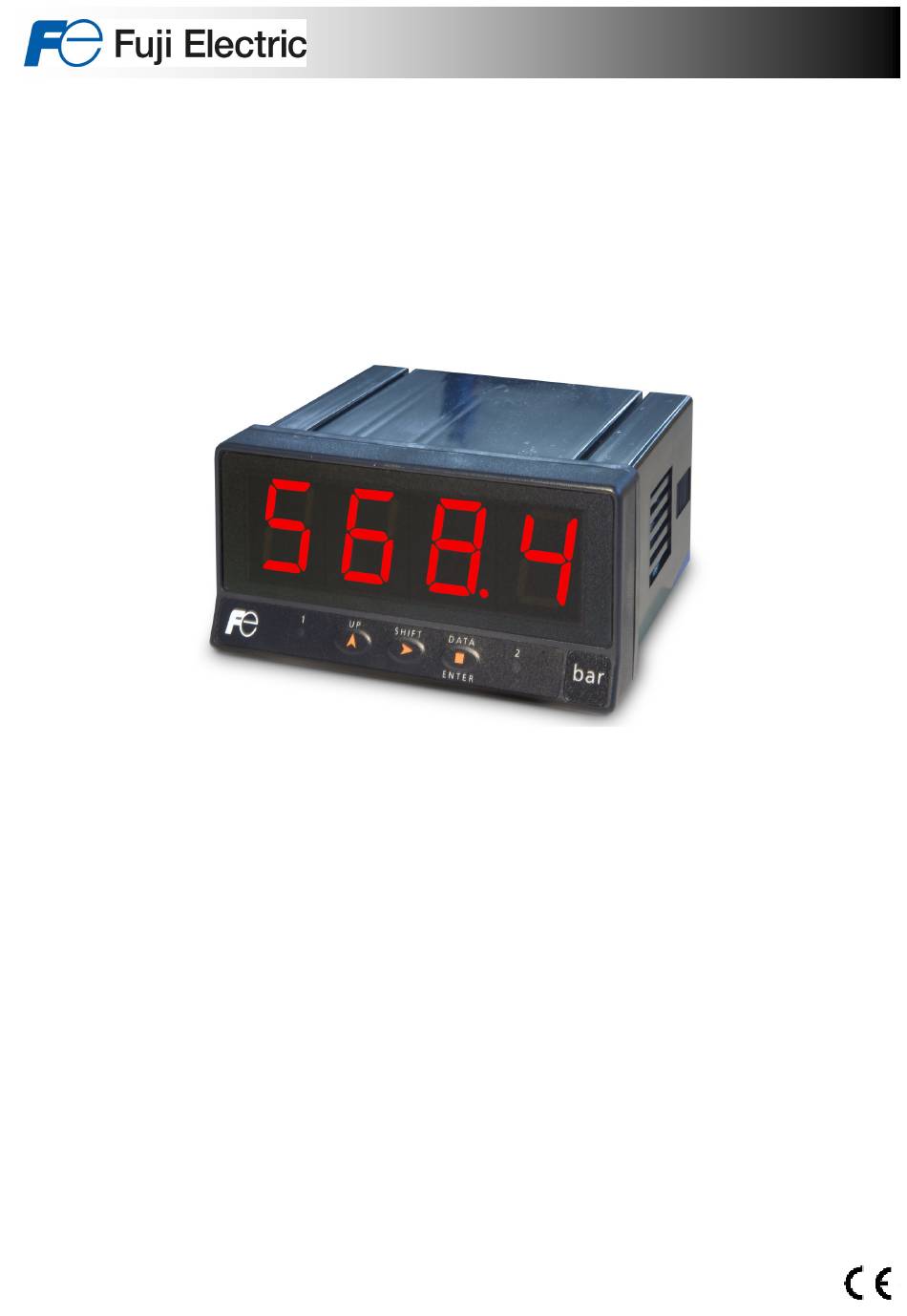

FD3580 and FD3581 has 20mm-high digits and a m ax im um range of -1999 to 9999. JR20-P has a larger display to provide a better reading at longer distance, although minus LED sign is integrated in the most significative digit. -
Page 8: Display And Keyboard
FD3580 / FD3581 Display and keyboard There are two main function modes: RUN and PRO. PRO m ode is w hen configuration menu is entered to programm indicator, whereas RUN is the norm al m ode in w hich display shows the reading according to configuration and input signal value. -
Page 9: Connections
FD3580 / FD3581 Connections Rear connectors location. Basic instrument has two rear connectors CN1 and CN2. If 2RE output option card is installed, two more connectors CN3 and CN4 appear. See all four connectors location and their pin out in the right figure. -
Page 10: Process Input (Ma)
FD3580 / FD3581 3 WIRES CONNECTION WITH EXCITATION SUPPLIED BY THE INDICATOR 3 WIRES CONNECTION WITH EXTERNAL EXCITATION INDICATOR TRANSDUCER INDICATOR TRANSDUCER 0-10V 0-10V 0-200V 0-200V +OUT -OUT +EXC. +OUT -OUT +EXC. COM. +EXC. COM. EXC. Process input signal wiring diagrams (mA) -
Page 11: Pt100 And Pt1000 Sensor Input
FD3580 / FD3581 Pt100 and Pt1000 sensor input wiring diagram (ºC) Pt100 SENSOR INDICATOR Pt1000 SENSOR INDICATOR Pt100 COM. Pt100 Pt1000 Pt100 Pt1000 Thermocouple J, K, T and N input wiring diagram (ºC or ºF) INDICATOR J,K,T,N Resistance input wiring diagram () -
Page 12: Input Configuration
FD3580 / FD3581 INPUT CONFIGURATION Configuration menu When connecting instrument to Power supply, display test begins automatically to check the good function of LED’s and digits, once this test is finished, display shows internal software version and then the unit goes to RUN mode. -
Page 13: Process
FD3580 / FD3581 Process ProC The parameters to be configured in input process submenu are: INPUT TYPE: V DC: ±10V or ±200V (-tachometric dynamo-) ±20mA (single range, direct validation) 200U Temperature tEMP The parameters to be configured in input temperature submenu are:... -
Page 14: Resistance
FD3580 / FD3581 Resistance The only parameter to be configured in input temperature submenu is: RESISTANCE RANGE: 999.9: 999.9 (1k) Range 999.9 9999 50.00 9999: 9999 (10k) Range 50.00: 50.00k (50k) Range FD3000 serie www.fujielectric.fr... -
Page 15: Display Configuration
FD3580 / FD3581 DISPLAY CONFIGURATION Display Programming The second menu corresponds to display configuration. This, in turn, consists of some submenus according to previously programmed input type: through frontal keys configuration (SCAL or uSEr), through real input signal (TEACH) (tEAC), calibrated range ( CAL) and reading stabilization filter ( FiLt). -
Page 16: Process Input
FD3580 / FD3581 Process input When programmed input type is process, for both display scaling SCAL tEAC “SCAL” and “tEAC” methods, parameters to be sequentially introduced are identical. It only must be considered that in “SCAL” method, all values must be manually introduced through the three frontal keys whereas in “tEAC”... -
Page 17: Potentiometer Input
FD3580 / FD3581 Potentiometer input When programmed input type is potentiometer, “tEAC” is the only method available to perform display scaling. In this case, it must be assured first that potentiometer is connected properly and that it is not subjected to any external voltage. -
Page 18: Setpoints Configuration
FD3580 / FD3581 SETPOINTS CONFIGURATION Setpoints configuration The third menu “SEtP” only appears when two relays output card is SEtP installed. For further details on function modes please refer to the corresponding OUTPUT OPTION part later on this manual. Programming steps are equal for both relays on each “SEt1” and “SEt2”... -
Page 19: Available Keyboard Functions
FD3580 / FD3581 AVAILABLE KEYBOARD FUNCTIONS In addition to already known functions used to browse through the configuration menus and submenus, introduce and/or modify existing values and parameters, the instrument provides some more added functions. MAX/MIN and RESET functions This device detects and stores in memory maximum and minimum values reached by the input signal. This values are kept in memory although power supply is desconnected. -
Page 20: Access To Lock-Out Configuration Menu
FD3580 / FD3581 Access to lock-out configuration menu To access this menu from RUN mode, press ENTER key for at least 3 seconds. 8888 Display shows now “CodE” and then “0000”. Desired security code must be introduced through SHIFT and UP keys (by default this code is 0000). -
Page 21: Configuration Lock-Out
FD3580 / FD3581 CONFIGURATION LOCK-OUT Lock-out menu In order to prevent accidental or indesirable modifications of instrument parameters, a selective or total configuration lock-out is available. By default the unit is delivered unlocked, giving access to all programming levels. Once in this menu, the first option will be to choose between lock-out level setting (“LiSt”) or security access code changing (“CHAn”). - Page 22 FD3580 / FD3581 Now it is posible to configure SHIFT key lock-out for MAX/MIN function in the same way as previous configurations. When lock-out is enabled (selecting “yES”) it is not possible to visualize maximum or minimum values by pressing SHIFT key, although instrument internally continues detecting and saving new extreme values reached by input signal.
-
Page 23: Output Option
FD3580 / FD3581 OUTPUT OPTION Description 2RE output option allows JR-P and JR20-P models to perform control operations and limit values treatment via ON/ OFF logic outputs. It is supplied as an independent card that is connected to main board without any additional operation since internal software recognizes it once it is installed. -
Page 24: Installation
FD3580 / FD3581 Installation To physically install the output option, the electronics assembly should be first lifted out from the case. Use a screwdriver or similar to slightly press both side tabs until the rear case is released. Then broke the junctions from the corresponding polycarbonate cover in order to obtain the required orifice in the case. -
Page 25: Specifications
DISPLAY ±(1%rdg + 0.5ºC)* -200ºC to +800ºC 1ºC Range: FD3580/3581 ......-1999 ÷ 9999, 20mm RED LED *Only for temperatures t<-50ºC/-58ºF Decimal point ............Configurable LEDs ......... 2 for setpoints state indication Display refresh rate ............50ms Pt1000 (2 wires) Display/input overrange indication .... - Page 26 FD3580 / FD3581 RESISTANCE 999.9 range max. measurement current ...... 2.3mA 9999 range max. measurement current ....... 230A 50.00k range max. measurement current ...... 23A EMI max. Influence (999.9) ........±0.7 EMI max. Influence (9999) ..........±2 EMI max. Influence (50.00k) ........±20...
-
Page 27: Instrument Configuration
FD3580 / FD3581 NOTES: INSTRUMENT CONFIGURATION Use the following template for the annotation of configured parameters in your instrument for later consulting or data recover. INPUT: TYPE: RANGE: DISPLAY: CONFIG. MODE: SCAL TEACH INPUT 1: DISPLAY 1: INPUT 2: DISPLAY 2: FILTER (0 ÷... - Page 28 JR-P / JR20-P FD3580 / FD3581 Fuji Electric France S.A.S. Tel. +33 (0)4 73 98 26 98 46 rue Georges Besse - ZI du Brézet Fax +34 (0)4 73 98 26 99 SÉRIE FD3000 www.fujielectric.fr 63039 Clermont-Ferrand CEDEX02 - France...
