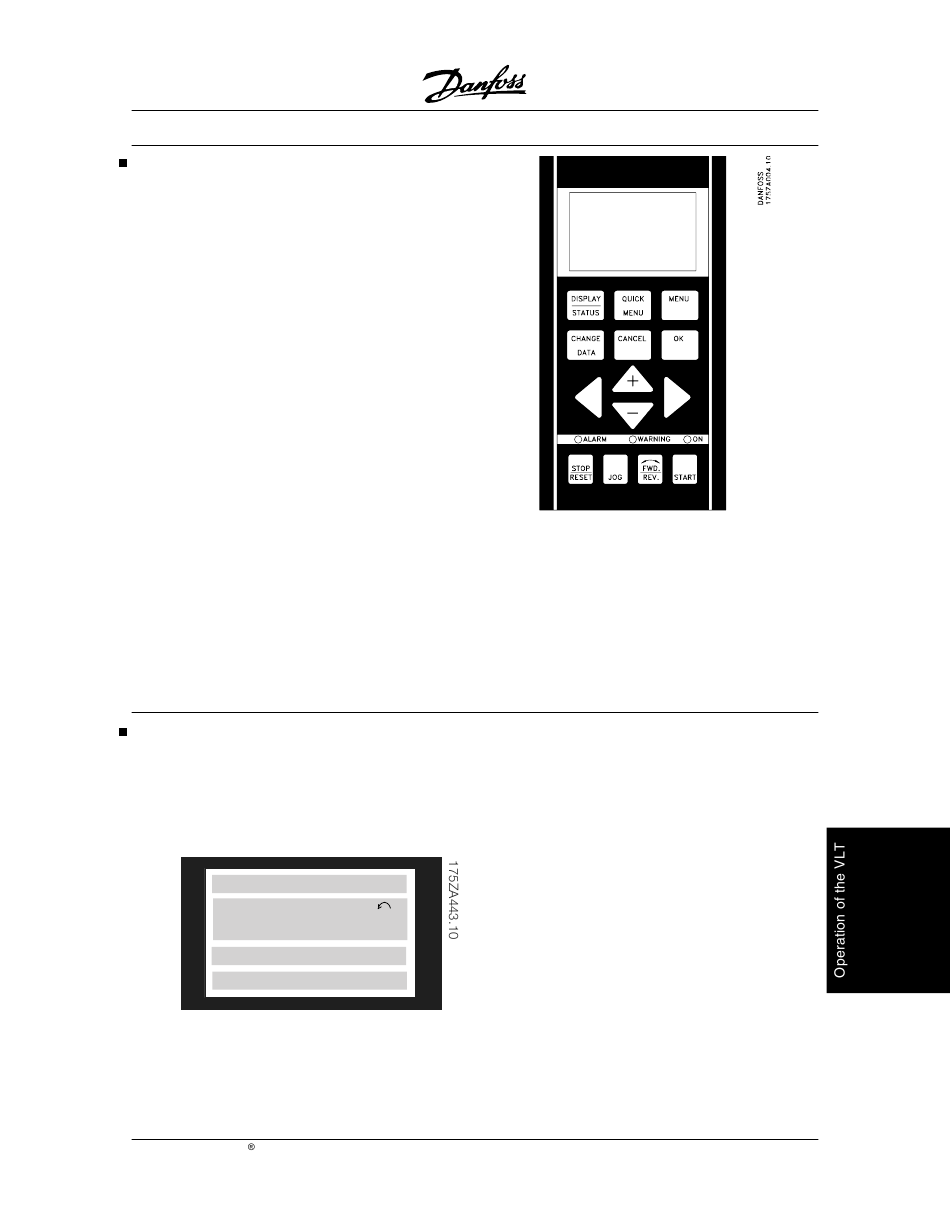

Control panel (LCP)

The front of the adjustable frequency drive features a
control panel - LCP (Local Control Panel), which
makes up a complete interface for operation and mon-
itoring of the VLT 5000 Series.
The control panel is detachable and can - as an alter-
native - be installed up to 3 meters away from the
adjustable frequency drive, e.g. on a front panel, by
means of a mounting kit option.
The functions of the control panel can be divided into
three groups:
• display
• keys for changing program parameters
• keys for local operation
All data are indicated by means of a 4-line alpha-nu-
meric display, which in normal operation is able to
show 4 measurements and 3 operating conditions
continuously. During programming, all the information
required for quick, effective parameter Setup of the
adjustable frequency drive will be displayed. As a sup-
plement to the display, there are three LEDs for volt-
age (power or 24 V external), warning and alarm.
All program parameters of the adjustable frequency
drive can be changed immediately from the control
panel, unless this function has been blocked via pa-
rameter 018.

Control panel - display

The LCD-display has rear lighting and a total of 4 al-
pha-numeric lines together with a box that shows the
direction of rotation (arrow) and the chosen Setup as
well as the Setup in which programming is taking place
if that is the case.
12345678901234567890
1st line
12345678
2nd line
12345678901234567890
3rd line
12345678901234567890
4th line
1st line shows up to 3 measurements continuously in
normal operating status or a text which explains the 2
nd line.
MG.51.C5.22 - VLT is a registered Danfoss trademark.
2nd line shows a measurement with related unit con-
tinuously, regardless of status (except in the case of
alarm/warning).
3rd line is normally blank and is used in the menu
mode to show the selected parameter number or pa-
rameter group number and name.
4th line is used in operating status for showing a status
text or in data change mode for showing the mode or
value of the selected parameter.
SETUP
1
An arrow indicates the direction of rotation of the mo-
tor. Furthermore, the Setup which has been selected
as the Active Setup in parameter 004 is shown. When
programming another Setup than the Active Setup, the
number of the Setup which is being programmed will
appear to the right. This second Setup number will
flash.
®
