Torque control, speed feedback

The following must be programmed in order shown:
Function:
Configuration
Rotation, frequency/direction
Reference/feedback range
Minimum reference
Maximum reference
Reference function
Terminal 32, encoder input A
Terminal 33, encoder input B
Encoder feedback, pulses/rev.
Terminal 53, analog input
Terminal 54, analog input
Speed PID lowpass filter
MG.51.C5.22 - VLT is a registered Danfoss trademark.

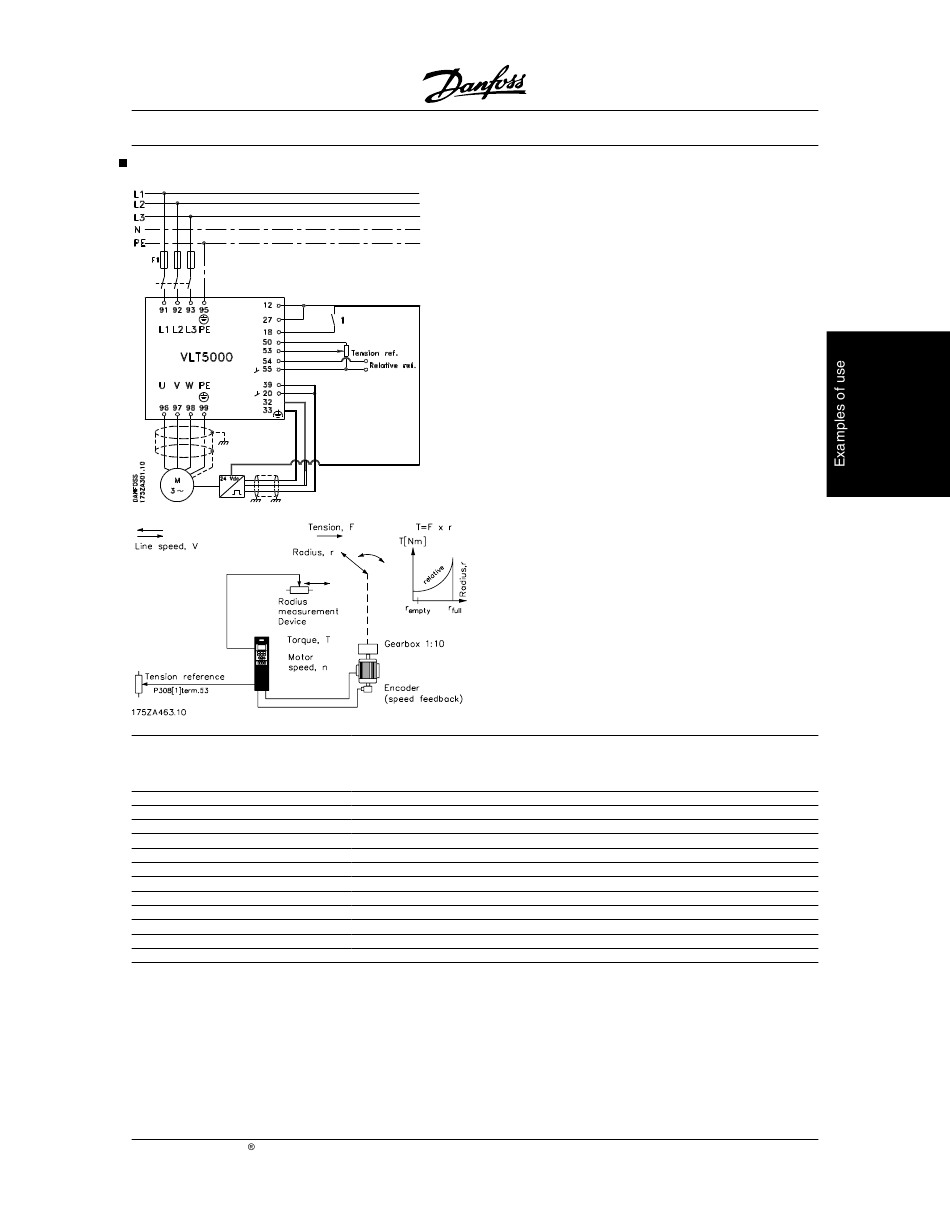

A winder winds material onto a roll or unwinds material
from a roll at a constant tension.
A device measures the radius of the roll and adjusts
the motor torque to ensure that the tension is constant.
The measuring device must have a non-linear output
signal.
Parameter: Setting:
100 Torque control, speed feedback[5]
200 Both directions, 0-132 Hz [1]
203 -Max. - +Max.
204 Set to min. torque (Nm)
205 Set to max. torque (Nm)
214 Relative
306 Encoder feedback, input A
307 Encoder feedback, input B
329 Set to encoder pulses per rev.
308 Reference
311 Relative reference
421 10 msec.
®
VLT 5000 Series
Data value:
[1]
[1]
[25]
[24]
[1]
[4]
171
