Danfoss VLT 5000 Series Instruction Manual page 105

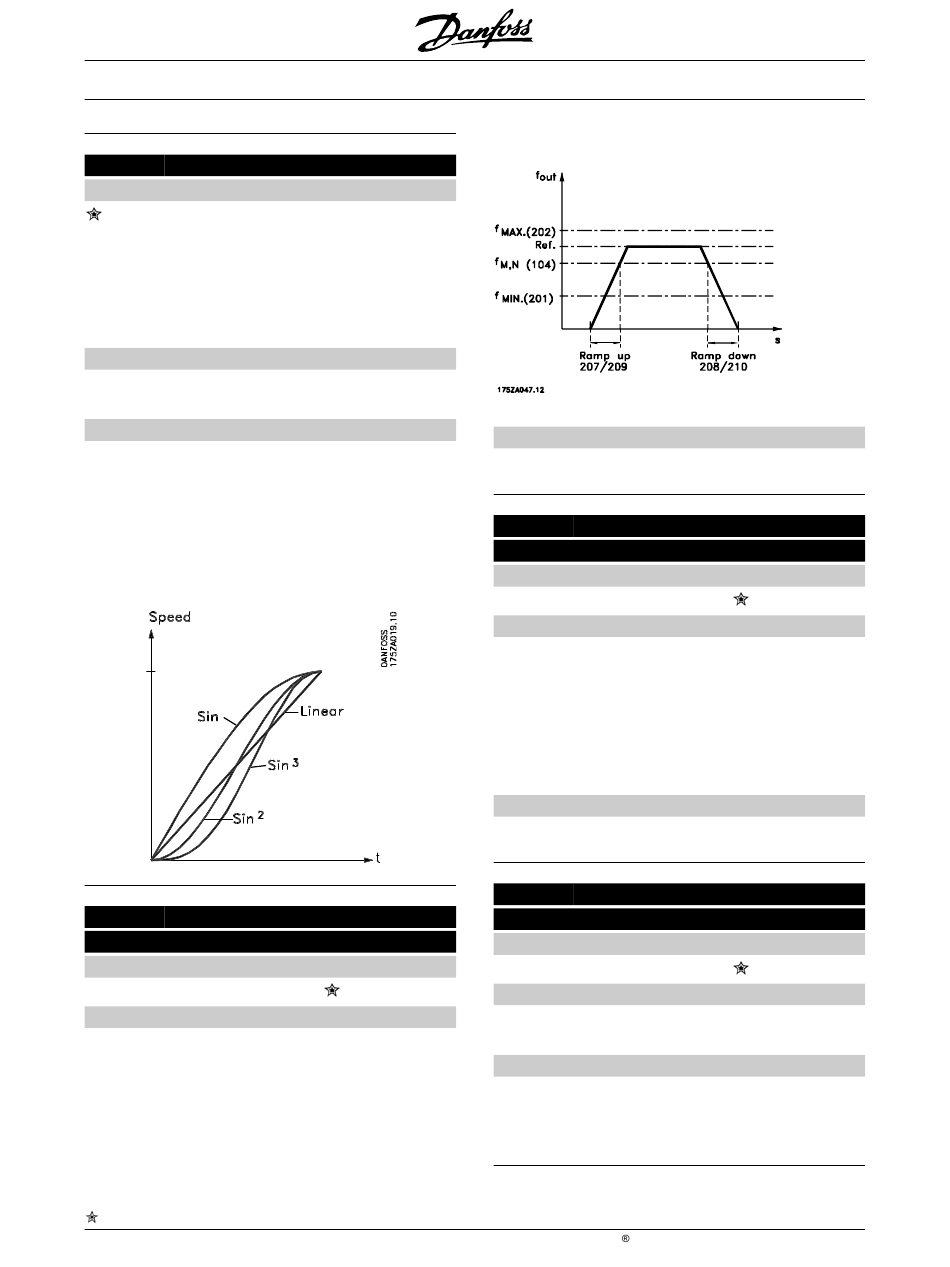

206 Ramp type (RAMP TYPE)
Value:
Linear (LINEAR)
Sinusoidal (S1)
2
Sin (S2)
3
Sin (S3)
2
Sin filter (S2 FILTER)
Function:
There is a choice of 4 different ramp types.
Description of choice:
Select the desired ramp type, depending on require-
ments concerning acceleration/deceleration.
The ramp is recalculated if the reference is changed
during ramping, resulting in an increase of the ramping
time.
2
Selection S filter [4] is not recalculated if the reference
is changed during ramping.
207 Ramp-up time 1
(RAMP UP TIME 1)
Value:
0.05 - 3600 sec.
Function:
The ramp-up time is the acceleration time from 0 Hz to
the rated motor frequency f
rated motor speed n (if Speed control, closed loop
M,N
has been selected in parameter 100). This presuppo-
= factory setting, () = display text, [] = value for use in communication via serial communication port
102
[0]
[1]
[2]
[3]
[4]
depends on unit
(parameter 104) or the
M,N
®
VLT 5000 Series
ses that the output current does not reach the torque
limit (to be set in parameter 221).
Description of choice:
Program the desired ramp-up time.
208 Ramp-down time 1
(RAMP DOWN TIME 1)
Value:
0.05 - 3600 sec.
Function:
The ramp-down time is the deceleration timefrom the
rated motor frequency f
M,N
from the rated motor speed n
over-voltage in the inverter because of regenerative
operation of the motor, or if the generated current rea-
ches the torque limit (to be set in parameter 222).
Description of choice:
Program the desired ramp-down time.
209 Ramp-up time 2
(RAMP UP TIME 2)
Value:
0.05 - 3600 sec.
Function:
See description of parameter 207.
Description of choice:
Program the desired ramp-up time.
Switching from ramp 1 to ramp 2 is effected via a signal
on digital input terminal 16, 17, 29, 32 or 33.
MG.51.C5.22 - VLT is a registered Danfoss trademark.
depends on unit
(parameter 104) to 0 Hz or
, provided there is no
M,N
depends on unit
