322 Terminal 45, output, pulse scaling
(AO 45 PULS SCALE)
Value:
1 - 32000 Hz
Function:
This parameter allows scaling of the pulse output sig-
nal.
Description of choice:
Set the desired value.
323 Relay 01, output
(RELAY 1-3 FUNCT.)
Value:
See description of parameter 319.
Function:
This output activates a relay switch.
Relay switch 01 can be used for bringing status and
warnings. The relay is activated when the conditions
for the relevant data values have been fulfilled.
Activation/deactivation can be delayed in parameter
324/325.
Description of choice:
See description of parameter 319.

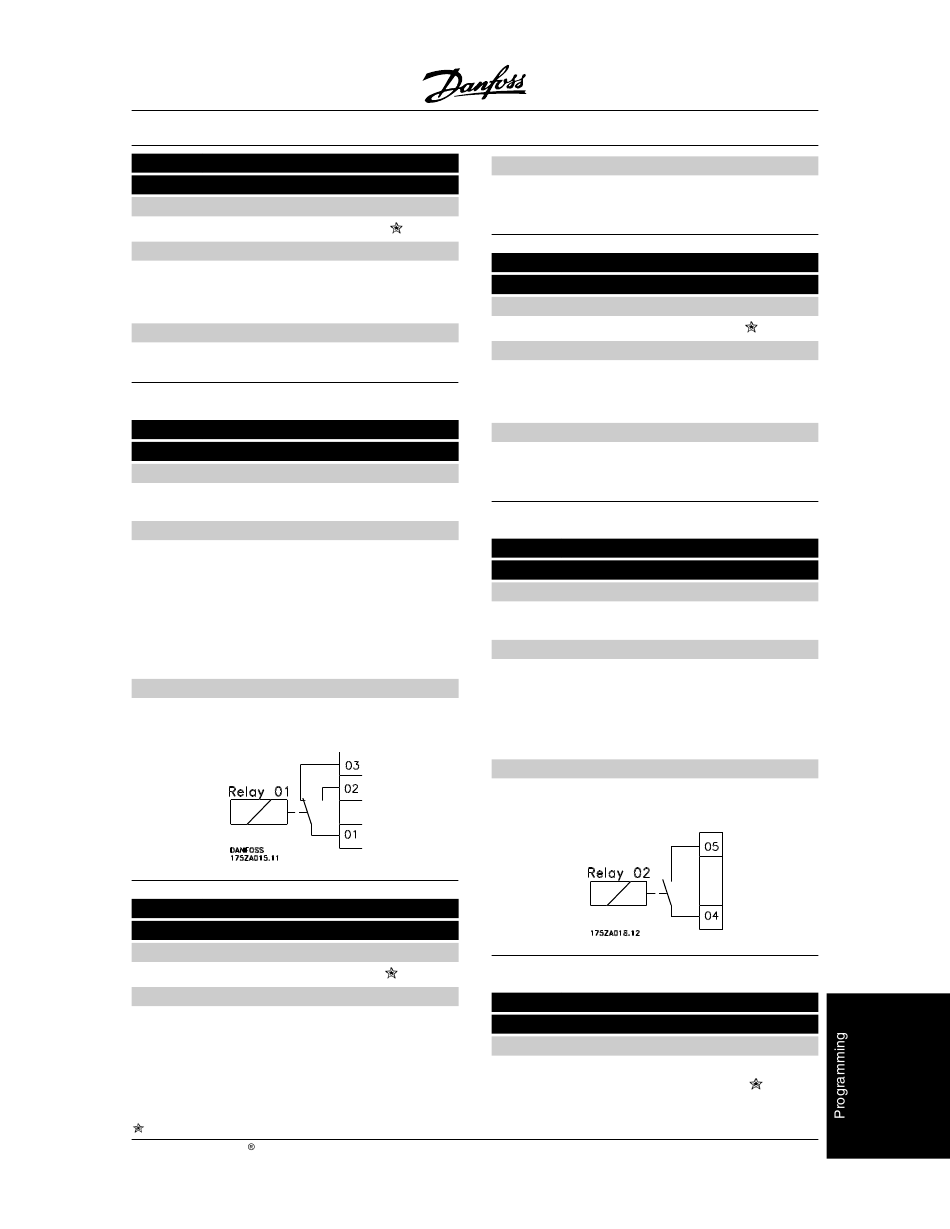

Connections - see the below drawing.
324 Relay 01, ON delay
(RELAY 1-3 ON DL)
Value:
0.00 - 600.00.
Function:
This parameter allows a delay of the cut-in time of relay
01 (terminals 01-02).
= factory setting, () = display text, [] = value for use in communication via serial communication port
MG.51.C5.22 - VLT is a registered Danfoss trademark.
VLT
Description of choice:
Enter the desired value (can be set at intervals of 0.02
sec.).
5000 Hz
325 Relay 01, OFF delay
(RELAY 1-3 OFF DL)
Value:
0.00 - 600.00
Function:
This parameter makes it possible to delay the cut-out
time of relay 01 (terminals 01-03).
Description of choice:
Enter the desired value (can be set at intervals of 0.02
sec.).
326 Relay 04, output
(RELAY 4-5 FUNCT.)
Value:
See description of parameter 319.
Function:
This output activates a relay switch.
Relay switch 04 can be used for bringing status and
warnings. The relay is activated when the conditions
for the relevant data values have been fulfilled.
Description of choice:
See description of parameter 319.
Connections - see the below drawing.
0.00 sec.
327 Pulse reference, max. frequency
(PULSE REF MAX)
Value:
100 - 65000 Hz at terminal 29
100 - 5000 Hz at terminal 17
®
5000 Series
0.00 sec.
5000 Hz
