User Guide

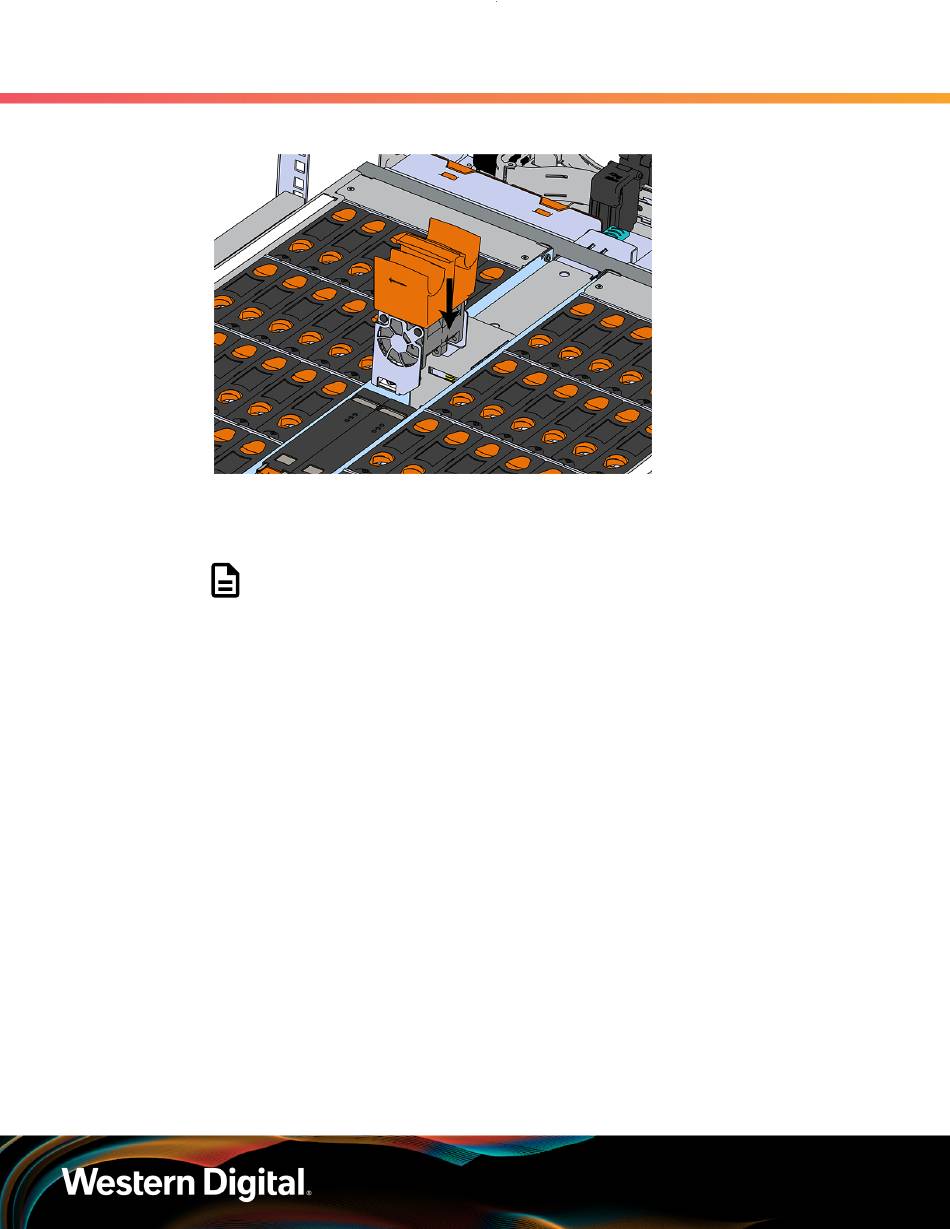

Figure 160: Installing the IOM Fan
b. Pinch the latch release mechanism slightly and carefully lower the IOM Fan into the slot.
Step 37 : Install the 3.5in HDD Assembly.
a. Ensure that the enclosure has been pulled out of the rack until the rail latches engage.
b. Find the LED pointer on the top of the drive carrier. This pointer should point toward the
front of the unit as shown in the following image.
Note: The 2.5in SSD Assembly is installed in the same manner as the 3.5in HDD
Assembly. For instructions on assembling the 2.5in SSD Assembly, see Operating
the 2.5" Drive Carrier (page
).
3. Support
