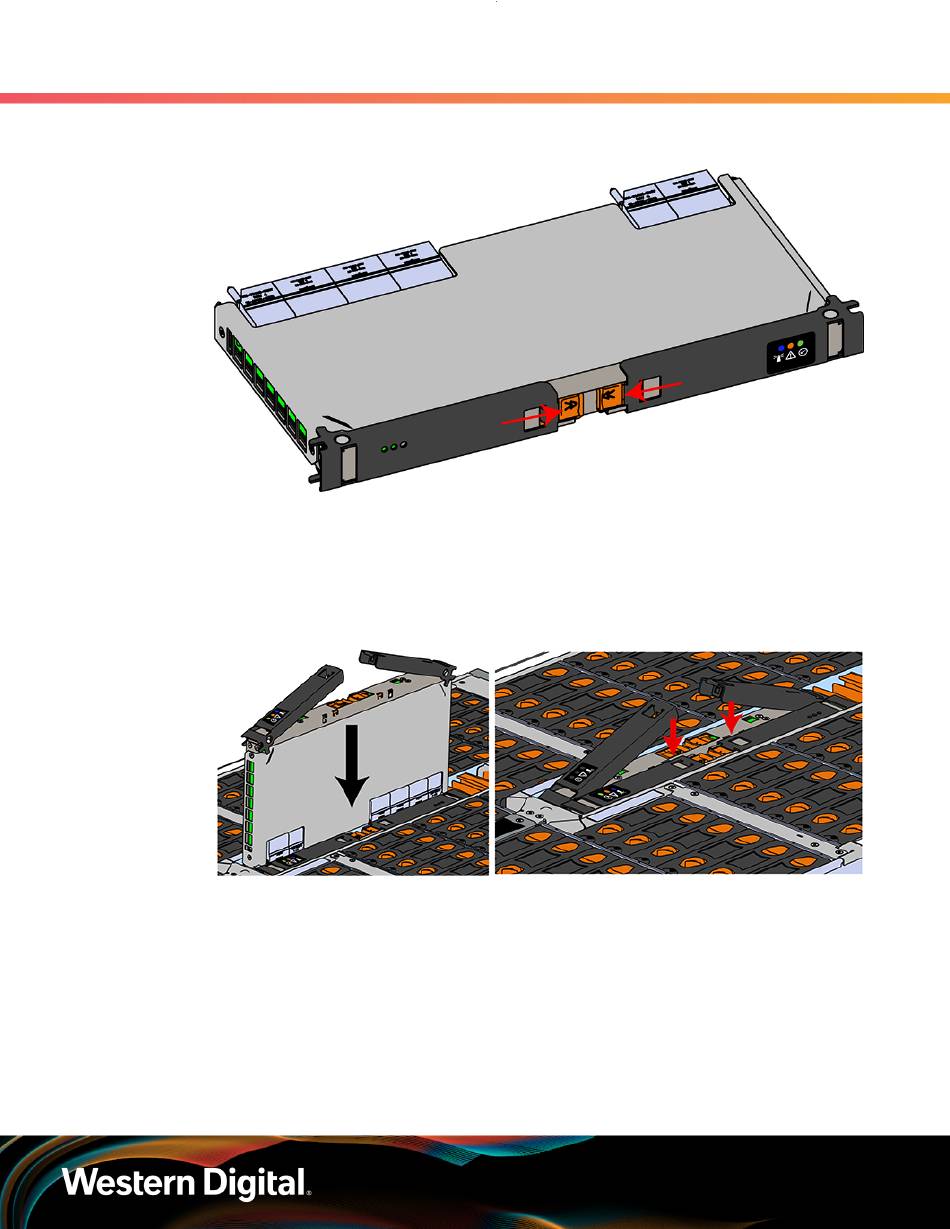

Figure 158: Unlatching IOM Handles
b. Align the IOM with the empty slot on the top of the chassis so that the arrow on the IOM
latch release is facing toward the side shown in the following image.
c. Slowly lower the IOM into the empty slot while being careful to keep it level. Do not to force
it.
Figure 159: Installing the IOM
d. When the IOM is lowered fully, apply light pressure with both hands evenly on the IOM body,
not the handles, to seat the IOM in the connector. If the IOM won't seat correctly, DO NOT
FORCE IT. Instead, back the IOM out, check the pins to make sure none are damaged, and
try again.
e. Once the IOM is seated properly in the slot, close the handles until they latch closed.
Step 35 : Install the second IOM using the same method as the first.
Step 36 : Install the IOM Fan.
a. Align the IOM Fan as shown in the following image.
