User Guide
Optional (if using CMA Tray): M3 x 8mm T10 Torx screws

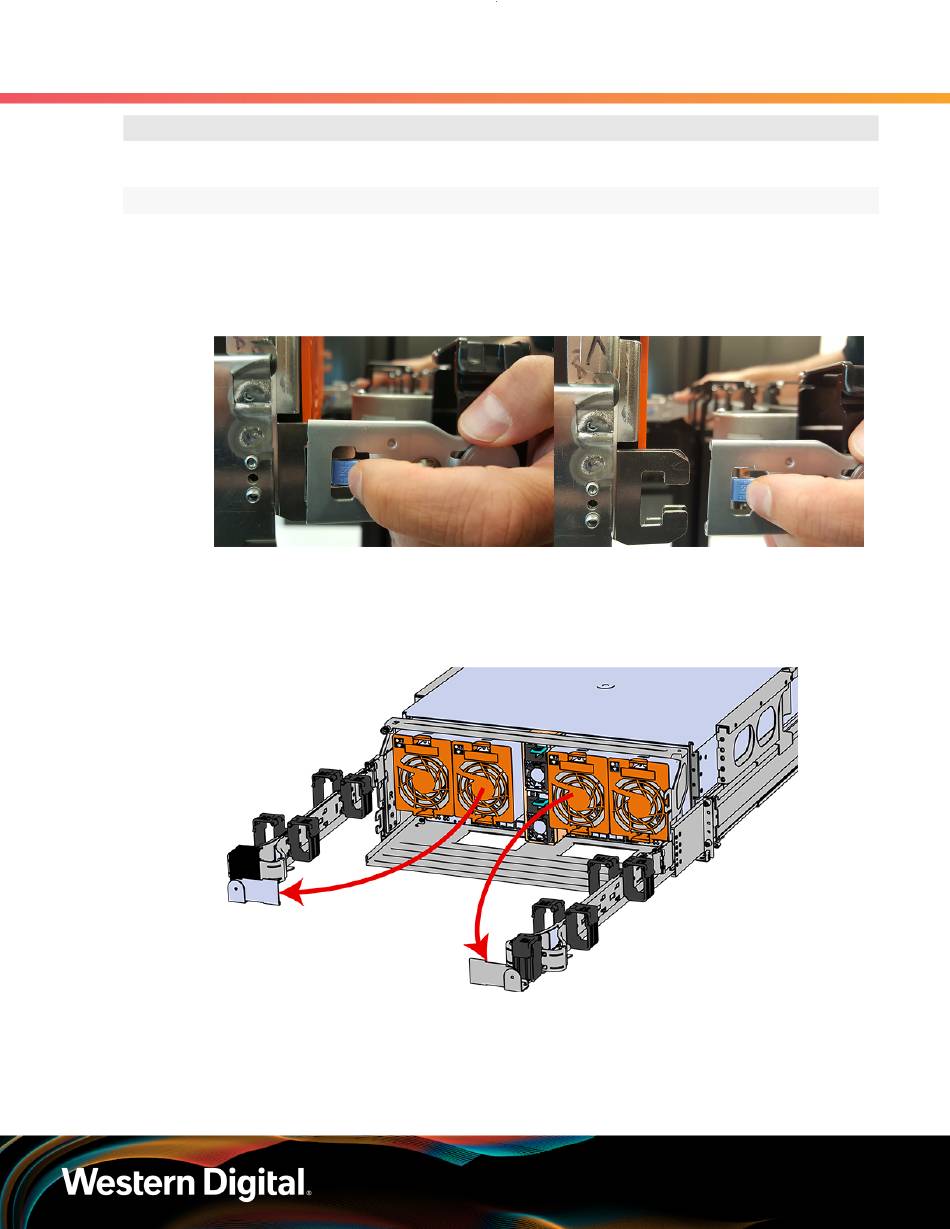

Step 1 : Place the CMA(s) into service position.
a. Unlatch the CMA(s) from the rail at the elbow connector by pressing the blue release button.
Figure 85: Unlatching a CMA Connector
b. Swing the CMA(s) away from the enclosure.
c. The arm(s) should be extended away from the enclosure as shown in the following example.
Figure 86: CMA(s) in service position (Cables not shown)
Step 2 : Disconnect the Enclosure from power.
a. Locate the redundant PSUs at the rear of the enclosure.
b. Detach the cable retention clip from both power cords.
Tool
Low-Profile M4 x 3.2mm Philips
screws (included with rail assembly)
3. Support
3.8 Rails Replacement
Required vs. Recommended
Required
Recommeded
91
