13. Appendix

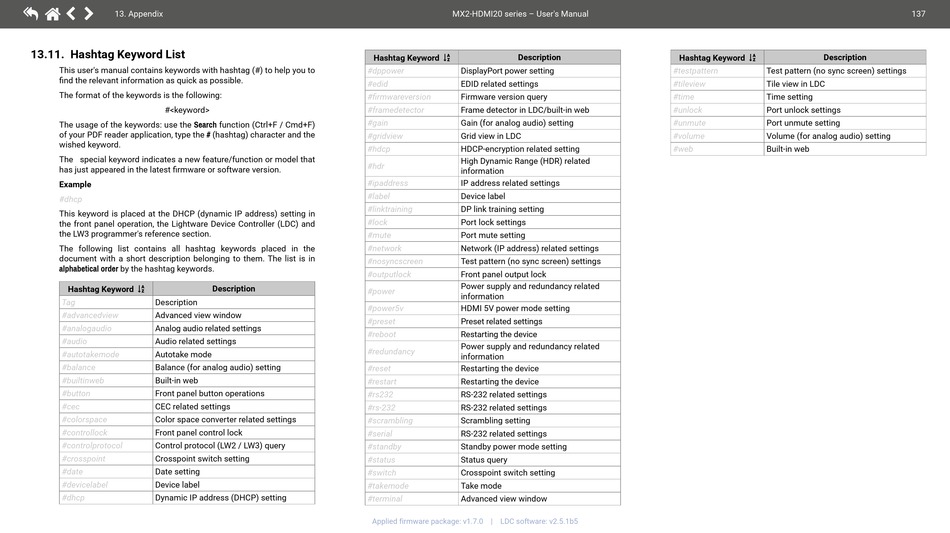

13.11. Hashtag Keyword List
This user's manual contains keywords with hashtag (#) to help you to
find the relevant information as quick as possible.
The format of the keywords is the following:
#<keyword>
The usage of the keywords: use the Search function (Ctrl+F / Cmd+F)
of your PDF reader application, type the # (hashtag) character and the
wished keyword.
The special keyword indicates a new feature/function or model that
has just appeared in the latest firmware or software version.
Example
#dhcp
This keyword is placed at the DHCP (dynamic IP address) setting in
the front panel operation, the Lightware Device Controller (LDC) and
the LW3 programmer's reference section.
The following list contains all hashtag keywords placed in the
document with a short description belonging to them. The list is in
alphabetical order by the hashtag keywords.
Hashtag Keyword 
Tag Description
#advancedview Advanced view window
#analogaudio Analog audio related settings
#audio Audio related settings
#autotakemode Autotake mode
#balance Balance (for analog audio) setting
#builtinweb Built-in web
#button Front panel button operations
#cec CEC related settings
#colorspace Color space converter related settings
#controllock Front panel control lock
#controlprotocol Control protocol (LW2 / LW3) query
#crosspoint Crosspoint switch setting
#date Date setting
#devicelabel Device label
#dhcp Dynamic IP address (DHCP) setting
Hashtag Keyword 
#dppower
#edid
#firmwareversion
#framedetector
#gain
#gridview
#hdcp
#hdr
#ipaddress
#label
#linktraining
#lock
#mute
#network
#nosyncscreen
#outputlock
Description
#power
#power5v
#preset
#reboot
#redundancy
#reset
#restart
#rs232
#rs-232
#scrambling
#serial
#standby
#status
#switch
#takemode
#terminal
Applied firmware package: v1.7.0 | LDC software: v2.5.1b5
MX2-HDMI20 series – User's Manual
Description
DisplayPort power setting
EDID related settings
Firmware version query
Frame detector in LDC/built-in web
Gain (for analog audio) setting
Grid view in LDC
HDCP-encryption related setting
High Dynamic Range (HDR) related
information
IP address related settings
Device label
DP link training setting
Port lock settings
Port mute setting
Network (IP address) related settings
Test pattern (no sync screen) settings
Front panel output lock
Power supply and redundancy related
information
HDMI 5V power mode setting
Preset related settings
Restarting the device
Power supply and redundancy related
information
Restarting the device
Restarting the device
RS-232 related settings
RS-232 related settings
Scrambling setting
RS-232 related settings
Standby power mode setting
Status query
Crosspoint switch setting
Take mode
Advanced view window
Hashtag Keyword  Description
#testpattern Test pattern (no sync screen) settings
#tileview Tile view in LDC
#time Time setting
#unlock Port unlock settings
#unmute Port unmute setting
#volume Volume (for analog audio) setting
#web Built-in web
